1.3.9.3 Module Cable
The SIC-2FXO module uses standard phone wires.
No router cables are shipped with the routers and need to be ordered separately.
1.3.10

SIC-1CE1 Interface Card

SIC card model: SIC-1CE1
1.3.10.1 Appearance of the Module and Indicators

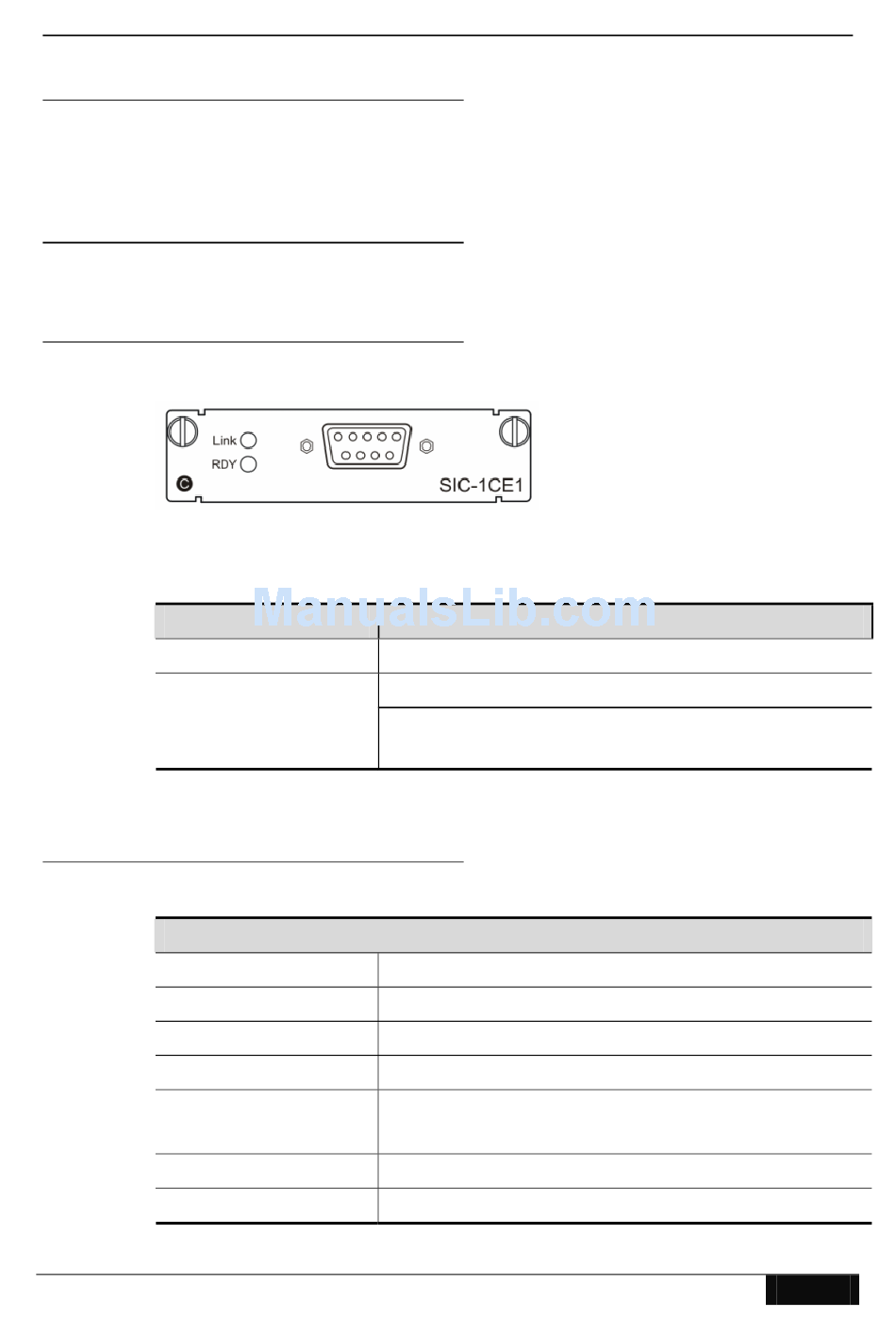

Figure 1-21 Appearance of 1-port channelized E1 card (SIC-1CE1)
The SIC-1CE1 is the Class C line card, which can be used by the slot marked with "C".
Panel indicator description:
Indicator
Link
RDY
1.3.10.2 Attributes of the SIC-1CE1 Card
The basic attributes are as below:
SIC-1CE1
Number of ports
Interface type
Cable
Standard compliance
Operating Temperature:
Humidity
EMC
Description
Solid on means the link is through, OFF not connected.
ON means the card initialization after power on is done.
OFF means the card initialization after power on is
unsuccessful.
One
DB9 female connector
Balanced cable or non-balanced cable
ITU-T G.703
Operating temperature: 0°C ~45°C
Storage temperature: -40°C ~70°C
Operating humidity: 10%~90%
EMI: GB 9254-1998 Class A
Chapter 1 Product Overview
1-43
