Chapter 3 Installing Router
3.2

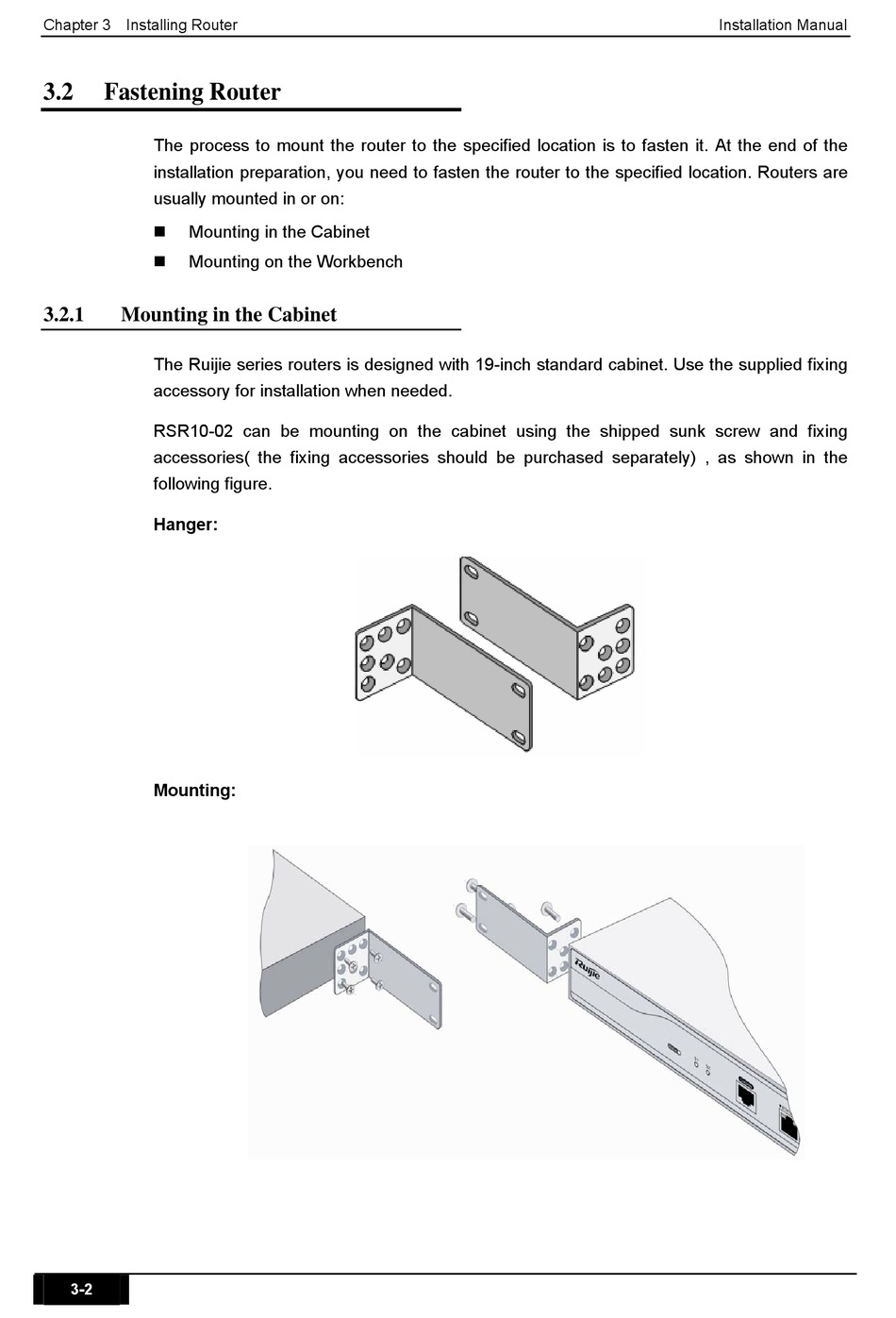

Fastening Router
The process to mount the router to the specified location is to fasten it. At the end of the
installation preparation, you need to fasten the router to the specified location. Routers are
usually mounted in or on:
Mounting in the Cabinet
Mounting on the Workbench
3.2.1
Mounting in the Cabinet
The Ruijie series routers is designed with 19-inch standard cabinet. Use the supplied fixing
accessory for installation when needed.
RSR10-02 can be mounting on the cabinet using the shipped sunk screw and fixing
accessories( the fixing accessories should be purchased separately) , as shown in the
following figure.
Hanger:
Mounting:
3-2
Installation Manual
