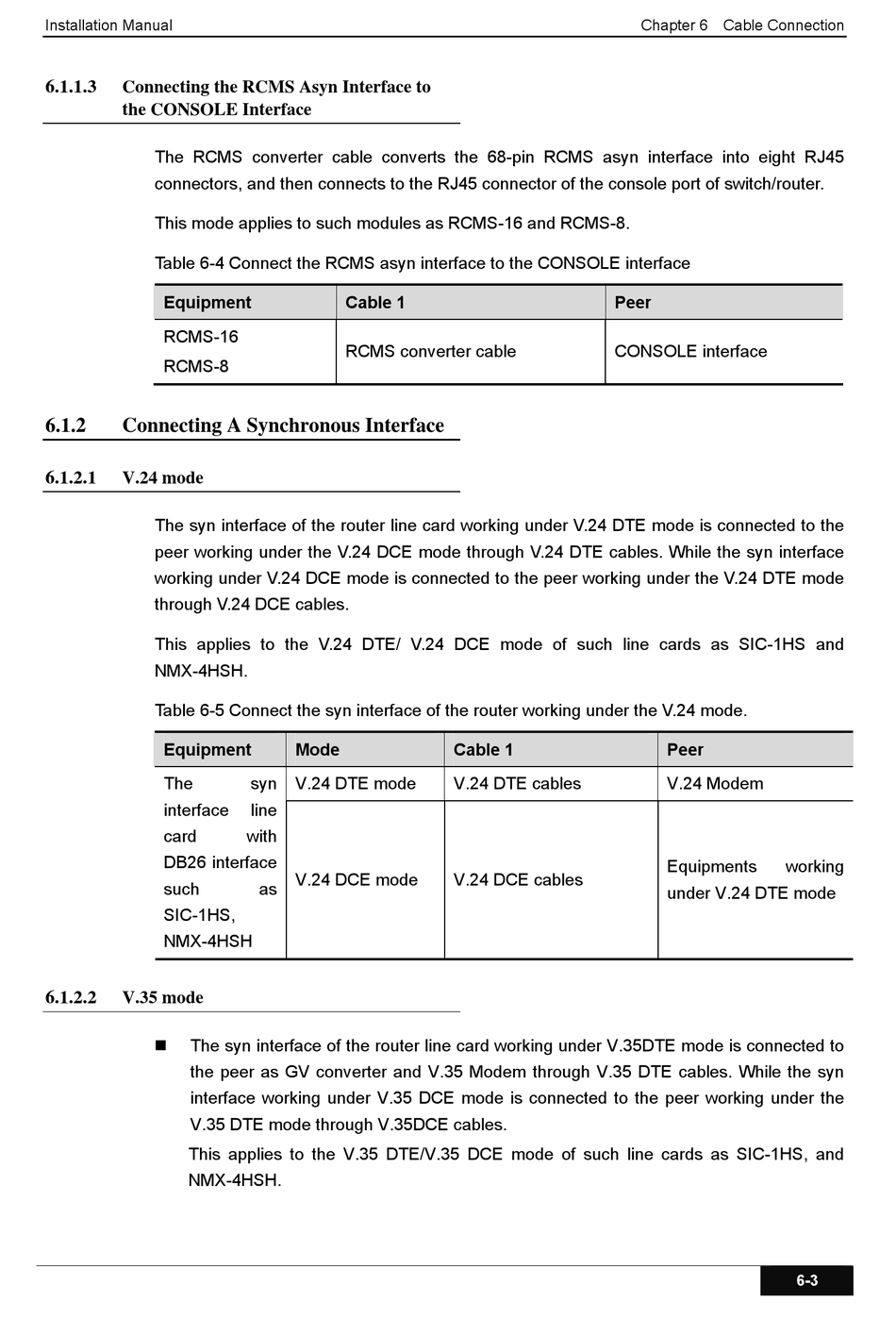

Installation Manual
6.1.1.3
Connecting the RCMS Asyn Interface to
the CONSOLE Interface
The RCMS converter cable converts the 68-pin RCMS asyn interface into eight RJ45
connectors, and then connects to the RJ45 connector of the console port of switch/router.
This mode applies to such modules as RCMS-16 and RCMS-8.
Table 6-4 Connect the RCMS asyn interface to the CONSOLE interface
Equipment
RCMS-16
RCMS-8
6.1.2
Connecting A Synchronous Interface
6.1.2.1
V.24 mode
The syn interface of the router line card working under V.24 DTE mode is connected to the
peer working under the V.24 DCE mode through V.24 DTE cables. While the syn interface
working under V.24 DCE mode is connected to the peer working under the V.24 DTE mode
through V.24 DCE cables.
This applies to the V.24 DTE/ V.24 DCE mode of such line cards as SIC-1HS and
NMX-4HSH.
Table 6-5 Connect the syn interface of the router working under the V.24 mode.
Equipment
The
interface
card
DB26 interface
such
SIC-1HS,
NMX-4HSH
6.1.2.2
V.35 mode
The syn interface of the router line card working under V.35DTE mode is connected to
the peer as GV converter and V.35 Modem through V.35 DTE cables. While the syn
interface working under V.35 DCE mode is connected to the peer working under the
V.35 DTE mode through V.35DCE cables.
This applies to the V.35 DTE/V.35 DCE mode of such line cards as SIC-1HS, and
NMX-4HSH.
Cable 1
RCMS converter cable
Mode
syn
V.24 DTE mode
line
with
V.24 DCE mode
as
Peer
CONSOLE interface
Cable 1
V.24 DTE cables
V.24 DCE cables
Chapter 6 Cable Connection
Peer
V.24 Modem
Equipments
working
under V.24 DTE mode
6-3
