Chapter 1 Product Overview

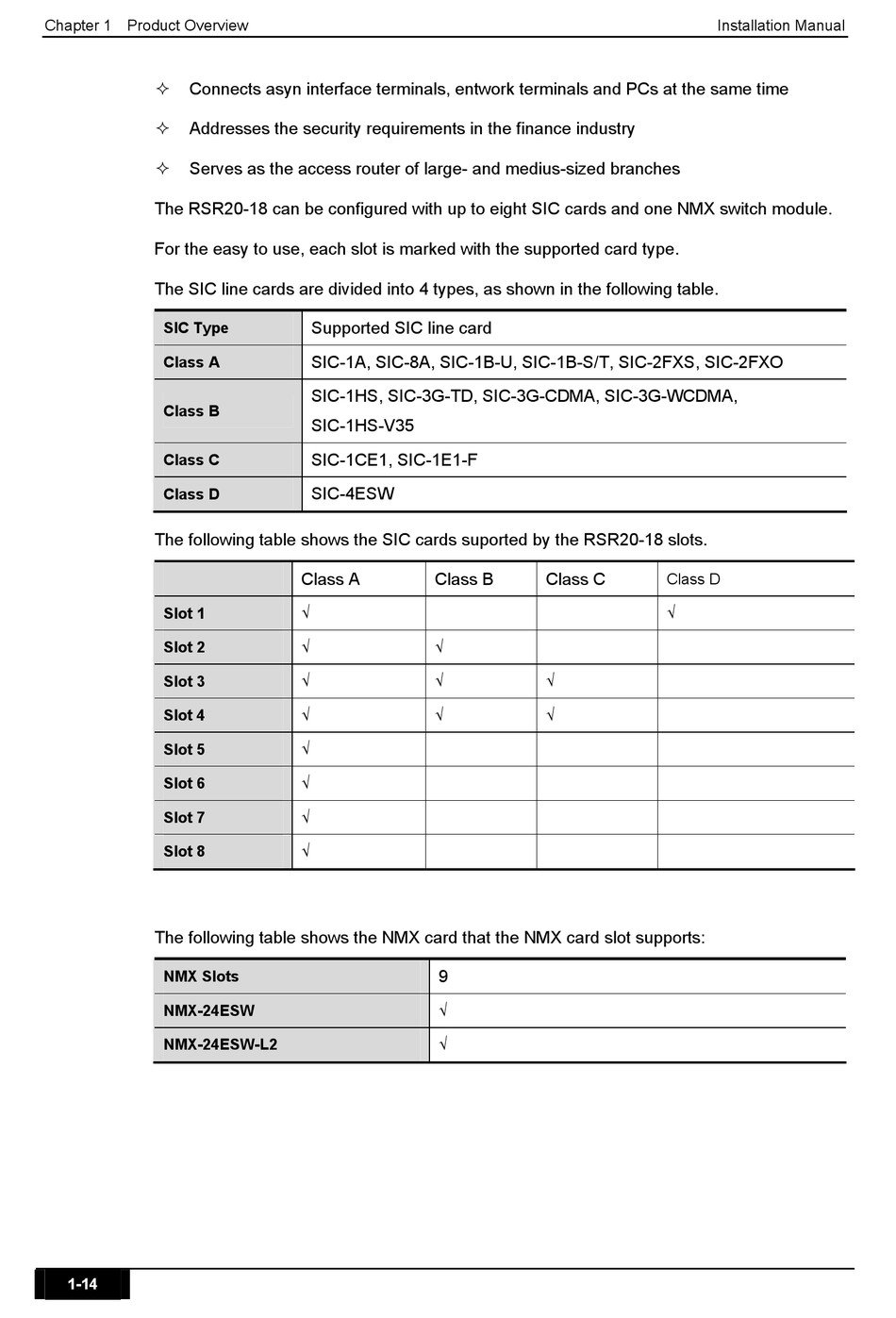

Connects asyn interface terminals, entwork terminals and PCs at the same time

 Addresses the security requirements in the finance industry
 Serves as the access router of large- and medius-sized branches
The RSR20-18 can be configured with up to eight SIC cards and one NMX switch module.
For the easy to use, each slot is marked with the supported card type.
The SIC line cards are divided into 4 types, as shown in the following table.
SIC Type
Class A
Class B
Class C
Class D
The following table shows the SIC cards suported by the RSR20-18 slots.
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Slot 7
Slot 8
The following table shows the NMX card that the NMX card slot supports:
NMX Slots
NMX-24ESW
NMX-24ESW-L2
1-14
Supported SIC line card
SIC-1A, SIC-8A, SIC-1B-U, SIC-1B-S/T, SIC-2FXS, SIC-2FXO
SIC-1HS, SIC-3G-TD, SIC-3G-CDMA, SIC-3G-WCDMA,
SIC-1HS-V35
SIC-1CE1, SIC-1E1-F
SIC-4ESW
Class A Class B
√
√ √
√ √
√ √
√
√
√
√
9
√
√
Class C
Class D
√
√
√
Installation Manual
