1.3.12.1 Appearance of the Module and Indicators

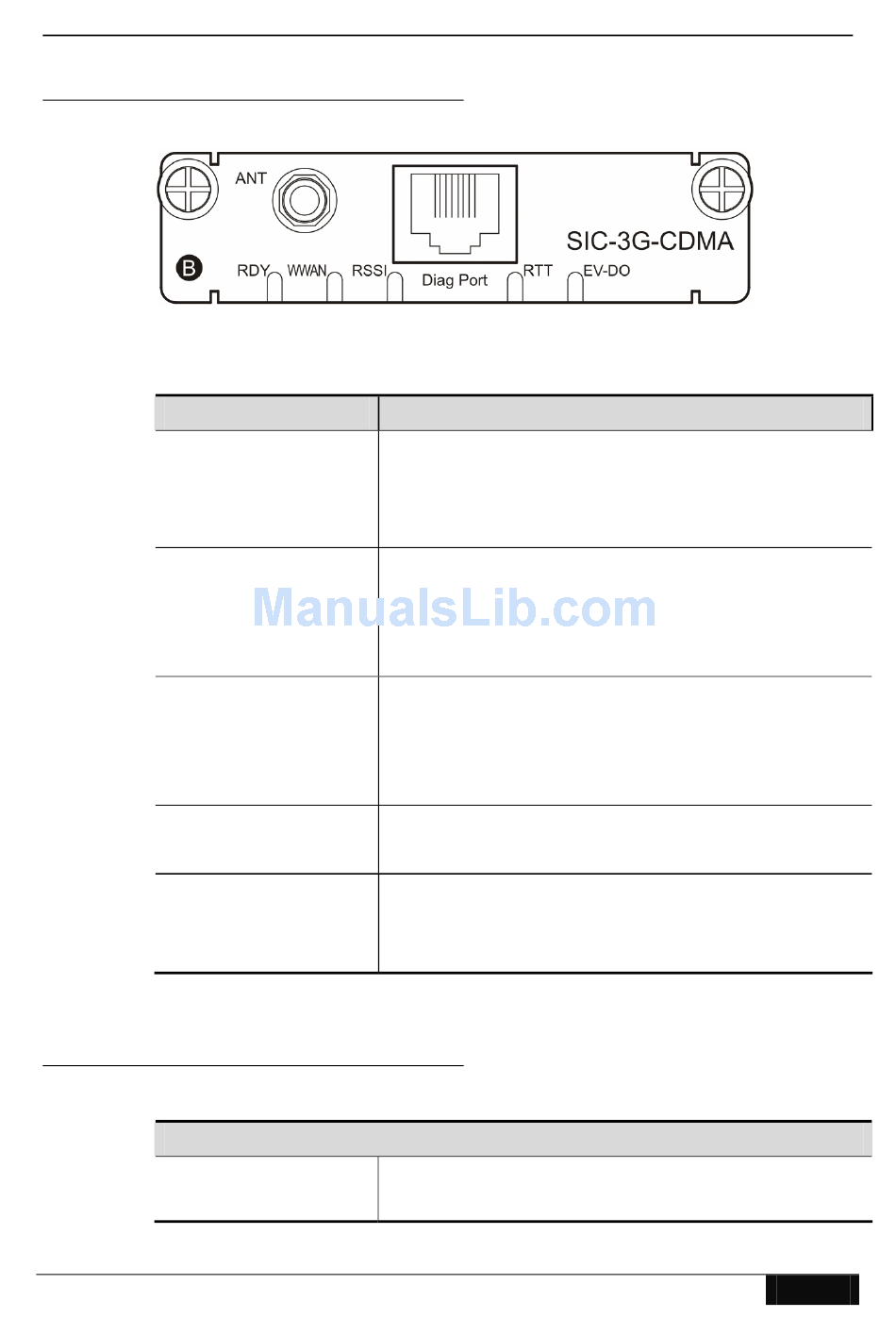

Figure: Appearance of SIC-3G-CDMA interface card
The SIC-3G-CDMA is the Class B line card, which can be used by the slot marked with "B".
Panel indicator description:
Indicator
RDY
WWAN
RSSI
RTT
EV-DO
1.3.12.2 Attributes of the SIC-3G-CDMA
The basic attributes are as below:
SIC-3G-CDMA
Number of ports
Description
Solid on means that firmware initialization of the line card is
complete.
OFF means the firmware initialization of the line card is not
complete or fails.
Solid on means the link is through.
Flashing means the data is being transmitted.
Solid on means the strong signal.
Flashing means the medium/low signal.
Off means the weak signal or no signal.
Solid on means the RTT service is effective.
Off means there is no RTT service.
Solid on means the EV-DO service is effective.
Off means there is no EV-DO service.
SMA RF: 1
RJ-45: 1
