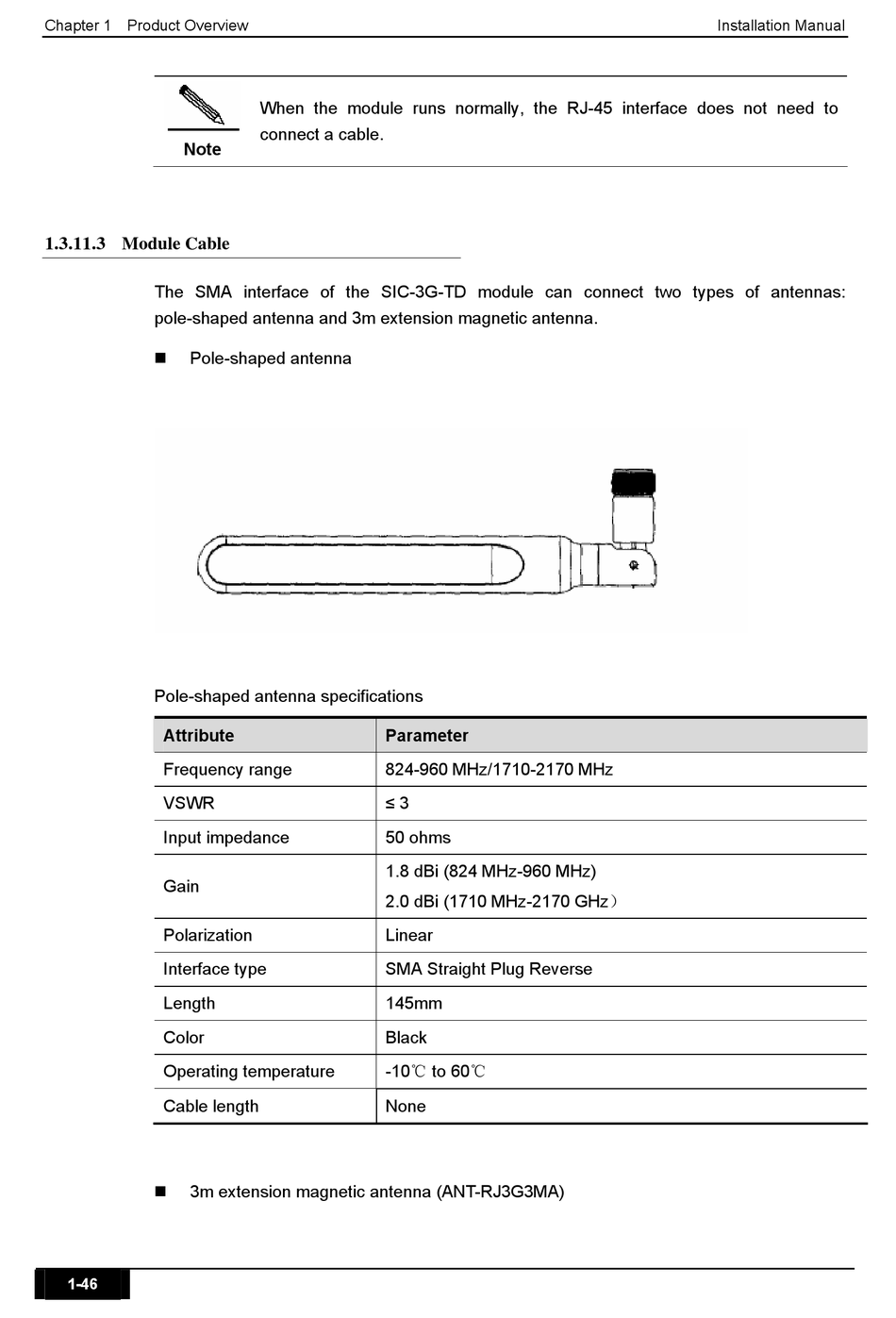

Ruijie RSR10 Series Hardware Installation Manual page 56

Chapter 1 Product Overview
Note
1.3.11.3 Module Cable
The SMA interface of the SIC-3G-TD module can connect two types of antennas:
pole-shaped antenna and 3m extension magnetic antenna.
Pole-shaped antenna

Pole-shaped antenna specifications
Attribute
Frequency range
VSWR
Input impedance
Gain
Polarization
Interface type
Length
Color
Operating temperature
Cable length
 3m extension magnetic antenna (ANT-RJ3G3MA)
1-46
When the module runs normally, the RJ-45 interface does not need to
connect a cable.
Parameter
824-960 MHz/1710-2170 MHz
≤ 3
50 ohms
1.8 dBi (824 MHz-960 MHz)
2.0 dBi (1710 MHz-2170 GHz）
Linear
SMA Straight Plug Reverse
145mm
Black
-10℃ to 60℃
None
