Ruijie RSR10 Series Hardware Installation Manual page 13

Installation Manual
 External structure
Using the standard chassis shielding electromagnetic radiation, it can be mounted on
the rack. It is highly resistant to shock, high/low temperatures, and electromagnetic
radiation, and works stably.
 Certification
Passed the test of telecom access network equipment by the MII
1.1.1.3
Indicators and Appearance

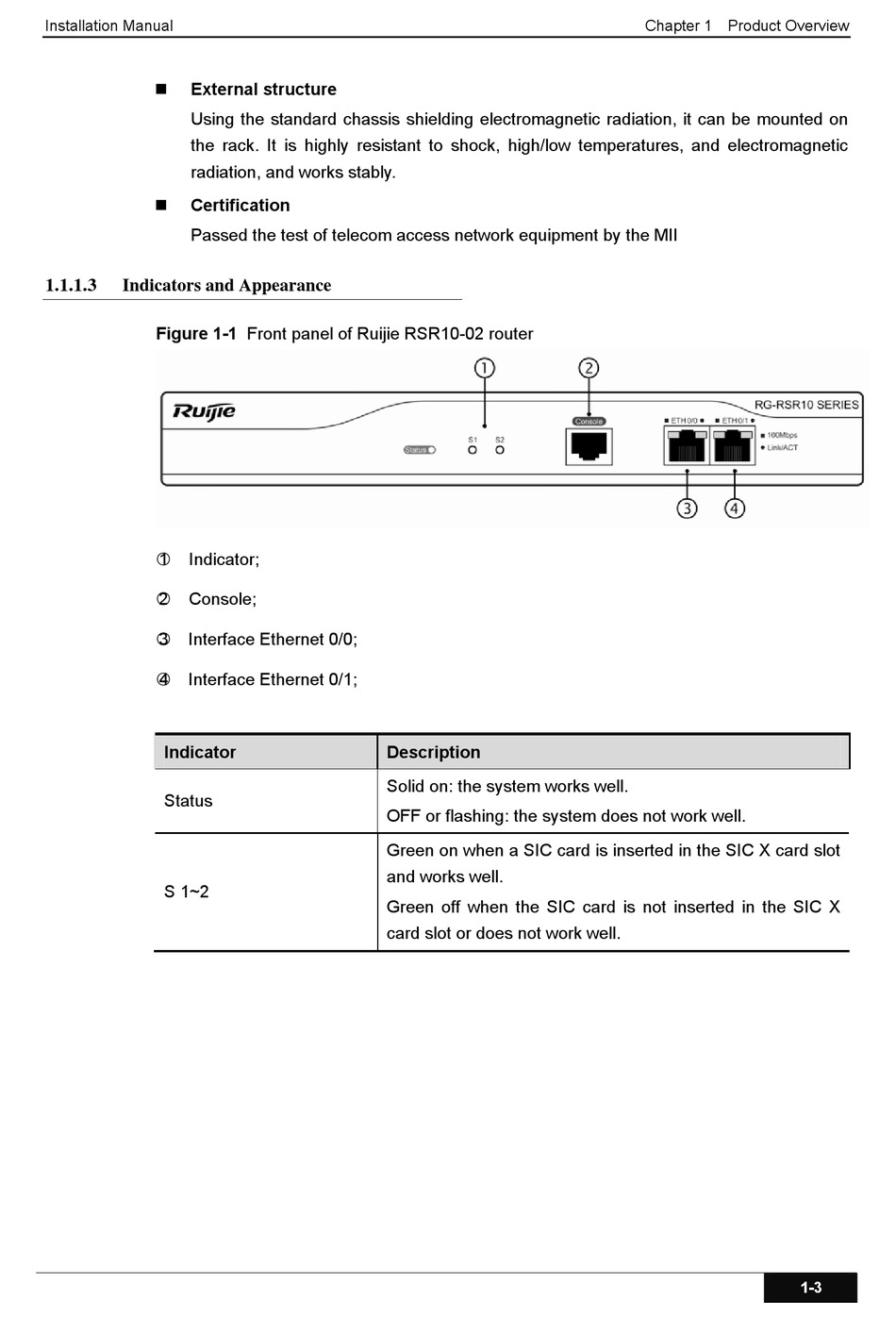

Figure 1-1 Front panel of Ruijie RSR10-02 router
○ 1 Indicator;
○ 2 Console;
○ 3 Interface Ethernet 0/0;
○ 4 Interface Ethernet 0/1;
Indicator
Status
S 1~2
Description
Solid on: the system works well.
OFF or flashing: the system does not work well.
Green on when a SIC card is inserted in the SIC X card slot
and works well.
Green off when the SIC card is not inserted in the SIC X
card slot or does not work well.
Chapter 1 Product Overview
1-3
