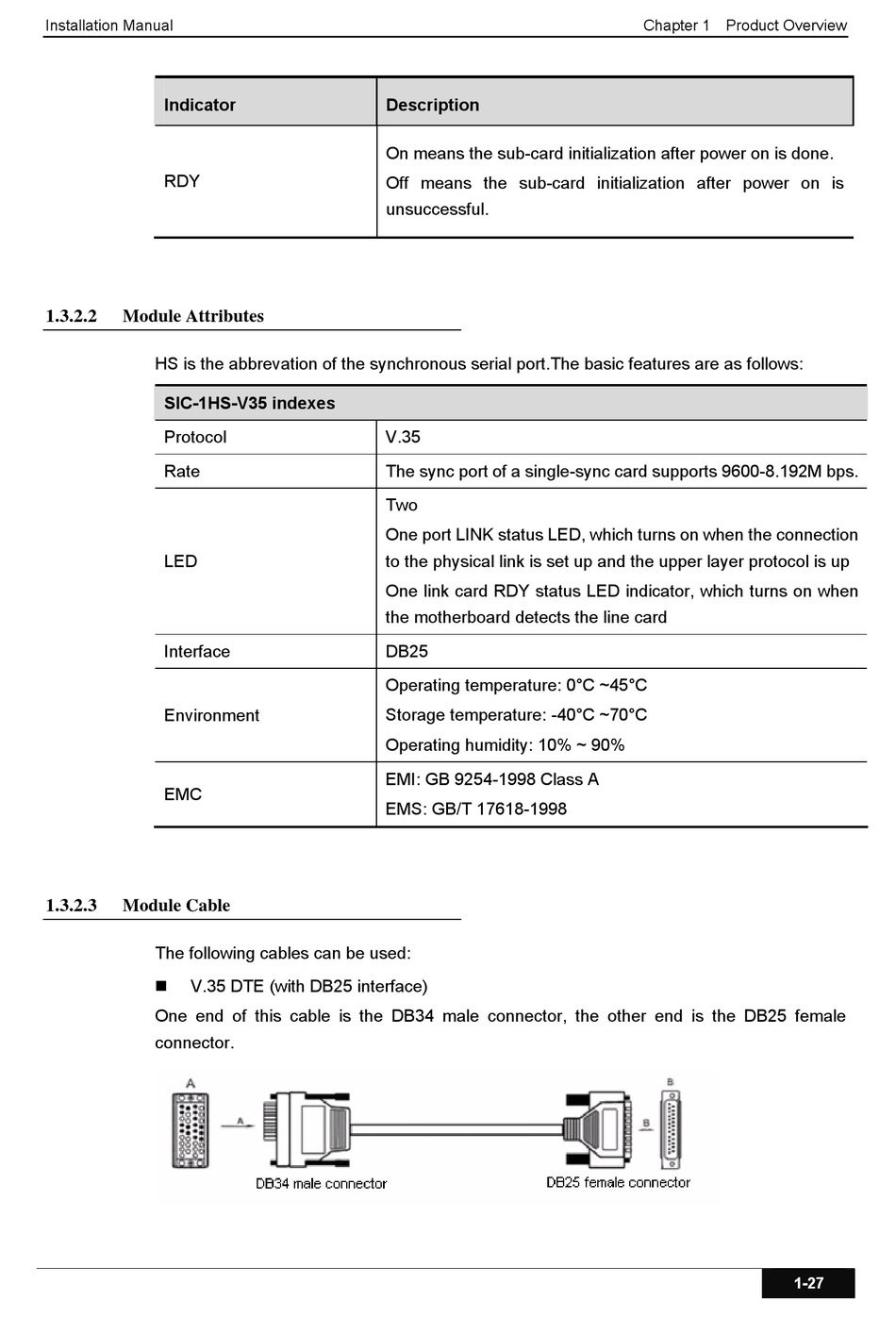

Ruijie RSR10 Series Hardware Installation Manual page 37

Installation Manual
Indicator
RDY
1.3.2.2 Module Attributes
HS is the abbrevation of the synchronous serial port.The basic features are as follows:
SIC-1HS-V35 indexes
Protocol
Rate
LED
Interface
Environment
EMC
1.3.2.3
Module Cable
The following cables can be used:
 V.35 DTE (with DB25 interface)
One end of this cable is the DB34 male connector, the other end is the DB25 female
connector.
Description
On means the sub-card initialization after power on is done.
Off means the sub-card initialization after power on is
unsuccessful.
V.35
The sync port of a single-sync card supports 9600-8.192M bps.
Two
One port LINK status LED, which turns on when the connection
to the physical link is set up and the upper layer protocol is up
One link card RDY status LED indicator, which turns on when
the motherboard detects the line card
DB25
Operating temperature: 0°C ~45°C
Storage temperature: -40°C ~70°C
Operating humidity: 10% ~ 90%
EMI: GB 9254-1998 Class A
EMS: GB/T 17618-1998
Chapter 1 Product Overview
1-27
