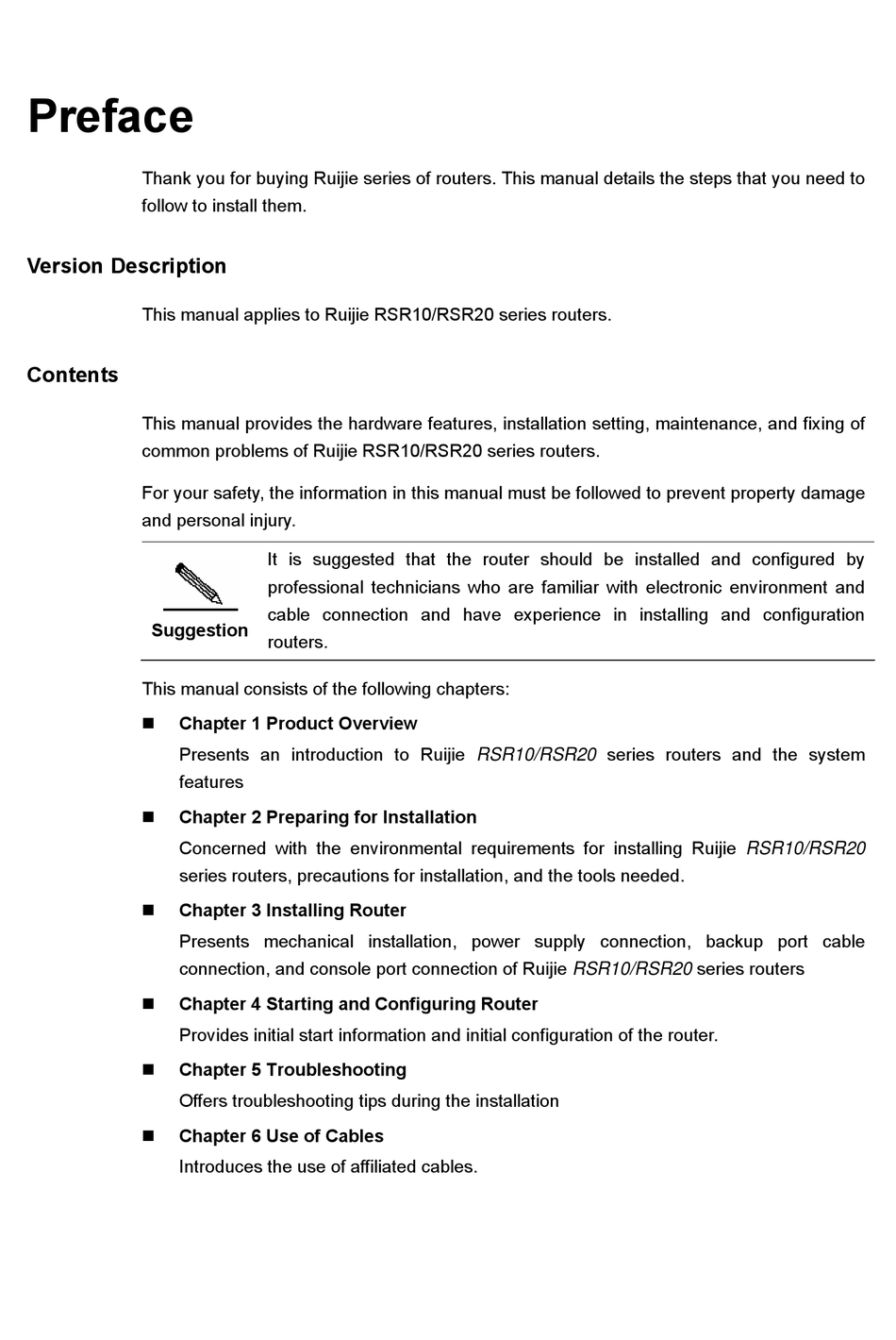

Preface
Thank you for buying Ruijie series of routers. This manual details the steps that you need to
follow to install them.
Version Description
This manual applies to Ruijie RSR10/RSR20 series routers.
Contents
This manual provides the hardware features, installation setting, maintenance, and fixing of
common problems of Ruijie RSR10/RSR20 series routers.
For your safety, the information in this manual must be followed to prevent property damage
and personal injury.
Suggestion
This manual consists of the following chapters:
 Chapter 1 Product Overview
Presents an introduction to Ruijie RSR10/RSR20 series routers and the system
features
Chapter 2 Preparing for Installation

Concerned with the environmental requirements for installing Ruijie RSR10/RSR20
series routers, precautions for installation, and the tools needed.
 Chapter 3 Installing Router
Presents mechanical installation, power supply connection, backup port cable
connection, and console port connection of Ruijie RSR10/RSR20 series routers
 Chapter 4 Starting and Configuring Router
Provides initial start information and initial configuration of the router.
 Chapter 5 Troubleshooting
Offers troubleshooting tips during the installation
Chapter 6 Use of Cables

Introduces the use of affiliated cables.
It is suggested that the router should be installed and configured by
professional technicians who are familiar with electronic environment and
cable connection and have experience in installing and configuration
routers.
