Chapter 1 Product Overview
 V.35 DTE-V.35 DCE
Both ends of this cable are DB26 male connectors
The cables are not provided along with router delivery; users need purchase them separately.
All types of cables of SIC-1HS connect to the router through DB26 interface. Pay attention to
connectors when purchasing cables. For the use of cables, see the chapter 6.
1.3.2

SIC-1HS-V35 Sync Interface Card

Product model: SIC-1HS-V35
1.3.2.1 Appearance and Indicators

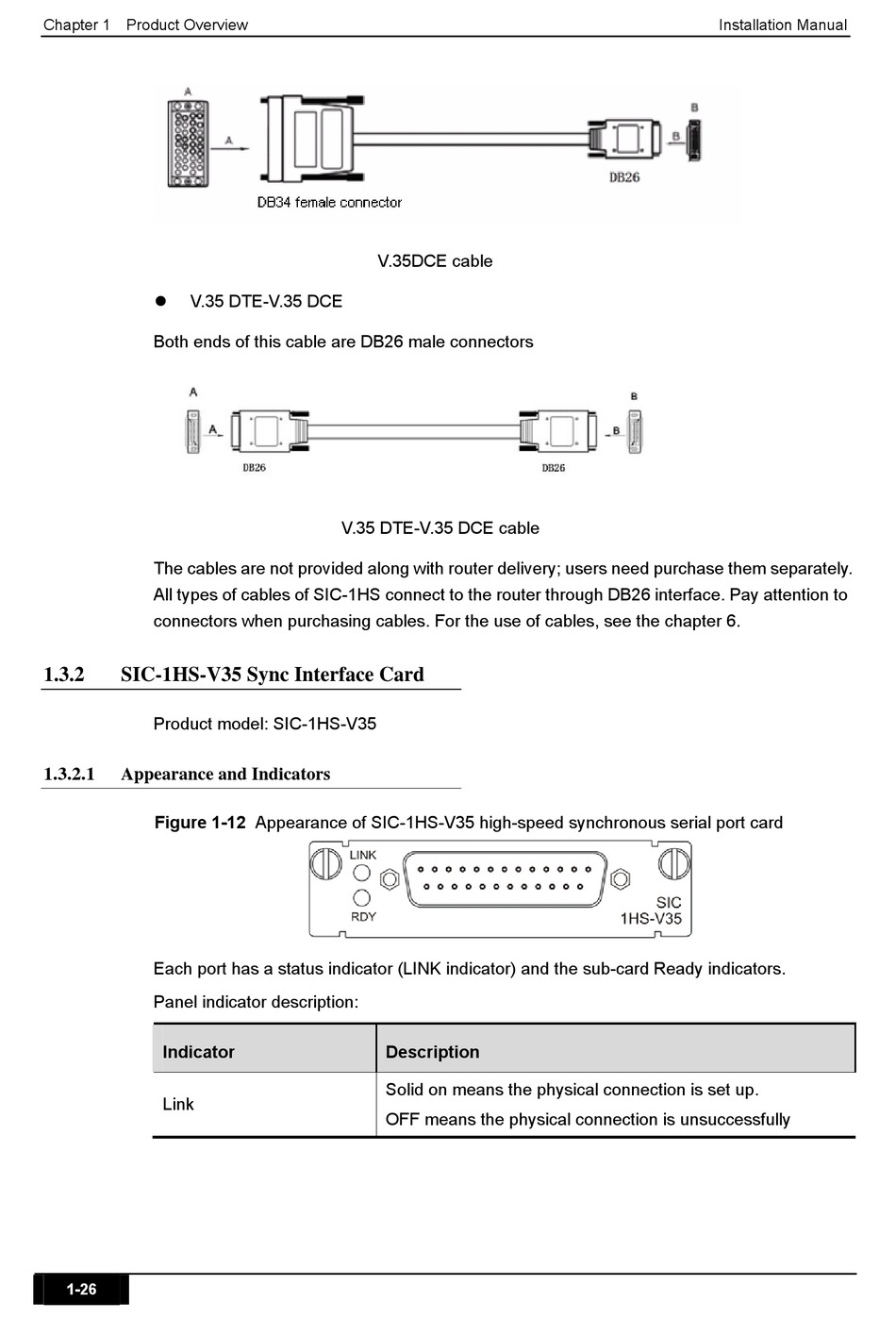

Figure 1-12 Appearance of SIC-1HS-V35 high-speed synchronous serial port card
Each port has a status indicator (LINK indicator) and the sub-card Ready indicators.
Panel indicator description:
Indicator
Link
1-26
V.35DCE cable
V.35 DTE-V.35 DCE cable
Description
Solid on means the physical connection is set up.
OFF means the physical connection is unsuccessfully
