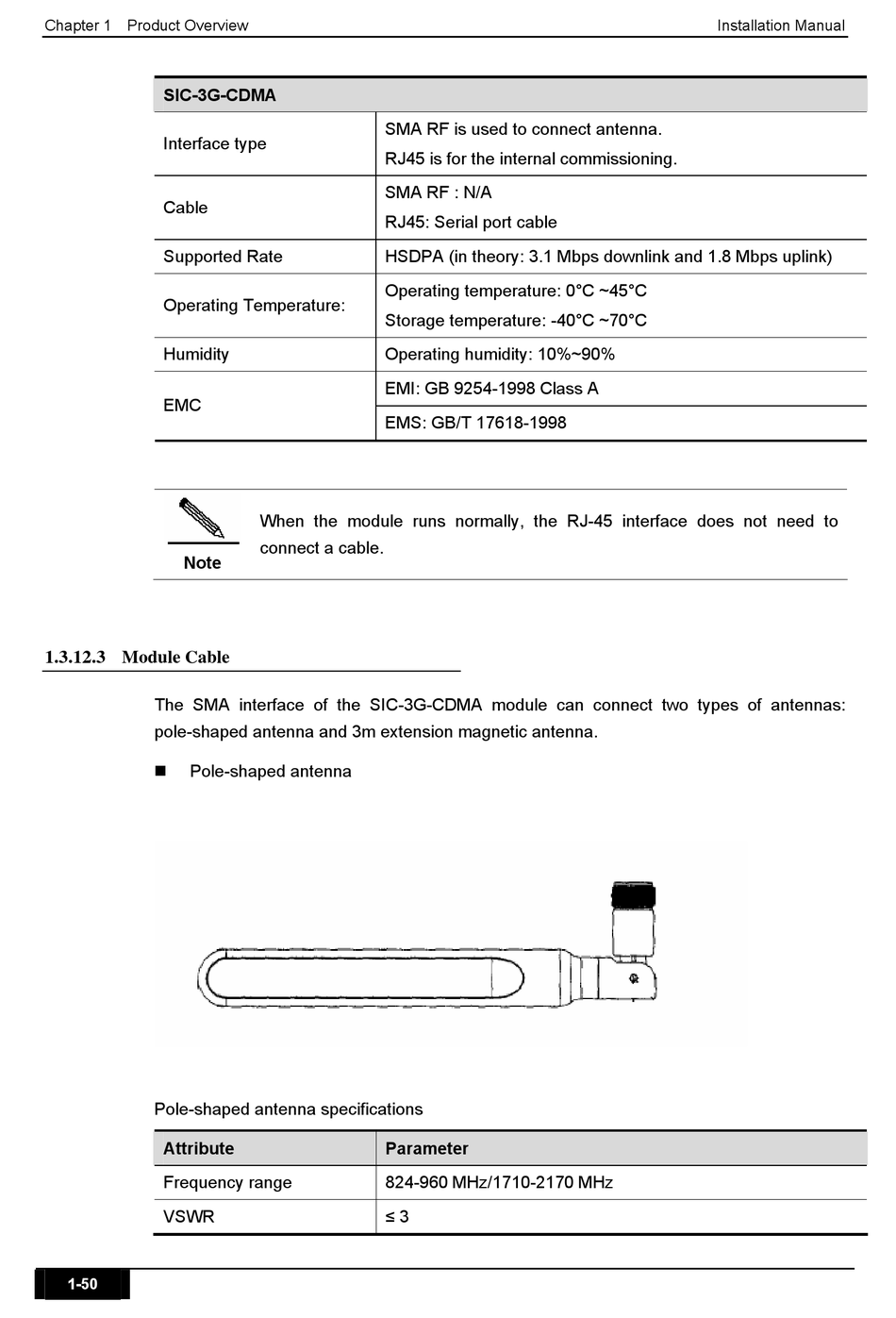

Ruijie RSR10 Series Hardware Installation Manual page 60

Chapter 1 Product Overview
SIC-3G-CDMA
Interface type
Cable
Supported Rate
Operating Temperature:
Humidity
EMC
Note
1.3.12.3 Module Cable
The SMA interface of the SIC-3G-CDMA module can connect two types of antennas:
pole-shaped antenna and 3m extension magnetic antenna.
 Pole-shaped antenna
Pole-shaped antenna specifications
Attribute
Frequency range
VSWR
1-50
SMA RF is used to connect antenna.
RJ45 is for the internal commissioning.
SMA RF : N/A
RJ45: Serial port cable
HSDPA (in theory: 3.1 Mbps downlink and 1.8 Mbps uplink)
Operating temperature: 0°C ~45°C
Storage temperature: -40°C ~70°C
Operating humidity: 10%~90%
EMI: GB 9254-1998 Class A
EMS: GB/T 17618-1998
When the module runs normally, the RJ-45 interface does not need to
connect a cable.
Parameter
824-960 MHz/1710-2170 MHz
≤ 3
