Chapter 1 Product Overview

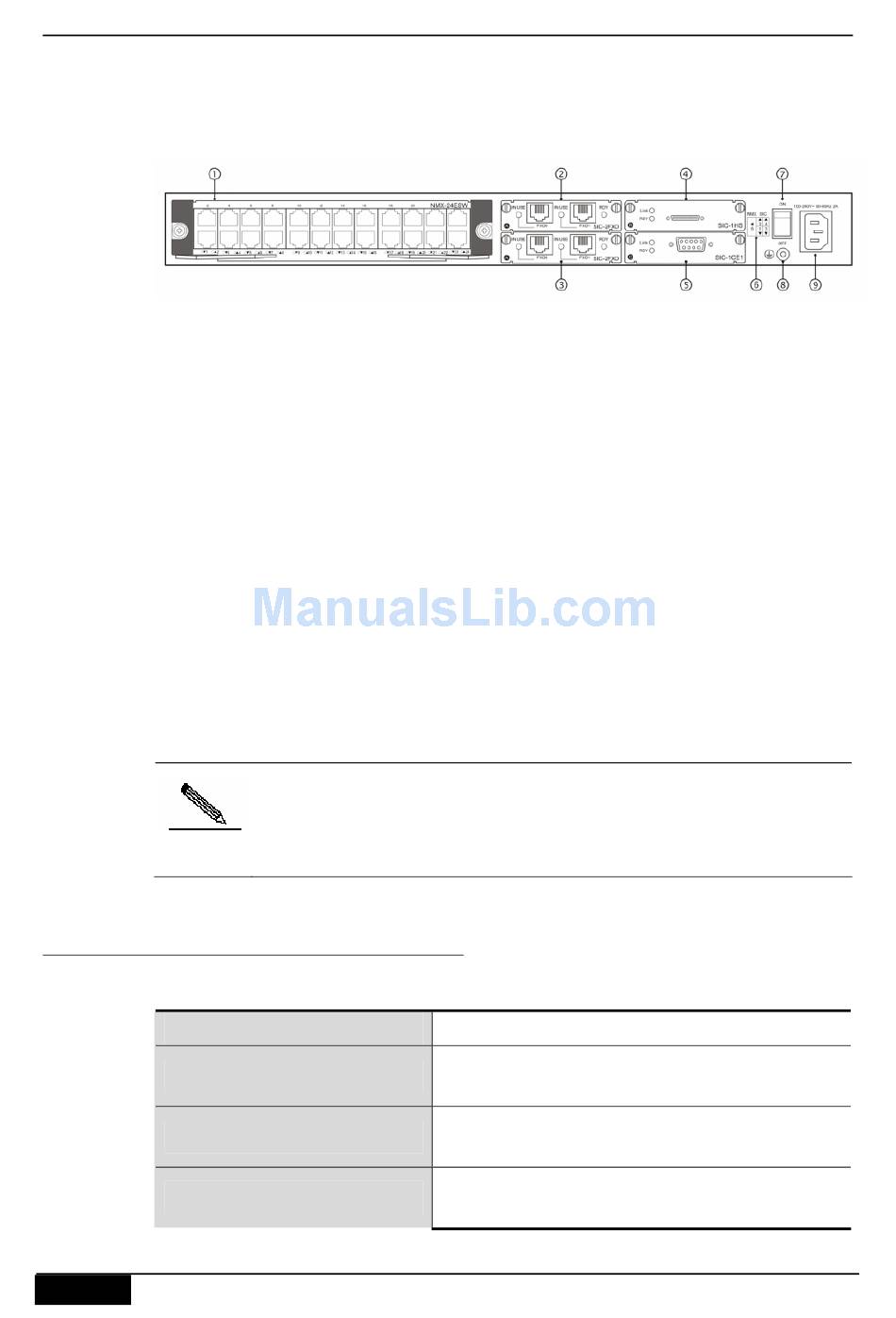

Figure 1-6 Back panel of Ruijie RSR20-14 router
Note: Each slot is marked with the supported SIC card type (A/B/C/D). For the line card
classification, see the overview section.
○ 1 NMX card slot5;
○ 2 SIC card slot2;
○ 3 SIC card slot1;
○ 4 SIC card slot4;
○ 5 SIC card slot3;
○ 6 Slot number indicator;
○ 7 Power switch;
○ 8 Enclosure ground interface;
○ 9 Input power interface;
Note
1.2.2.4 Parameters
The following table lists the feature parameters of Ruijie RSR20-14
Item
Default Configuration
SIC card slot
NMX card slot
1-12
If you cannot determine the number of the slot where the current module
resides, you can execute the show slots command in the privileged EXE
mode. The router version information includes the slot number of each
module.
RSR20-14
One Console port, one AUX port, two USB interfaces
and three 10/100M Ethernet ports
4 (In according with user's requirement, configure up
to four SIC cards)
1 (In according with user's requirement, configure up
to one NMX cards)
Installation Manual
