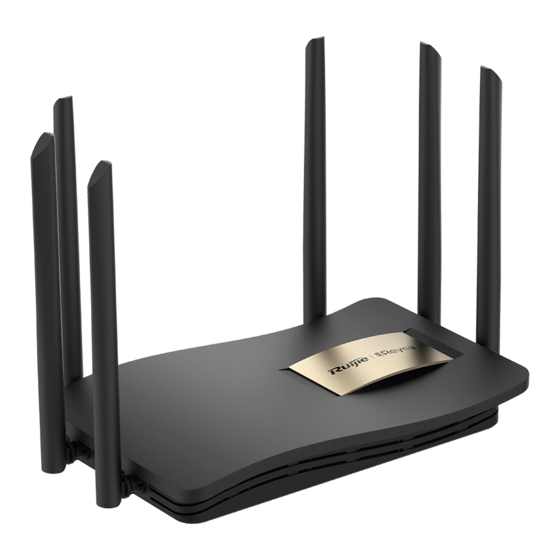

Ruijie Reyee RG-EW Series Routers
Web-Based Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reyee RG-EW Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruijie Reyee RG-EW Series

Summary of Contents for Ruijie Reyee RG-EW Series

  • Page 1 Ruijie Reyee RG-EW Series Routers Web-Based Configuration Guide...

  • Page 2: Copyright Statement

    This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inac curacies or errors.
  • Page 3 Audience This manual is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Obtaining Technical Assistance https://www.ruijienetworks.com/  Ruijie Networks Website: https://ruijienetworks.com/support  Technical Support Website: https://caseportal.ruijienetworks.com  Case Portal: https://community.ruijienetworks.com  Community: service_rj@ruijienetworks.com ...
  • Page 4 This manual uses the following conventions: Convention Description boldface font Commands, command options, and keywords are in boldface. italic font Arguments for which you supply values are in italics. Elements in square brackets are optional. { x | y | z } Alternative keywords are grouped in braces and separated by vertical bars.
  • Page 5 Configuration Guide Overview 1 Overview eWeb is a Web-based network management system that manages or configures devices. You can access eWeb via browsers such as Google Chrome. Web-based management involves a Web server and a Web client. The Web server is integrated in a device, and is used to receive and process requests from the client, and return processing results to the client.

  • Page 6: Configuration Guide

    Configuration Guide Configuration Guide 2 Configuration Guide 2.1 Preparation Scenario As shown in the figure below, an administrator can access the device from a browser and configure the device through the eWeb management system. Figure 2-1-1 Data Exchange Principle Deliver or request commands through AJAX.

  • Page 7: Welcome Page

    Configuration Guide Configuration Guide  The device is configured with a management IP address (Default: 192.168.110.1). To log into the eWeb management system, open the Google Chrome browser, and enter http://ruiyi.cn into the address bar, and press Enter. igure 2-1-2 Login Page Enter the password and click Login.

  • Page 8: Network Status

    Configuration Guide Configuration Guide 2.2.2 Network Status The page displays device count. Figure 2-2-2 Network Status...
  • Page 9 Configuration Guide Configuration Guide Network Status If the device fails to access the network, click Start Setup, and you will go to the Internet page. If the device has accessed the network, click Start Setup, and you will go to the WiFi Settings page.
  • Page 10 Configuration Guide Configuration Guide If you select PPPoE, please enter the PPPoE account provided by the ISP. Figure 2-2-4 PPPoE...
  • Page 11 Configuration Guide Configuration Guide 2.2.4 WiFi Settings Configure the SSID, WiFi password and management password and Click Deliver Setup. Figure 2-2-5 WiFi Settings...
  • Page 12 Configuration Guide Configuration Guide 2.2.5 Finish After the configuration is delivered, click Finish to enter the homepage. 2.3 GUI 2.3.1 Phone-Based GUI The system switches between the phone-based GUI and PC-based GUI according to the screen width and browser type. The phone-based GUI is more concise.
  • Page 13 Configuration Guide Configuration Guide...
  • Page 14 Configuration Guide Configuration Guide...
  • Page 15 Configuration Guide Configuration Guide...
  • Page 16 Configuration Guide Configuration Guide 2.3.2 PC-Based GUI Click Pro in the upper right corner of phone-based GUI to switch over to the PC-based GUI. The PC-based GUI provides more configuration items. For details, see eWeb Configuration. Figure 2-3-2 PC-Based GUI...
  • Page 17 Configuration Guide Configuration Guide...
  • Page 18 Configuration Guide eWeb Configuration 3 eWeb Configuration This chapter introduces the features on the PC-based GUI. 3.1 Overview The Overview page displays the device details, WiFi and interface details. Figure 3-1 Overview 3.2 Clients The Clients module allows you to view online clients and manage blocked time. Figure 3-2-1 Online Clients...
  • Page 19 Configuration Guide eWeb Configuration Figure 3-2-2 Blocked Time Management Figure 3-2-3 Add Rule...
  • Page 20 Configuration Guide eWeb Configuration You can convert a dynamic IP address to a static IP address by clicking Unbinded. In the displayed dialog box, configure settings and click OK. Figure 3-2-4 Convert Dynamic IP Address to Static IP Address Figure 3-2-5 Confirm Conversion...
  • Page 21 Configuration Guide eWeb Configuration 3.3 Internet The Internet module allows you to select an IP assignment mode. Figure 3-3-1 Internet 3.4 WiFi The WiFi module allows you to configure WiFi settings. Figure 3-4-1 WiFi Settings...
  • Page 22 Configuration Guide eWeb Configuration 3.5 More 3.5.1 Basics 3.5.1.1 WAN The WAN module allows you to configure WAN settings. There are three IP assignment modes available: Static IP Address, DHCP and PPPoE. Figure 3-5-1 WAN Settings...

  • Page 23: Lan Settings

    Configuration Guide eWeb Configuration 3.5.1.2 LAN The LAN module contains LAN Settings, DHCP Clients, Static IP Addresses and DNS Proxy. 3.5.1.2.1 LAN Settings The LAN module allows you to set the IP address of the LAN port and DHCP status. Figure 3-5-2 LAN Settings Click Edit in the Action column to add a VLAN.
  • Page 24 Configuration Guide eWeb Configuration Figure 3-5-3 Edit You can click in the upper right corner to see description about each configuration item. 3.5.1.2.2 DHCP Clients The DHCP Clients page displays DHCP clients. Figure 3-5-4 DHCP Clients...
  • Page 25 Configuration Guide eWeb Configuration Click Convert to Static IP in the Action column to convert a DHCP-assigned IP address to a static IP address. Alternatively, select DHCP-assigned IP addresses and click Batch Convert to convert more than one IP address. 3.5.1.2.3 Static IP Addresses The Static IP Addresses module allows you to add, delete and edit static IP addresses.

  • Page 26: Dns Proxy

    Configuration Guide eWeb Configuration Click Add to add a static IP address manually. In the displayed dialog box, configure settings and click OK. Figure 3-5-6 Add Static IP Address 3.5.1.2.4 DNS Proxy The DNS Proxy module allows you to configure DNS proxy settings. Figure 3-5-7 DNS Proxy...

  • Page 27: Ipv6 Address

    Configuration Guide eWeb Configuration 3.5.1.3 IPv6 Address The WAN Settings module allows you to configure WANv6 settings. Figure 3-5-8 WAN Settings The LAN Settings module allows you to configure LANv6 settings. Figure 3-5-9 LAN Settings...
  • Page 28 Configuration Guide eWeb Configuration The DHCPv6 Clients module allows you to configure DHCPv6 clients. Figure 3-5-10 DHCPv6 Clients 3.5.1.4 Repeater The Repeater module displays the current mode and the other available modes. Figure 3-5-11 Router Mode...
  • Page 29 Configuration Guide eWeb Configuration Switch the device over to the wired repeater mode. Figure 3-5-12 Wired Repeater Switch the device over to the wireless repeater mode. Figure 3-5-13 Wireless Repeater...
  • Page 30 Configuration Guide eWeb Configuration 3.5.2 Wireless 3.5.2.1 WiFi 3.5.2.1.1 WiFi Settings The WiFi Settings module allows you to configure the primary WiFi. Figure 3-5-·14 WiFi Settings...

  • Page 31: Guest Wifi

    Configuration Guide eWeb Configuration 3.5.2.1.2 Guest WiFi The guest WiFi is disabled by default. You can enable guest WiFi on this page or homepage. AP isolation is enabled by default and cannot be edited. Set a schedule, and the guest WiFi will be enabled only during this period time. When the time expires, the guest WiFi will be disabled.
  • Page 32 Configuration Guide eWeb Configuration Figure 3-5-16 Enable Guest WiFi...
  • Page 33 Configuration Guide eWeb Configuration 3.5.2.1.3 Smart WiFi The Smart WiFi module allows to configure the smart WiFi. Figure 3-5-17 Smart WiFi 3.5.2.1.4 Healthy Mode The Healthy Mode module allows you to enable health mode and set a schedule. Figure 3-5-18 Healthy Mode...

  • Page 34: Blocked Clients

    Configuration Guide eWeb Configuration 3.5.2.2 Blocked Clients The Blocked Clients module allows you to add, edit or delete blocked clients. Click Delete in the Action column to delete a blocked client. Alternatively, select target clients and click Delete Selected to delete more than one blocked clients.

  • Page 35: Radio Frequency

    Configuration Guide eWeb Configuration 3.5.2.3 Radio Frequency The Radio Frequency module allows you to configure channel width, transmit power and roaming sensitivity. Figure 3-5-21 Radio Frequency 3.5.3 Repeater The Repeater module allows you to group, upgrade and delete repeaters. Figure 3-5-22 Repeater List...
  • Page 36 Configuration Guide eWeb Configuration Click Advanced Search, and you can search APs by SN, model, software version, MAC address and status. Figure 3-5-23 Advanced Search Click List Filter, and you can select columns to be displayed in the list. Figure 3-5-24 List Filter...
  • Page 37 Configuration Guide eWeb Configuration Select the target devices and click Batch Action. The following actions are available: Figure 3-5-25 Batch Action Upgrade Device: If there is a new version available, you can upgrade the devicess in batches. Delete Device: You can delete the APs in batches. 3.5.4 Security 3.5.4.1 ARP List The ARP List page displays ARP entries.

  • Page 38: Mac Binding

    Configuration Guide eWeb Configuration Click Bind in the Action column to bind an IP address with a MAC address. Alternatively, select ARP entries and click Batch Bind to bind more than one IP address. You can click MAC Binding to view static ARP entries. 3.5.4.2 MAC Binding The MAC Binding module allows you to add, delete and edit IP-MAC binding entries.
  • Page 39 Configuration Guide eWeb Configuration Click Add to add an IP-MAC binding. In the displayed dialog box, enter or select an IP address and a MAC address and click Figure 3-5-28 Add IP-MAC Binding Click Delete in the Action column. The message "Are you sure you want to delete the entry?” is displayed. In the displayed dialog box, click OK.

  • Page 40: Flow Control

    Configuration Guide eWeb Configuration 3.5.5 Advanced 3.5.5.1 Flow Control 3.5.5.1.1 Smart Flow Control The Smart Flow Control module allows you to configure smart flow control. Figure 3-5-29 Smart Flow Control Figure 3-5-30 Enable Smart Flow Control...
  • Page 41 Configuration Guide eWeb Configuration If there is more than one WAN port, WAN Bandwidth settings of each port will be displayed accordingly. 3.5.5.1.2 Custom Policy The Custom Policy module allows you to add, delete and edit custom flow control policies. Figure 3-5-31 Custom Flow Control Policy Click Add to add a custom flow control policy.

  • Page 42: Port Mapping

    Configuration Guide eWeb Configuration 3.5.5.2 Port Mapping 3.5.5.2.1 Port Mapping The Port Mapping module allows you to add, delete and edit port mapping policies. Figure 3-5-33 Port Mapping List...
  • Page 43 Configuration Guide eWeb Configuration Click Add to add a port mapping policy. In the displayed dialog box, configure settings and click OK. Figure 3-5-34 Add Port Mapping Policy...
  • Page 44 Configuration Guide eWeb Configuration 3.5.5.2.2 NAT-DMZ The NAT-DMZ module allows you to add, delete and edit NAT-DMZ rules. Figure 3-5-35 NAT-DMZ Rule List...
  • Page 45 Configuration Guide eWeb Configuration Click Add to add a NAT-DMZ rule. In the displayed dialog box, configure settings and click OK. Figure 3-5-36 Add NAT-DMZ Rule...

  • Page 46: Dynamic Dns

    Configuration Guide eWeb Configuration 3.5.5.3 Dynamic DNS 3.5.5.3.1 Peanut Shell NAT It is recommended to use WeChat or Peanut Shell to scan the QR code. Figure 3-5-37 Peanut Shell NAT 3.5.5.3.2 Dynamic DNS It is recommended to use Peanut Shell for NAT, including TCP, UDP, HTTP and HTTPS mapping. Figure 3-5-38 Dynamic DNS...

  • Page 47: Upnp Settings

    Configuration Guide eWeb Configuration 3.5.5.3.3 No-IP DNS Figure 3-5-39 No-IP DNS 3.5.5.4 UPnP Settings The UPnP Settings module allows you to enable UPnP and view UPnP settings. Figure 3-5-40 UPnP Settings...

  • Page 48: Local Dns

    Configuration Guide eWeb Configuration 3.5.5.5 Local DNS The Local DNS module allows you to configure a local DNS server. Figure 3-5-41 Local DNS 3.5.5.6 Hardware Acceleration The Hardware Acceleration module allows you to enable hardware accelerattion to improve network speed. Figure 3-5-42 Hardware Acceleration...
  • Page 49 Configuration Guide eWeb Configuration 3.5.5.7 Other Settings Figure 3-5-43 Other Settings 3.5.6 Diagnostics 3.5.6.1 Network Check Figure 3-5-44 Network Check...
  • Page 50 Configuration Guide eWeb Configuration Click Start, and click OK in the confirmation box. After the test finishes, the result will be displayed. Figure 3-5-45 Result...
  • Page 51 Configuration Guide eWeb Configuration If any problem occurs, the result will be displayed as follows: Figure 3-5-46 Issue & Advice...
  • Page 52 Configuration Guide eWeb Configuration Please fix the problem by taking the suggested action. 3.5.6.2 Alarms The Alarms module allows you to view and manage alarms in the network.
  • Page 53 Configuration Guide eWeb Configuration Figure 3-5-47 Alarms Click Unfollow in the Action column to unfollow an alarm. In the confirmation box, click OK. Figure 3-5-48 Unfollow Alarm Click View Unfollowed Alarm, and you can view and follow the alarm again. Figure 3-5-49 Re-follow Alarm...

  • Page 54: Network Tools

    Configuration Guide eWeb Configuration 3.5.6.3 Network Tools The Network Tools module provides the following network tools to detect the network status: Ping, Traceroute, and DNS Lookup. Figure 3-5-50 Ping Test and Result...
  • Page 55 Configuration Guide eWeb Configuration Figure 3-5-51 Traceroute Test and Result Figure 3-5-52 DNS Lookup Test and Result...

  • Page 56: Packet Capture

    Configuration Guide eWeb Configuration 3.5.6.4 Packet Capture The Packet Capture module allows you to perform packet capture and download the result for troubleshooting. Figure 3-5-53 Packet Capture...
  • Page 57 Configuration Guide eWeb Configuration Specify an IP address and click Start. After a few seconds, click Stop. Figure 3-5-54 Start Packet Capture...

  • Page 58: System Time

    Configuration Guide eWeb Configuration Click to download the packet capture result in the PCAP format. 3.5.7 System 3.5.7.1 System Time The System Time module allows you to set the system time. The system time is synchronized with the NTP server by default.

  • Page 59: Login Password

    Configuration Guide eWeb Configuration 3.5.7.2 Login The Login module contains Login Password and Session Timeout settings. 3.5.7.2.1 Login Password The Login Password module allows you to set the device's login password. You need to log into the system again after changing the password.
  • Page 60 Configuration Guide eWeb Configuration 3.5.7.3 Management 3.5.7.3.1 Backup & Import The Backup & Import module allows you to import a configuration file and apply the imported settings. It also allows exporting the configuration file to generate a backup. Figure 3-5-59 Backup & Import 3.5.7.3.2 Reset The Reset module allows you to reset the device to factory settings.
  • Page 61 Configuration Guide eWeb Configuration Click OK to restore all default values. This function is recommended when the network configuration is incorrect or the network environment is changed. 3.5.7.4 Upgrade Both online upgrade and local upgrade are available 3.5.7.4.1 Online Upgrade Click Upgrade Now.

  • Page 62: Local Upgrade

    Configuration Guide eWeb Configuration 3.5.7.4.2 Local Upgrade Click Browse to select an upgrade package, and click Upload. After uploading and checking the package, the device displays the upgrade package information and a prompt asking for upgrade confirmation. Click OK to start the upgrade. Figure 3-5-64 Local Upgrade 3.5.7.5 LED The LED module allows you to enable LED.

  • Page 63: Scheduled Reboot

    Configuration Guide eWeb Configuration 3.5.7.6.1 Reboot The Reboot module allows you to reboot the device immediately. Figure 3-5-66 Reboot Click Reboot, and click OK in the confirmation box. The device is rebooted and you need to log into the eWeb management system again after the reboot.
  • Page 64 Configuration Guide FAQs 4 FAQs Q1: I failed to log into the eWeb management system. What can I do? Perform the following steps: (1) Check that the network cable is properly connected to the LAN port of the device and the corresponding LED indicator blinks or is steady on.
