Chapter 1 Product Overview
1.3.3.3
Module Cable
The cables of the SIC-1B-U module are standard telephone cables.
The cables of the SIC-1B-S/T module are standard ISDN S/T cables, or RJ45-RJ45
straight-through cables.
No router cables are shipped with the routers and need to be ordered separately.
1.3.4

SIC-1E1- F Interface Card

SIC card model: SIC-1E1-F
1.3.4.1
Appearance of the Module and Indicators

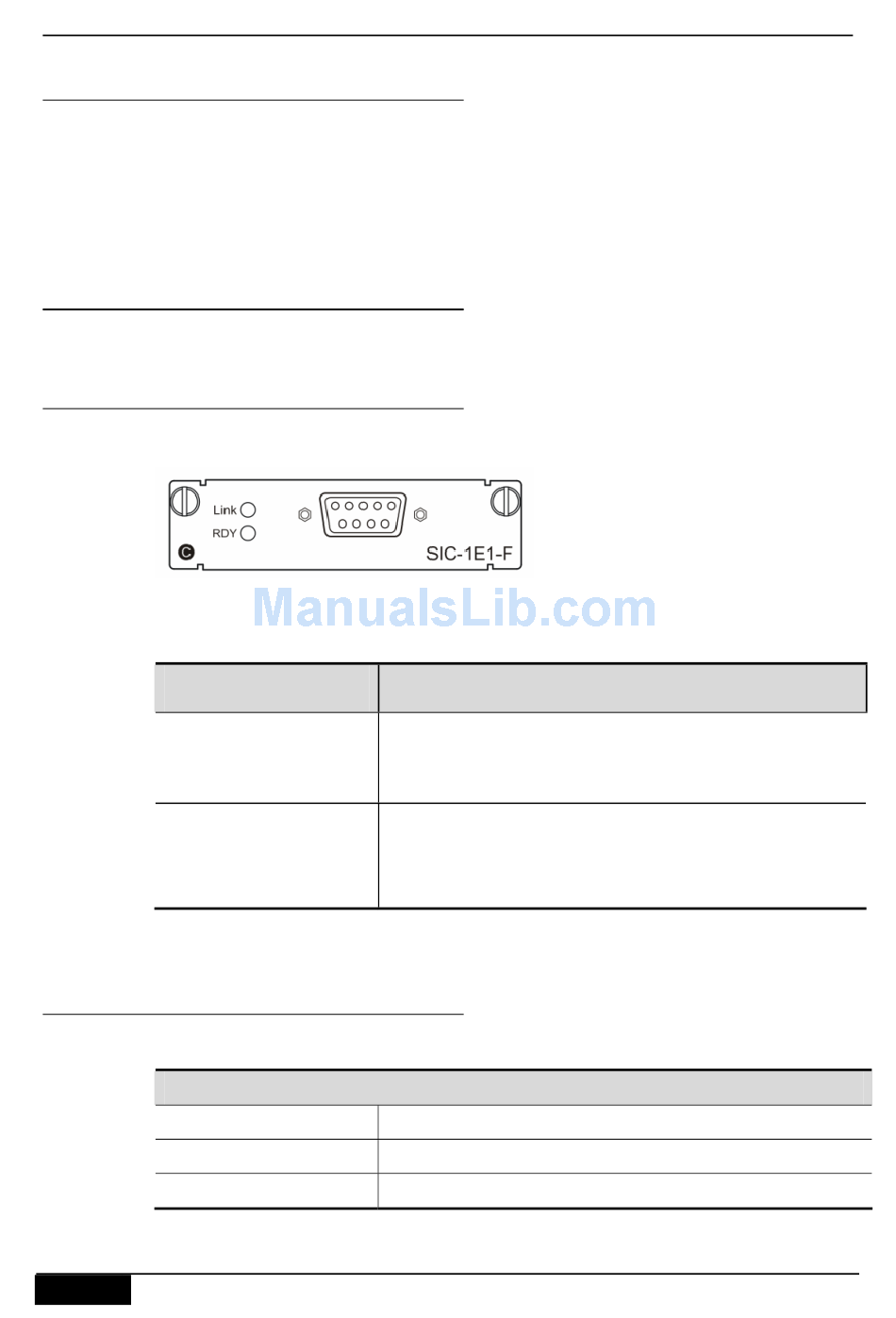

Figure 1-15 Appearance of 1-port non-channelized E1 card (SIC-1E1-F)
The SIC-1E1-F is the Class C line card, which can be used by the slot marked with "C".
Panel indicator description:
Indicator
Link
RDY
1.3.4.2
Attributes of the SIC-1E1- F Card
The basic attributes are as below:
SIC-1E1-F
Number of ports
Interface type
Cable
1-30
Description
Solid on means the upper link connection is set up
successfully.
OFF means the upper link connection is unsuccessfully
On means the sub-card initialization after power on is done.
Off means the sub-card initialization after power on is
unsuccessful.
One
DB9 female connector
Balanced cable or non-balanced cable
