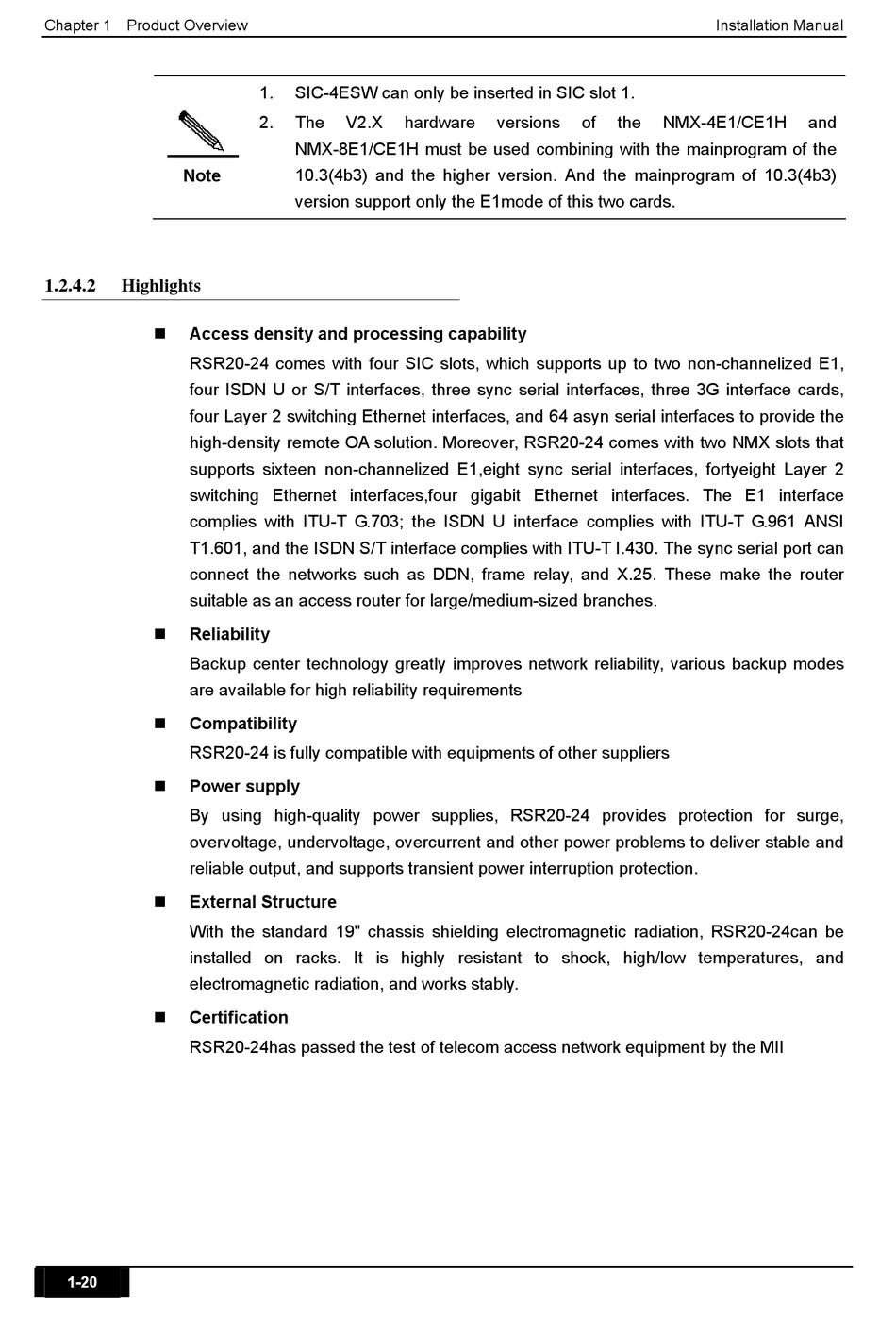

Chapter 1 Product Overview
Note
1.2.4.2 Highlights
Access density and processing capability

RSR20-24 comes with four SIC slots, which supports up to two non-channelized E1,
four ISDN U or S/T interfaces, three sync serial interfaces, three 3G interface cards,
four Layer 2 switching Ethernet interfaces, and 64 asyn serial interfaces to provide the
high-density remote OA solution. Moreover, RSR20-24 comes with two NMX slots that
supports sixteen non-channelized E1,eight sync serial interfaces, fortyeight Layer 2
switching Ethernet interfaces,four gigabit Ethernet interfaces. The E1 interface
complies with ITU-T G.703; the ISDN U interface complies with ITU-T G.961 ANSI
T1.601, and the ISDN S/T interface complies with ITU-T I.430. The sync serial port can
connect the networks such as DDN, frame relay, and X.25. These make the router
suitable as an access router for large/medium-sized branches.
 Reliability
Backup center technology greatly improves network reliability, various backup modes
are available for high reliability requirements
 Compatibility
RSR20-24 is fully compatible with equipments of other suppliers
 Power supply
By using high-quality power supplies, RSR20-24 provides protection for surge,
overvoltage, undervoltage, overcurrent and other power problems to deliver stable and
reliable output, and supports transient power interruption protection.
 External Structure
With the standard 19" chassis shielding electromagnetic radiation, RSR20-24can be
installed on racks. It is highly resistant to shock, high/low temperatures, and
electromagnetic radiation, and works stably.
Certification

RSR20-24has passed the test of telecom access network equipment by the MII
1-20
1. SIC-4ESW can only be inserted in SIC slot 1.
2. The V2.X hardware
NMX-8E1/CE1H must be used combining with the mainprogram of the
10.3(4b3) and the higher version. And the mainprogram of 10.3(4b3)
version support only the E1mode of this two cards.
versions of the NMX-4E1/CE1H
