- Page 1 Ruijie RSR10-01G Router Hardware Installation Manual (V1.00)
- Page 2 Ruijie Networks Ltd. ©2000-2011 All rights reserved. Title to this manual shall solely remain with Ruijie Networks Ltd. Without our written permission, this document may not be excerpted, reproduced, transmitted, or otherwise in all or in part by any party in any means.
- Page 3 Preface Thank you for buying Ruijie series of routers. This manual details the steps that you need to follow to install them. Version Description This manual applies to Ruijie RSR10-01G routers. Contents This manual provides the hardware features, installation setting, maintenance, and fixing of common problems of Ruijie RSR10-01G routers.
-
Page 4: Related Documents
Information Feedback If you read the product documentation of Ruijie Networks on the Internet, you can send any of your comments on our documentation on line. You can also send any of your comments on our documentation via E-Mail at: service@ruijie.com.cn... -
Page 5: Obtaining Technical Assistance
Obtaining Technical Assistance Ruijie Networks provides excellent technical support services for all our products. You can obtain the technical assistance you need through any of the following channels: Ruijie Networks Website From which you can obtain the latest product documentation, causes and problems analysis of product faults, application solutions, and software upgrade. - Page 6 Warning, danger or alert in the operation. Warning Precaution, attention or reminder in the operation. Caution Note, prompt, tip or any other necessary supplement or explanation for the operation. Note...
-
Page 7: Table Of Contents
Contents Product Overview..........................1-1 RSR10-01G Series Routers ......................1-1 1.1.1 RSR10-01G........................1-1 Features of RSR10-01G Routers ....................1-4 1.2.1 Rich Protocol Support ....................1-5 1.2.2 Friendly User Interfaces ....................1-5 1.2.3 Powerful Backup Function ....................1-5 1.2.4 Rich Diagnosis and Management Tools................1-5 1.2.5 Superior Security......................1-6 1.2.6 Easy Upgrade........................1-6... - Page 8 Troubleshooting Power Faults ....................5-1 Troubleshooting Configuration Faults ..................5-1 Cable Connection..........................6-1 Physical Cable Connection......................6-1 6.1.1 Connecting the Console Interface.................6-1 6.1.2 Connecting and Selecting the Antenna.................6-1...
-
Page 9: Product Overview

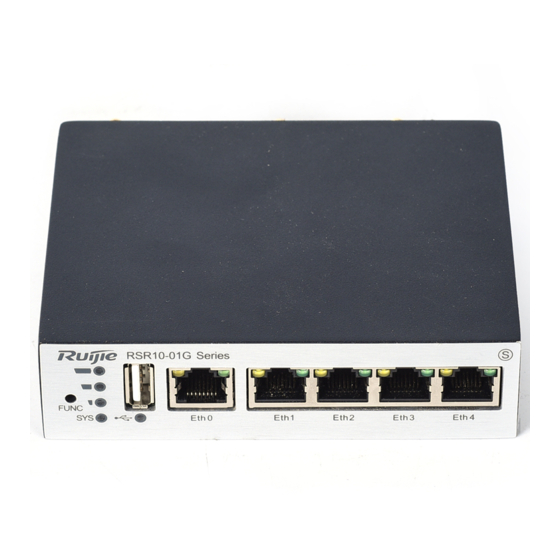

Installation Manual Chapter 1 Product Overview Product Overview The RSR10-01G router is a data communication product independently developed by Ruijie Networks Co. Ltd. by using advanced semiconductor technologies and com munication control technologies. Ruijie series routers are developed in full compliance with... - Page 10 1.1.1.3 Indicators and Appearance Figure 1-1 Front panel of Ruijie RSR10-01G router ○ 1 DC power socket ○ 2 Antenna SMA connector ○ 3 Status indicato ○ 4 Signal intensity indicator ○...
- Page 11 Power adapter, AC input: 100~240V 50~60Hz Whole-system power consumption < 12W Operating ambient temperature 0~50°C Storage ambient temperature -40~70°C Operating humidity 10~90%RH For the RSR10-01G routers, the FE RJ-45 port can use the standard cat-5 8-core UTP with RJ-45 connectors.
-
Page 12: Features Of Rsr10-01G Routers
Features of RSR10-01G Routers For software functions, refer to the supporting software description. As some interfaces such as asyn serial interface and CE1 interface are not supported by the RSR10-01G, the related software functions described in the Note software manual are not supported. -
Page 13: Rich Protocol Support
Chapter 1 Product Overview 1.2.1 Rich Protocol Support Ruijie RSR10-01G routers are applicable to various network environments. Providing RJ45 interfaces for twisted pairs, supporting Ethernet, ARP, and 802.1Q protocols. Supporting various WAN protocols, including X.25, frame relay, HDLC, PPP, and SLIP. -
Page 14: Superior Security
Chapter 1 Product Overview Installation Manual Login and configuration via TELNET Login and configuration via remote dial-up 1.2.5 Superior Security Using perfect IP packet filtering technology, it enforces strict check on network addresses, port numbers or protocol types. It supports AAA and RADIUS. Realizing PAP and CHAP protocols on PPP, and supporting callback function. -
Page 15: Preparing For Installation
UPS is recommended to avoid power failure as well as power interference. Insta llation Environment Requ e ir ments Ruijie routers are intended for use ind oors. For their normal operation and maximum service life, they must be installed at location s that meet the following requirements: Temperature and Humidity Req... -
Page 16: Cleanness Requirements
H igh temperature will speed the aging of insulation materials, low ring routers' reliability and sho rten their lives. The temperat e and humidity requirements of Ruijie RSR10-01G router are as follows: Temper ture: 0ºC~50ºC Relative humidity: 10%–90% The ambient temperature and humidity refer to the values measured at the place 1.5 m above the floor a... -
Page 17: Anti-Static Requirements
Installation Manual Chapter 2 Preparing for Installation 2.2.3 Anti-static Requirements The circuitry of the routers is designed with electrostatic protection, but excessive static electricity may still damage the circuit boards of the routers. The static electricity of the network connected with the routers comes largely from the following sources: Outdoor electric field produced by the high-voltage supply cable, lightning, etc;... -
Page 18: Checking The Installation
Connection cables include: Power cable Configuration cable Ethernet cable Module interface cable The Ruijie RSR10-01G routers are attached with power adapters, pole-shaped antennas, power cables, and configuration cables. The other Note cables should be purchased separately. Related devices include: HUB or switch... -
Page 19: Installing Router
Installation Manual Chapter 3 Installing Router Installing Router Procedure for Installing Router Please follow the following procedure to inst all the Ruijie series routers to ensure a smooth installation and avoid any da mage to the unit:... -
Page 20: Fastening Router
Mounting in the Cabinet Mounting on the Workbench 3.2.1 Mounting in the Cabinet RSR10-01G can be mounting in the cabinet though the aluminium alloy slot and fixing accessories( the fixing accessories should be purchased separately) , as shown in the following figure. Hanger: 3.2.2... -
Page 21: Installing The Power Cable And Grounding Cable
Chapter 3 Installing Router Insta lling the Power Cable and Grou nding Cable Ruijie RSR10-01G routers support this AC power supply. Power adapter: Input AC: 100–240V; 50-60Hz Output DC: 12V/1.25A Make sure that your power supply meets the requirement. The power cable of the router is composed of three wires. You are recommended to use a single-phase power socket with a neutral connector or a multifunctional PC power socket. -
Page 22: Starting And Configuring Router
Chapter 4 Starting and Configuring Router Installation Manual arting and Configuring Router Starting Router 4.1.1 ting Up the Configuration Environment When you use the router for the very first time, you will need to configure the router through a console port as follows: As shown in the following diagram, connect the serial port of a character terminal or PC to the Console p ort of the router through the standard RS232... -
Page 23: Startup Process
Press Ctrl+C to enter Boot Menu ..Main Program File Name rgos.bin, Load Main Program ... Executing program, launch at: 0x00010000 Ruijie General Operating System Software Release Software (tm), RGOS 10.3(5T30), Release(113148), Compiled Wed Apr 6 17:01:22 CST 2011 by ngcf61... -
Page 24: Configuring Router
Chapter 4 Starting and Configuring Router Installation Manual Copyright (c) 1998-2011s by Ruijie Networks. ll Rights Re rved. Decompiling or Reverse Engineering is Not Allowed. *Apr 14 08:45:33: %MTD_DRIVER-5-MTD_NAND_FOUND: 1 NAND chips(chip size : 33554432) detected *Apr 14 08:45:33: %MTD_DRIVER-5-MTD_NAND_FOUND: 1 nand chip(s) found on the target. -
Page 25: Troubleshooting
Installation Manual Chapter 5 Troubleshooting Troubleshooting Troubleshooting Power Faults For RSR10-01G series, you can determine whether the power s ystem has any fault by the PWR indi cator on the front panel. For the normal status of the indicato r, see the description on the first chapter. -
Page 27: Cable Connection
6.1.2 Connecting and Selecting the Antenna The RSR10-01G router is shipped with a pole-shaped antenna. You just connect the ole-shaped antenna to the the ANT interface on the host. In addition, users could select the sucker-shaped or helix-shaped antennas with extension...
