SIC-2FXS Interface Card

SIC card model: SIC-2FXS
1.3.8.1
Appearance of the Module and Indicators

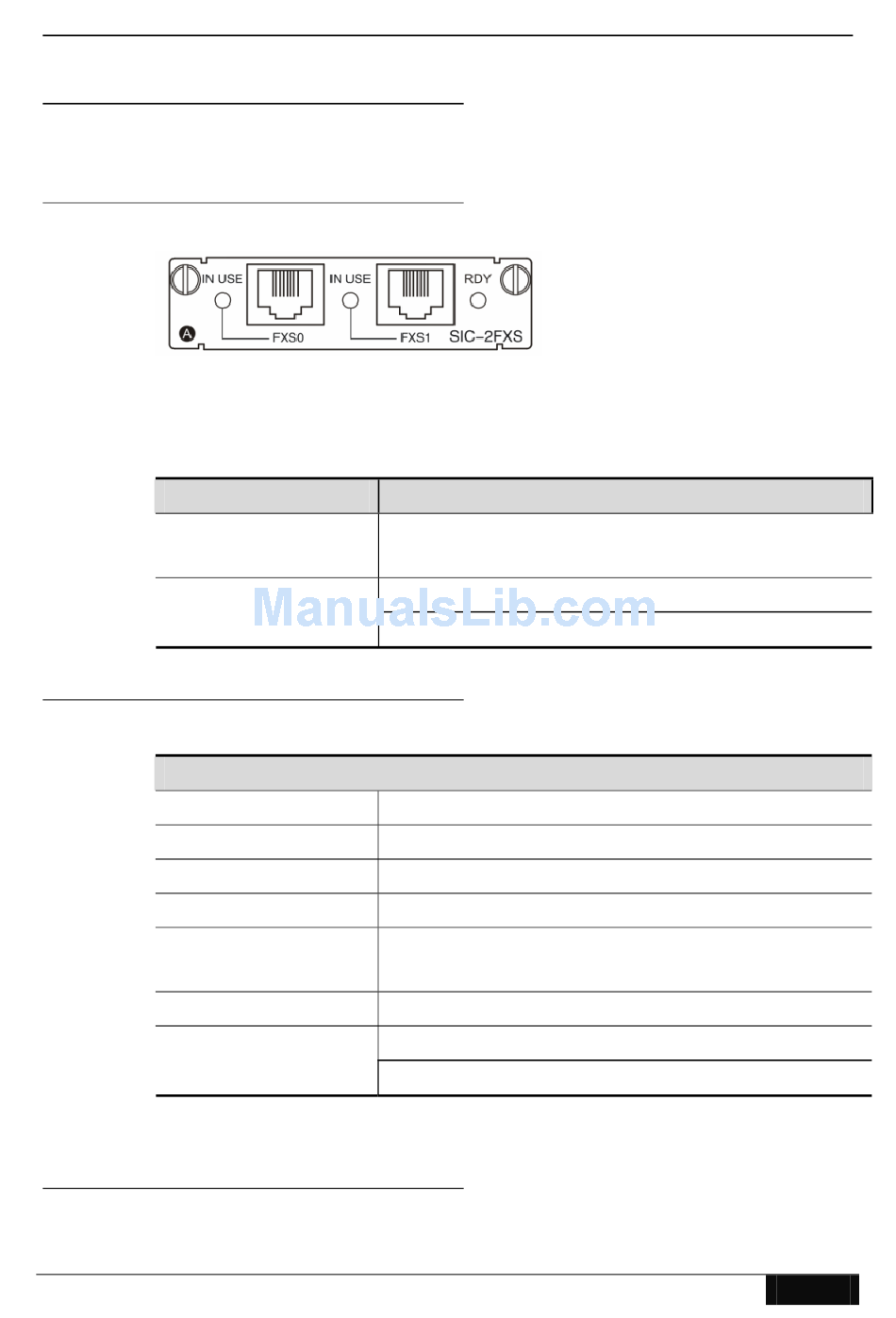

Figure 1-19 Appearance of SIC-2FXS interface card
The SIC-2FXS is the Class A line card, which can be used by the slot marked with "A".
The interface card includes the IN USE indicators for ports and one RDY indicator.
Panel indicator description:
Indicator
IN USE
RDY
1.3.8.2
Attributes of the SIC-2FXS Card
The basic attributes are as below:
SIC-2FXS
Number of ports
Interface type
Cable
Standard compliance
Operating Temperature:
Humidity
EMC
1.3.8.3
Module Cable
The SIC-2FXS module uses standard phone wires.
Description
Solid on means the port is activated.
Off means the port is inactivated.
On means the card initialization after power on is done.
Off means the card initialization after power on is unsuccessful.
Two
RJ45 connector (compatible with RJ11)
Phone wire
Voice code: G.711, G.729A and G.723.1
Operating temperature: 0°C ~45°C
Storage temperature: -40°C ~70°C
Operating humidity: 10%~90%
EMI: GB 9254-1998 Class A
EMS: GB/T 17618-1998
