Item
Default Configuration
SIC card slot
Processor
BOOT ROM
SDRAM
Data
NAND FLASH
Dimensions (W×H×D)
Input voltage
Whole-system power
consumption
Operating ambient temperature
Storage ambient temperature
Operating humidity
1.3

SIC Card Introduction

This section describes the features of the SIC cards supported by the RSR10/RSR20 series
routers.
1.3.1

SIC-1HS Sync Interface Card

Product model: SIC-1HS
1.3.1.1 Appearance and Indicators

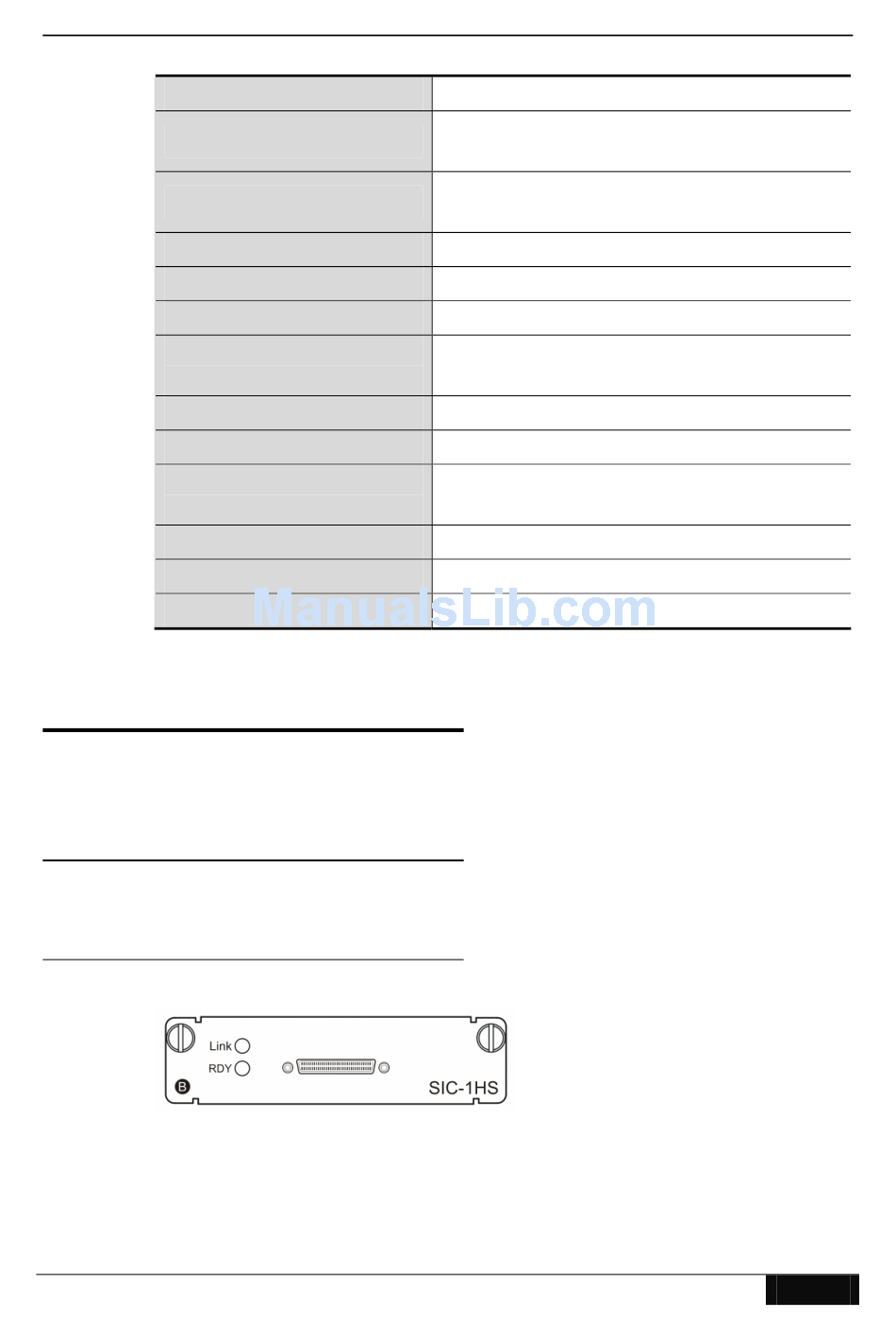

Figure 1-11 Appearance of SIC-1HS high-speed synchronous serial port card
The SIC-1HS is the Class B line card, which can be used by the slot marked with "B".
Each port has a status indicator (LINK indicator) and the sub-card Ready indicators.
Panel indicator description:
RSR20-24
One Console port, one AUX port, two USB interfaces
and two 10/100M Ethernet ports
4 (In according with user's requirement, configure up
to four SIC cards)
RISC high performance network processor
2MB
512MB
128MB
443 mm × 88 mm × 330 mm (2U)
AC100~240V 50~60Hz
< 50W
0~45°C
-40~70°C
10~90%RH
Chapter 1 Product Overview
1-23
