Chapter 1 Product Overview
1.2.3.3 Indicators and Appearance

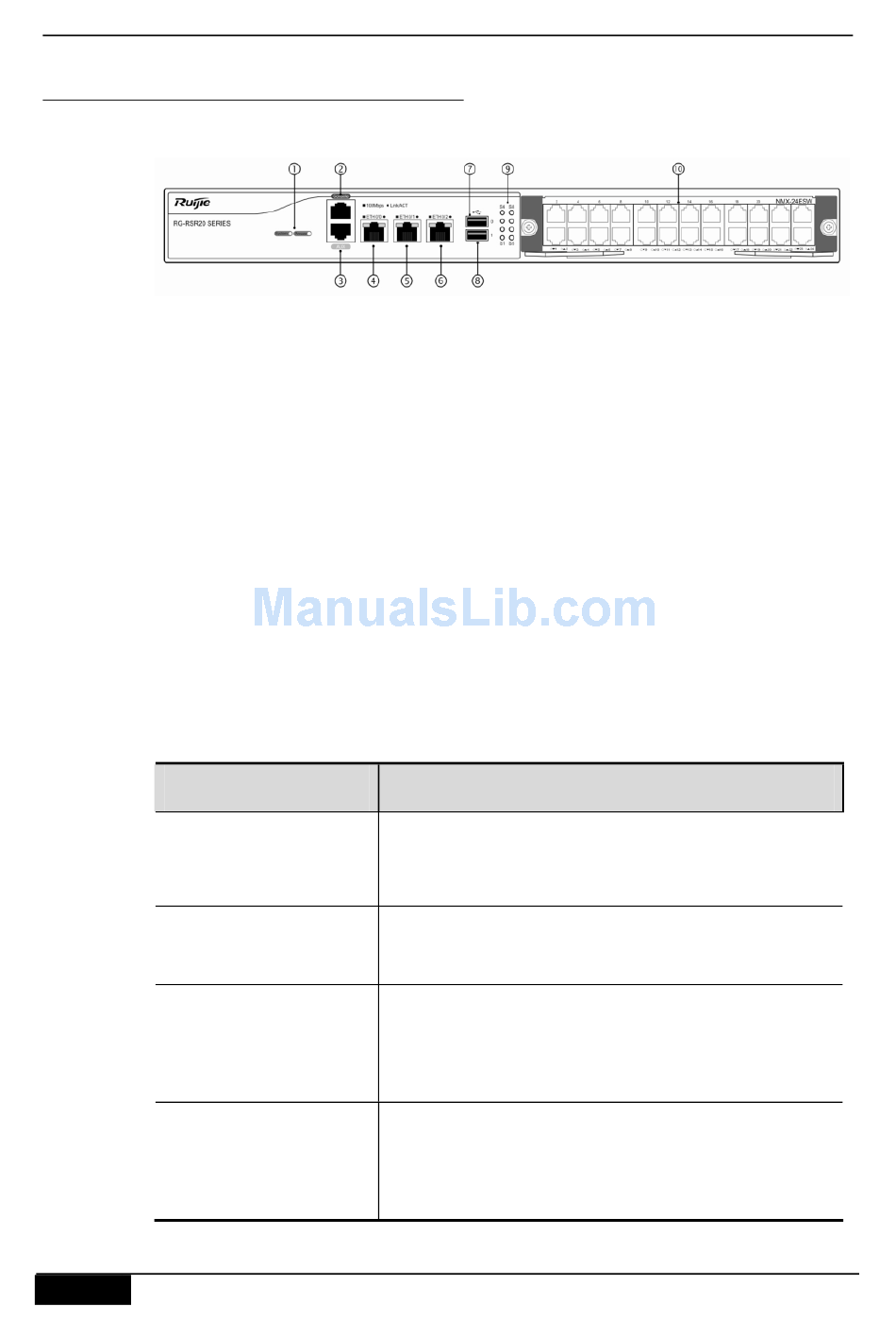

Figure 1-7 Front panel of Ruijie RSR20-18 router
○ 1 Status indicator;
○ 2 Console;
○ 3 Backup interface AUX;
○ 4 Interface Ethernet 0/0;
○ 5 Interface Ethernet 0/1;
○ 6 Interface Ethernet 0/2;
○ 7 Interface USB 0/0;
○ 8 Interface USB 0/1;
○ 9 Slot indicator;
10 NMX card slot9
Panel indicator description:
Indicator
SYSTEM
POWER
S 1~8
S 9
1-16
Description
Flashing Green: the system is starting.
Green: the system runs stably.
Red: the system runs abnormally.
On: the system is powered on.
Off: the system is not supplied with power.
Green on: the SIC card is inserted in the SIC X card slot
and works well.
Green off: the SIC card is not inserted in the SIC X card
slot or does not work well.
Green on: the NMX card is inserted in the NMX9 card slot
and works well.
Green off: the NMX card is not inserted in the NMX9 card
slot or does not work well.
