- Page 1 RSR30-X Series Router Hardware Installation and Reference Guide...
-
Page 2: Copyright Statement
Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited. Exemption statement This document is provided “as is”. -
Page 3: Obtaining Technical Assistance
It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance Ruijie Networks Website: https://www.ruijienetworks.com/ Technical Support Website: https://ruijienetworks.com/support... -
Page 4: Product Overview
· 1 Product Overview Ruijie RSR30-X series router is a data communication product independently developed by Ruijie Networks Co. Ltd. by using advanced semiconductor technologies and communication control technologies. Ruijie RSR30-X series router is developed in full compliance with international standards; therefore, it is similar to major routers in terms of use and configuration approach. -
Page 5: Specifications
Support of multicast routing protocols, including IGMPv1, IGMPv2, IGMPv3, DVMRP, and PIM DM/SM. 1.1.2 RSR30-X-SPU10 V1.5 The RSR30-X-SPU10 V1.5 is an integrated host. Specifications RSR30-X-SPU10 V1.5 Product Model A maximum of two HNM modules can be configured on the front panel of the RSR30-X-SPU10 V1.5. -
Page 6: Product Images

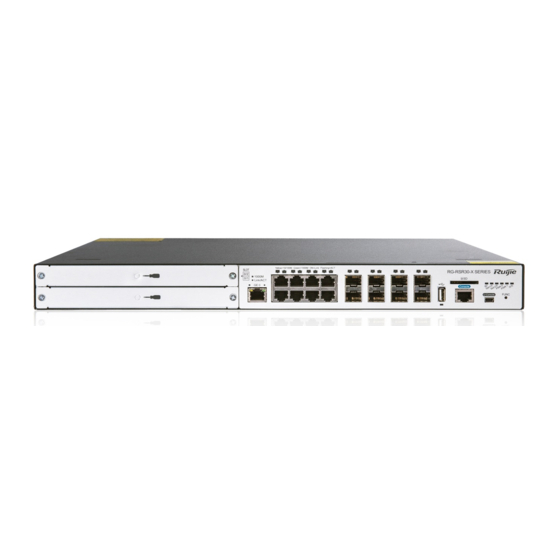

· Product Images Figure 1-1 Front Panel Figure 1-2 Back Panel Indicators and Buttons Mark Note Description Off: The system is not powered on or the system is abnormal. System status indicator of Solid red: The system is abnormal. the local control board Blinking green: The system is initializing. - Page 7 RSR30-X-SPU10 provides one USB port. This port allows routers to read configurations from the USB device or save configurations to the USB device. Ruijie RGOS operating system can be stored in the USB device. You can press the FUNC button to upgrade the operating system.
- Page 8 Hot swapping of the SD card must be operated according to the "Reliability Configuration" section in the RGOS Configuration Guide. The system on the SD card may be faulty if you perform hot swapping before inputting the SD card pullout command. Only Ruijie SD cards are supported. FUNC Button The FUNC button is used on the RSR30-X routers.
-
Page 9: Service Modules
· If you need to reset the system only, ensure that there is no installation package on the SD card or USB flash disk. Alternatively, simply press the FUNC button without inserting any SD card or USB flash disk. For detailed operations, see the RGOS Configuration Guide of the RSR30-X router. - Page 10 · Dimensions (W x H x 203.3mm x 81mm x 40mm (Excluding the connecting finger and the handle.) D) (mm) 236.9mm x 81mm x 40mm (Including the connecting finger and the handle.) Weight 0.6kg 1.3.2 PD240I Product Image Figure 1-5 Appearance of Two RG-PD240I Power Supply Modules Indicators Indicator Description...
-
Page 11: Preparation Before Installation
· 2 Preparation before Installation To avoid body injury and equipment damage, please carefully read the safety suggestions before you install RSR30-X. The following safety suggestions do not cover all possible dangers. 2.1 General Suggestions Routers are important network hops and their working affects the normal operation of the whole network. The following suggestions are advised for the installation and use of routers: ... -
Page 12: Installation Site Requirements
The electrostatic attraction is easier to occur when the relative humility is low. The following table gives Ruijie routers' requirements on dusts density and diameter in equipment room. Substance Concentration Limit (particles/m Dust particles (diameter ≥0.5μm) -
Page 13: System Grounding Requirements
· Dust particles (diameter ≥5μm) ≤3×10 Besides dusts, routers also have strict requirements on salt, acid and sulfide contents in the air in the equipment room. These gases will speed the erosion and aging of metals and parts. The following table gives the limitations on the harmful gases of SO2, H2S, NO2, NH3, and Cl2. -
Page 14: Anti-Interference Requirements
Ruijie families of routers are equipped with fans. They draw in cold air from the radiating holes around the frame and exhaust it from under the frame. Therefore, you need set aside at lease 10cm around the radiating holes. It is recommended installing the router in a 19-inch standard cabinet. -
Page 15: Router Installation
· CSU/DSU or other DCE device Configuration terminal, which may be a client or a PC with hyper terminal installed Router modules Power sockets Some tools are customer supplied. 3 Router Installation 3.1 Procedure for Installing Router Please follow the following procedure to install the router to ensure the smooth installation and avoid any damage to the unit:... -
Page 16: Mounting The Router
· 3.2 Mounting the Router Now the router is ready for installation. Mount it to either of these two places. A cabinet A workbench 3.2.1 Mounting the Router to Cabinet RSR30-X series routers is designed for 19-inch standard cabinets. Use the supplied fixing accessory for installation when needed. -
Page 17: Installing The Power Cable
The power supply socket should be installed near the device for convenient plugging. 3.4 Installing the Grounding Cable and the Power Cable Ruijie RSR30-X series routers support the following AC power supply: AC: 100–240 VAC; 50 Hz to 60 Hz; 2A Verify that the power supply meets the requirement. - Page 18 Verify that the PWR indicator on the front panel is off. 3.5 Installing Power Cable and Grounding Cable 3.5.1 Installing Power Cable and Grounding Cable Ruijie families of routers support this AC power supply. AC: 100–240V 50/60Hz 2A Make sure that your power supply meets the requirement.
- Page 19 · Figure 3-1 PD240I Power Cable Installation Blue wire Brown wire Yellow green wire PGND Power strip in the DC terminal block equipment room in the chassis Figure 3-2 PD240I Power Plug Installation The installation procedures are as follows: Take the DC power module PD240I and cables from the carton and insert the DC power module into the power slot of the router.
-
Page 20: Installation Check
· Connect the yellow green wire with the label of the power cable to the PGND in the power strip in the equipment room. Connect the brown wire with the "+" label of the power cable to the -48 VGND in the power strip in the equipment room. -
Page 21: Console Connection
· 3.8 Console Connection The RSR30-X router provides a console port and a U-console port that comply with the EIA/TIA-232 asynchronous serial standards. You can perform the router configuration through either of the ports. Specifications Connector RJ-45 Interface Asynchronous EIA/TIA-232 standard Baud rate 300-115,200bps, 9,600bps by defaut... -
Page 22: Powering On Router
· Create a connection. Select the serial port to be connected with the router console. Set communication parameters for the serial port. Select a terminal emulation type. When you have finished building the configuration environment, you may power on the router. 4.1.2 Powering on Router 4.1.2.1 Check before Powering on Before powering on the router, please check... -
Page 23: Configuring Router
Executing program, launch at: 0x04000000 CLOCK-3-HW_CAL_INVALID: Hardware Calendar (RTC) Error. MTD_DRIVER-5-MTD_NAND_FOUND: 1 NAND chips(chip size : 536870912) detectedCopyright (c) 1998-2014s by Ruijie Networks. All Rights Reserved. Neither Decompiling Nor Reverse Engineering Shall Be Allowed. *Jan 1 00:02:29: %SYS-5-COLDSTART: System coldstart. -
Page 24: Troubleshooting Power Supply
· 5 Troubleshooting 5.1 Troubleshooting Power Supply For the RSR30-X series routers, you may use the power indicator on the front panel and the status indicator on the power module to decide if the power supply system is operating normally. For description of indicators, see Chapter 1. If a fault occurs, check ... - Page 25 · 6.2 Label Pasting Before pasting labels, write the content on the label paper, strip the label off, and then paste it to the cable or signboard cable tie. 1. Position A label is pasted 2 cm away from the plug by default and can be flexible adjusted, for example, the label should not be pasted on the curved position or other positions that may affect the installation.
- Page 26 · 6.3 Label Content Label content A pasted label has two sides, marking the locations of the two ports connected by the cable. Write the content based on the onsite environment. 1. Write information about the local end in Area 1. 2.
