- Page 1 RSR10-01G-T(W)-I V2.00 Series Router Hardware Installation and Reference Guide...
- Page 2 Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited. Exemption Statement This document is provided “as is”.
- Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance Ruijie Networks Website: https://www.ruijienetworks.com/ Technical Support Website: https://ruijienetworks.com/support...
-
Page 4: Product Overview
Product Overview 1 Product Overview Ruijie RSR10-01G-T(W)-I V2.00 series router is a data communication product independently developed by Ruijie Networks Co. Ltd. by using advanced semiconductor technologies and communication control technologies. Ruijie RSR10-01G-T(W)-I V2.00 series router is developed in full compliance with international standards; therefore, it is similar to major routers in terms of use and configuration approach. - Page 5 Hardware Installation and Reference Guide Product Overview The product provides five FE LAN ports, one USB port, and 4G/3G/2G interface. Reliability The product adopts the backup center technology to greatly improve the network reliability, and provides multiple form of backup to ensure requirements for highly reliable networks. ...

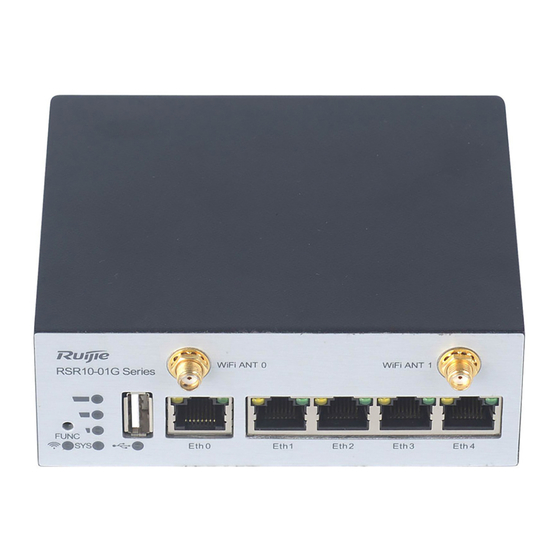

- Page 6 Hardware Installation and Reference Guide Product Overview FUNC button WiFi status indicator SYS indicator Radio signal strength indicator USB indicator USB port WiFi antenna port (ANT0) FE RJ45 port Speed indicator of the FE port LINK/ACT indicator of the FE port WiFi antenna port (ANT1) Position of the screw used for mounting the router on the right...
-
Page 7: Specifications
Hardware Installation and Reference Guide Product Overview 4G signal strength indicators All indicators off: There is basically no radio signal, and the wireless network is unavailable. One indicator on: The signal is poor. Two indicators on: The signal is good. Three indicators on: The signal is excellent. -
Page 8: Supporting Multiple Protocols
Hardware Installation and Reference Guide Features The FE RJ45 port of a RSR10-01G-T(W)-I V2.00 series router can use the standard category 5 8-core unshielded twisted pair (UTP) with the RJ45 connector. Pinout of the Standard Network Cable Pin No. Orange/white Orange/white Orange Orange... -
Page 9: User-Friendly Interfaces
Hardware Installation and Reference Guide Features Supporting backup, Virtual Router Redundancy Protocol (VRPP) with high reliability. Supporting Point-to-Point Protocol over Ethernet (PPPOE). Supporting DNS static domain name resolution and Dynamic Domain Name Server (DDNS). DNS indicates Domain Name System. ... -
Page 10: Easy Upgrade
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 3.2 Preparing Installation Site Ruijie routers are intended for indoor use. For their normal operation and maximum service life, they must be installed at locations that meet the following requirements: ... -
Page 11: Temperature And Humidity
Hardware Installation and Reference Guide Preparing for Installation Lightning protection Mounting Place 3.2.1 Temperature and Humidity To ensure normal operation and useful life of the device, maintain appropriate temperature and humidity levels in your equipment room. See Table 3-1. Improper room temperature and humidity can cause damages to the device. ... - Page 12 Take EMI shielding measures when necessary. 3.2.5 Lightning Protection Ruijie series routers are provided with anti-lighting protection. However, as an electric device, it is still vulnerable to powerful lightning. Therefore, the following measures must be taken to prevent lightning: ...
-
Page 13: Installation Tools
Phillips screwdrivers ESD wrist strap Connection cables include: Ethernet cable The power adapter is provided along with Ruijie RSR10-01G-T(W)-I V2.00 series router delivery, but the other cables are purchased separately. Related devices include: HUB or switch ... -
Page 14: Mounting The Router On The Wall
Hardware Installation and Reference Guide Installing the Router Start Prepare for the installation (See Chapter 3) Install the router to a specified position Connect module cables and configuration cables Check the installation Power on the router Configure the router 4.2 Fixing the Router After installation preparations are completed, you need to fix the router to a specified position: ... -
Page 15: Installing The Router On A Workbench
Hardware Installation and Reference Guide Installing the Router 4.2.2 Installing the Router on a Workbench In practice, the router is often placed on a clean workbench. Pay attention to the following precautions when this installation mode is used: Ensure that the workbench is smooth and well grounded. ... -
Page 16: Starting And Configuring The Router
Hardware Installation and Reference Guide Starting and Configuring the Router 5 Starting and Configuring the Router 5.1 Starting the Router 5.1.1 Powering On the Router Check Before Power-On Check the following items before powering on the router: The power cable and grounding cable are connected correctly. ... -
Page 17: Troubleshooting
Hardware Installation and Reference Guide Troubleshooting To achieve better display effects, you are advised to use browsers such as Internet Explorer 7.0 (or later), Google Chrome, Apple Safari, or Firefox3.0. For details about the Web-based operations, see the RG-RSR10-01G-T(W) Series Router RGOS Web-Based Configuration Guide, Release 10.4(3b64). - Page 18 Hardware Installation and Reference Guide Troubleshooting Whether the power cable of the router is correctly connected. Whether the power supply meets the requirements of the router. If the preceding checks are passed, but the SYS indicator is still off, contact the local distributor or technical support engineers.
