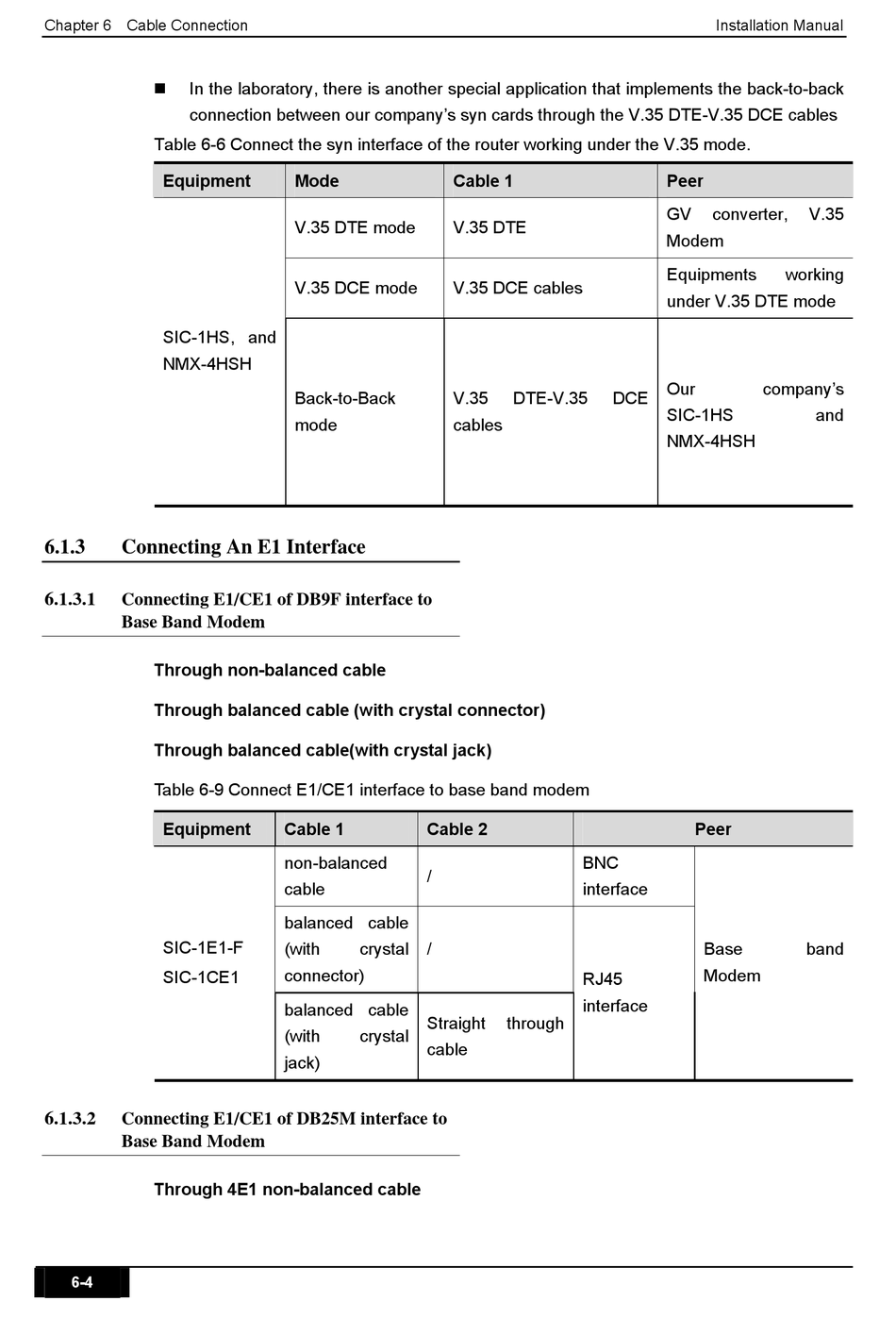

Chapter 6 Cable Connection
In the laboratory, there is another special application that implements the back-to-back
connection between our company's syn cards through the V.35 DTE-V.35 DCE cables
Table 6-6 Connect the syn interface of the router working under the V.35 mode.
Equipment
SIC-1HS, and
NMX-4HSH
6.1.3
Connecting An E1 Interface
6.1.3.1
Connecting E1/CE1 of DB9F interface to
Base Band Modem
Through non-balanced cable
Through balanced cable (with crystal connector)
Through balanced cable(with crystal jack)
Table 6-9 Connect E1/CE1 interface to base band modem
Equipment
SIC-1E1-F
SIC-1CE1
6.1.3.2
Connecting E1/CE1 of DB25M interface to
Base Band Modem
Through 4E1 non-balanced cable
6-4
Mode
V.35 DTE mode
V.35 DCE mode
Back-to-Back
mode
Cable 1
Cable 2
non-balanced
/
cable
balanced cable
(with
crystal
/
connector)
balanced cable
Straight
(with
crystal
cable
jack)
Cable 1
V.35 DTE
V.35 DCE cables
V.35
DTE-V.35
DCE
cables
BNC
interface
RJ45
interface
through
Installation Manual
Peer
GV
converter,
V.35
Modem
Equipments
working
under V.35 DTE mode
Our
company's
SIC-1HS
and
NMX-4HSH
Peer
Base
band
Modem
