Ruijie RSR10 Series Hardware Installation Manual page 32

Chapter 1 Product Overview
Indicator
S 6

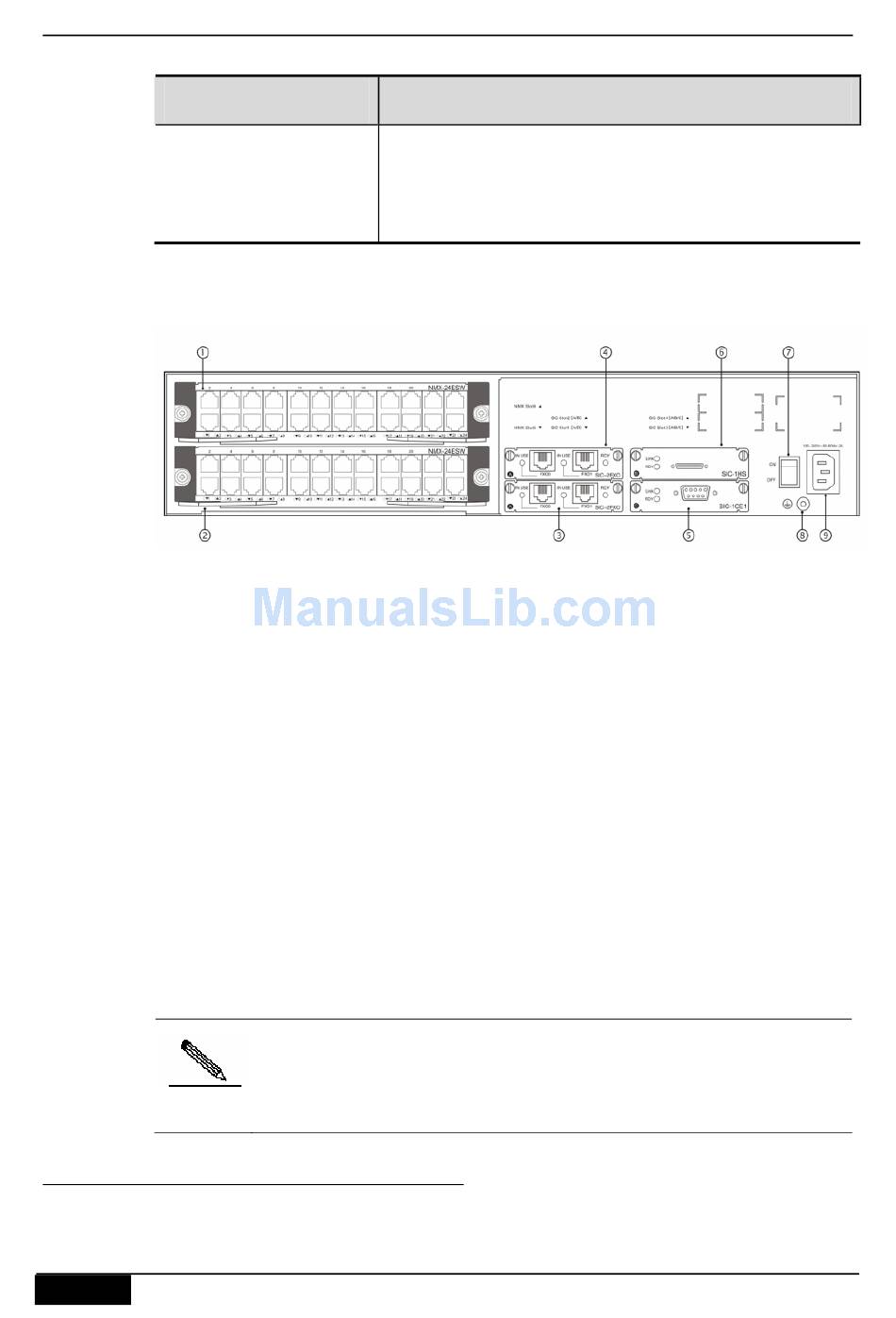

Figure 1-10 Back panel of Ruijie RSR20-24 router
Note: Each slot is marked with the supported SIC card type (A/B/C/D). For the line card
classification, see the overview section.
○ 1 NMX card slot6;
○ 2 NMX card slot5;
○ 3 SIC card slot1;
○ 4 SIC card slot2;
○ 5 SIC card slot3;
○ 6 SIC card slot4;
○ 7 Power switch;
○ 8 Enclosure ground interface;
○ 9 Input power interface
Note
1.2.4.4
Parameters
The following table lists the feature parameters of Ruijie RSR20-24
1-22
Description
Green on: the NMX card is inserted in the NMX6 card slot
and works well.
Green off: the NMX card is not inserted in the NMX6 card slot
or does not work well.
If you cannot determine the number of the slot where the current module
resides, you can execute the show slots command in the privileged EXE
mode. The router version information includes the slot number of each
module.
Installation Manual
