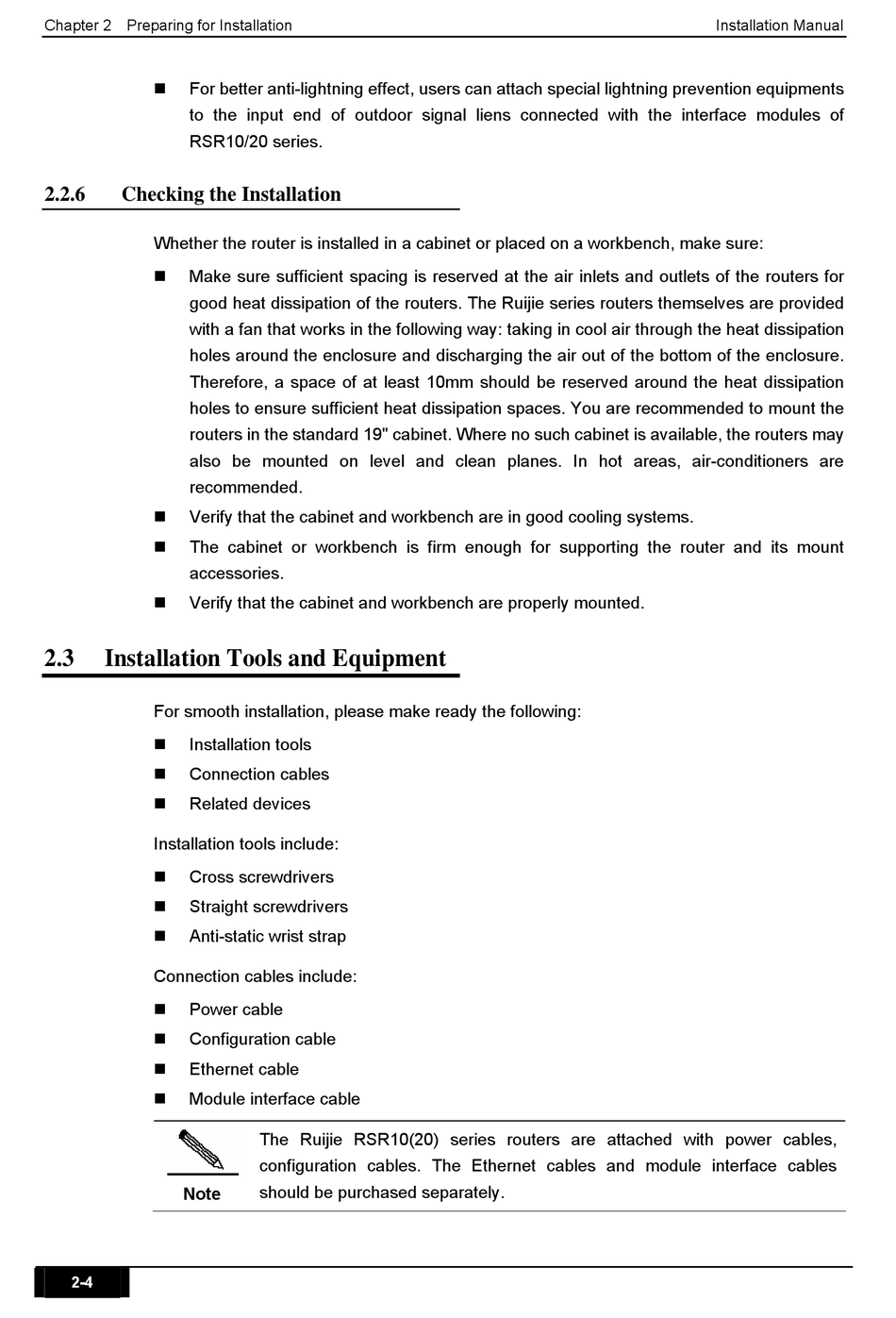

Chapter 2 Preparing for Installation
For better anti-lightning effect, users can attach special lightning prevention equipments

to the input end of outdoor signal liens connected with the interface modules of
RSR10/20 series.
2.2.6

Checking the Installation

Whether the router is installed in a cabinet or placed on a workbench, make sure:
 Make sure sufficient spacing is reserved at the air inlets and outlets of the routers for
good heat dissipation of the routers. The Ruijie series routers themselves are provided
with a fan that works in the following way: taking in cool air through the heat dissipation
holes around the enclosure and discharging the air out of the bottom of the enclosure.
Therefore, a space of at least 10mm should be reserved around the heat dissipation
holes to ensure sufficient heat dissipation spaces. You are recommended to mount the
routers in the standard 19" cabinet. Where no such cabinet is available, the routers may
also be mounted on level and clean planes. In hot areas, air-conditioners are
recommended.
 Verify that the cabinet and workbench are in good cooling systems.
 The cabinet or workbench is firm enough for supporting the router and its mount
accessories.
 Verify that the cabinet and workbench are properly mounted.
2.3

Installation Tools and Equipment

For smooth installation, please make ready the following:
 Installation tools
 Connection cables
 Related devices
Installation tools include:
 Cross screwdrivers
 Straight screwdrivers
 Anti-static wrist strap
Connection cables include:
 Power cable
 Configuration cable
 Ethernet cable
 Module interface cable
Note
2-4
The Ruijie RSR10(20) series routers are attached with power cables,
configuration cables. The Ethernet cables and module interface cables
should be purchased separately.
