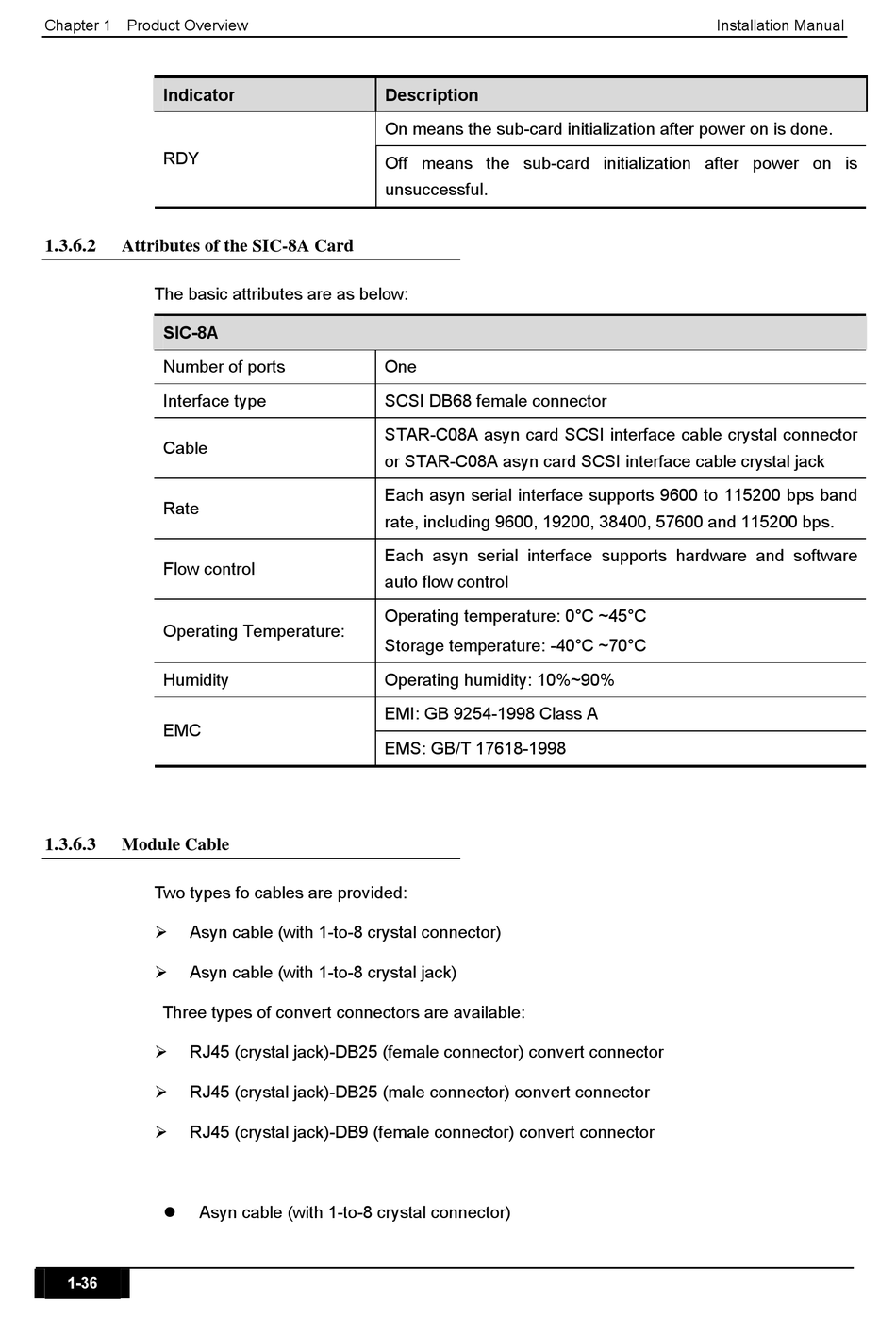

Chapter 1 Product Overview
Indicator
RDY
1.3.6.2 Attributes of the SIC-8A Card
The basic attributes are as below:
SIC-8A
Number of ports
Interface type
Cable
Rate
Flow control
Operating Temperature:
Humidity
EMC
1.3.6.3
Module Cable
Two types fo cables are provided:
 Asyn cable (with 1-to-8 crystal connector)
 Asyn cable (with 1-to-8 crystal jack)
Three types of convert connectors are available:
 RJ45 (crystal jack)-DB25 (female connector) convert connector
RJ45 (crystal jack)-DB25 (male connector) convert connector

 RJ45 (crystal jack)-DB9 (female connector) convert connector
 Asyn cable (with 1-to-8 crystal connector)
1-36
Description
On means the sub-card initialization after power on is done.
Off means the sub-card initialization after power on is
unsuccessful.
One
SCSI DB68 female connector
STAR-C08A asyn card SCSI interface cable crystal connector
or STAR-C08A asyn card SCSI interface cable crystal jack
Each asyn serial interface supports 9600 to 115200 bps band
rate, including 9600, 19200, 38400, 57600 and 115200 bps.
Each asyn serial interface supports hardware and software
auto flow control
Operating temperature: 0°C ~45°C
Storage temperature: -40°C ~70°C
Operating humidity: 10%~90%
EMI: GB 9254-1998 Class A
EMS: GB/T 17618-1998
