Installation Manual
1.4.2.1 Appearance of the Module and Indicators

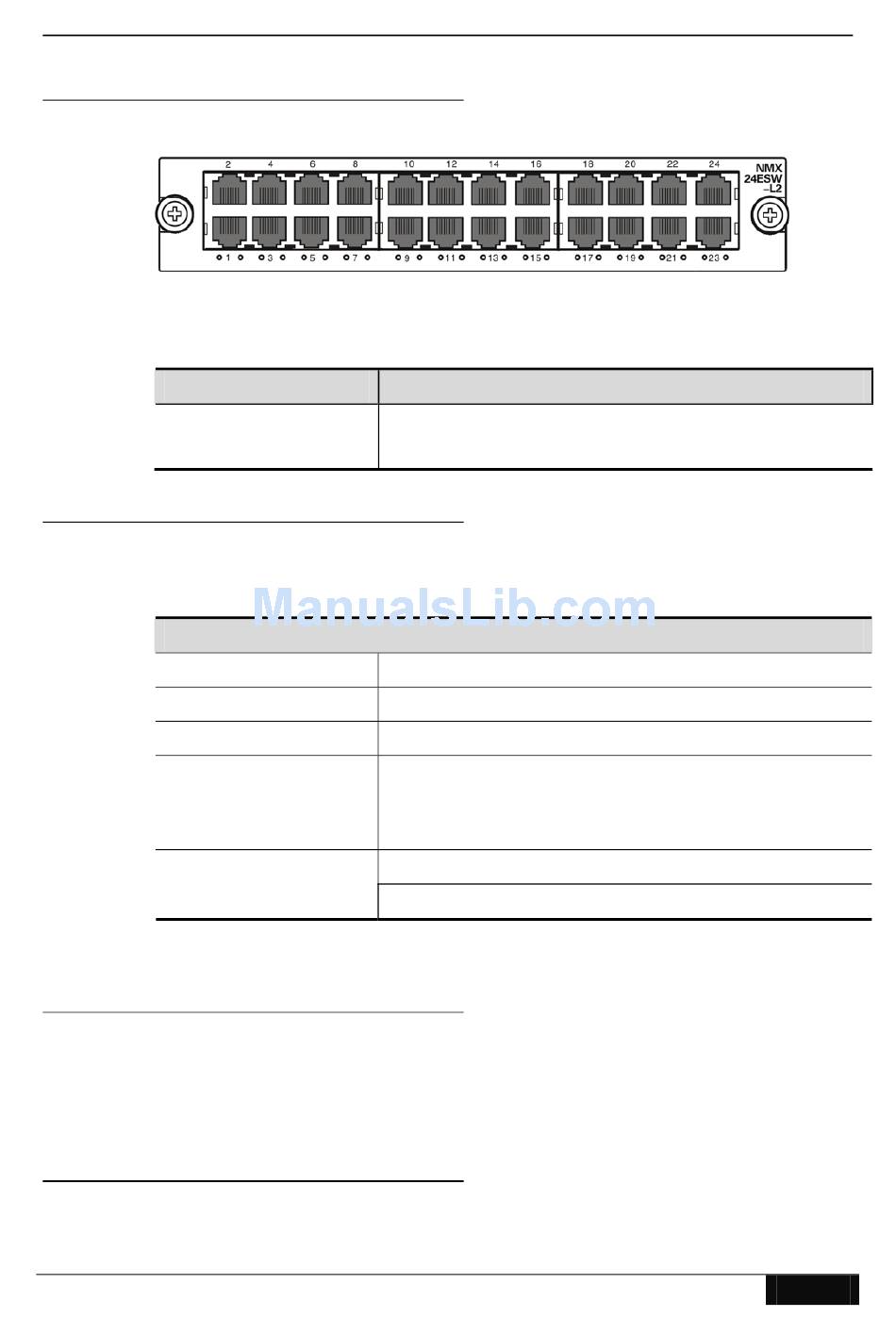

Figure 1-23 Appearance of NMX-24ESW-L2 interface card
The interface card includes the status indicator of each RJ45 port-LINK/ACT. .
Panel indicator description:
Indicator
Link/ACT
1.4.2.2 Attributes of the NMX-4ESW-L2 Card
The NMX-24ESW-L2 module offers 24 10/100M interfaces.
The basic attributes are as below:
NMX-24ESW-12
Protocol
Number of ports
Interface type
Environment
EMC
1.4.2.3
Module Cable
The SIC-24ESW module uses standard Cat-5 8-core non-shield twist pairs with RJ-45
connectors.
For the definition of the cable signal, refer to the 3.5.3 section in this chapter.
1.4.3

NMX-2GEH Interface Card

NMX card model: NMX-2GEH
Description
Solid on means the link is through, OFF not connected.
Flash means the data is transmitting.
802.3-2000
24
10Base-T/100Base-TX interface
Operating temperature: 0°C ~45°C
Storage temperature: -20°C ~70°C
Operating humidity: 10%~90%
EMI: GB 9254-1998 Class A
EMS: GB/T 17618-1998
Chapter 1 Product Overview
1-59
