Installation Manual
 Certification
Passed the test of telecom access network equipment by the MII

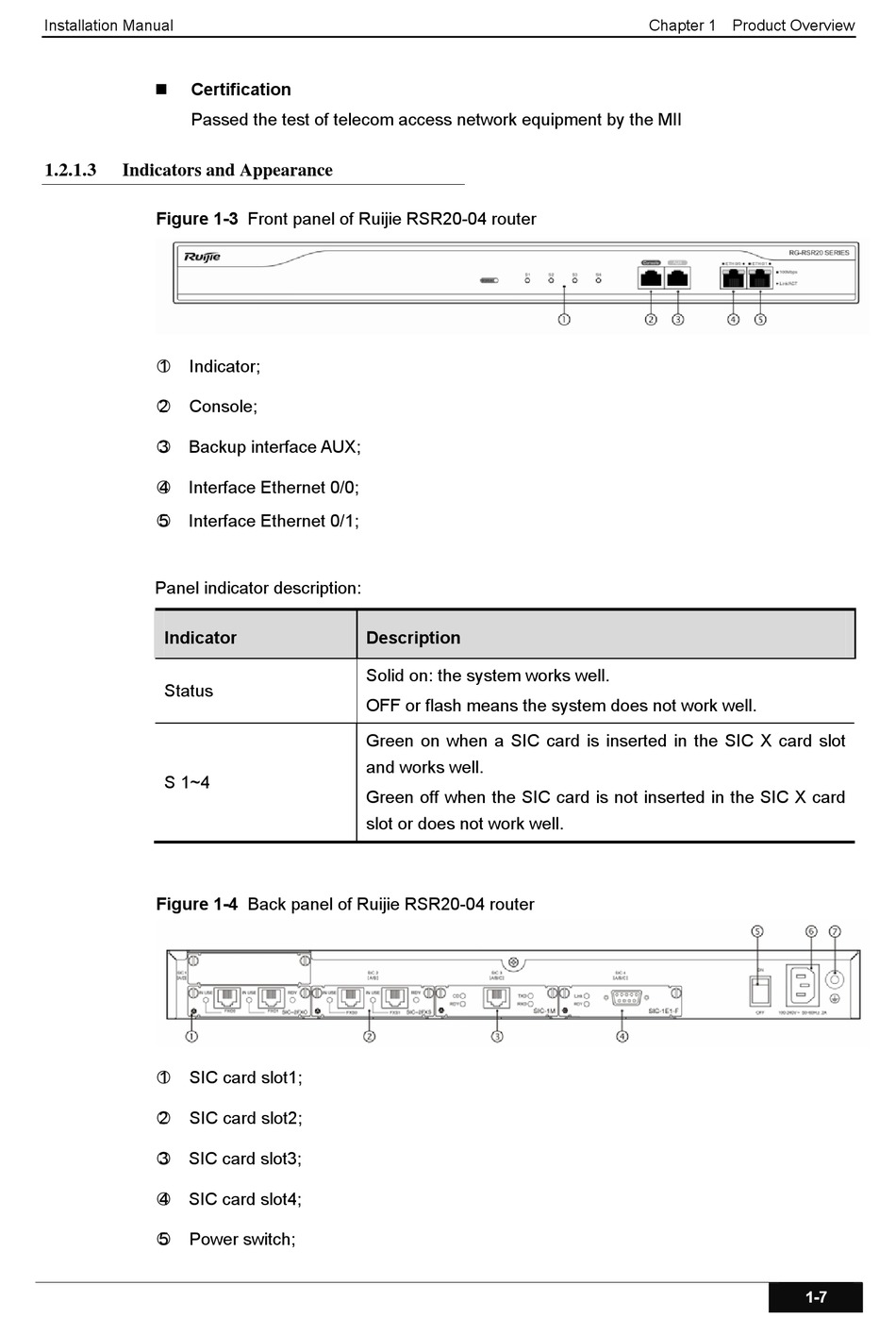

1.2.1.3 Indicators and Appearance
Figure 1-3 Front panel of Ruijie RSR20-04 router
○ 1 Indicator;
○ 2 Console;
○ 3 Backup interface AUX;
○ 4 Interface Ethernet 0/0;
○ 5 Interface Ethernet 0/1;
Panel indicator description:
Indicator
Status
S 1~4
Figure 1-4 Back panel of Ruijie RSR20-04 router
○ 1 SIC card slot1;
○ 2 SIC card slot2;
○ 3 SIC card slot3;
○ 4 SIC card slot4;
○ 5 Power switch;
Description
Solid on: the system works well.
OFF or flash means the system does not work well.
Green on when a SIC card is inserted in the SIC X card slot
and works well.
Green off when the SIC card is not inserted in the SIC X card
slot or does not work well.
Chapter 1 Product Overview
1-7
