Suzuki Liana RH418 Supplementary Service Manual page 153

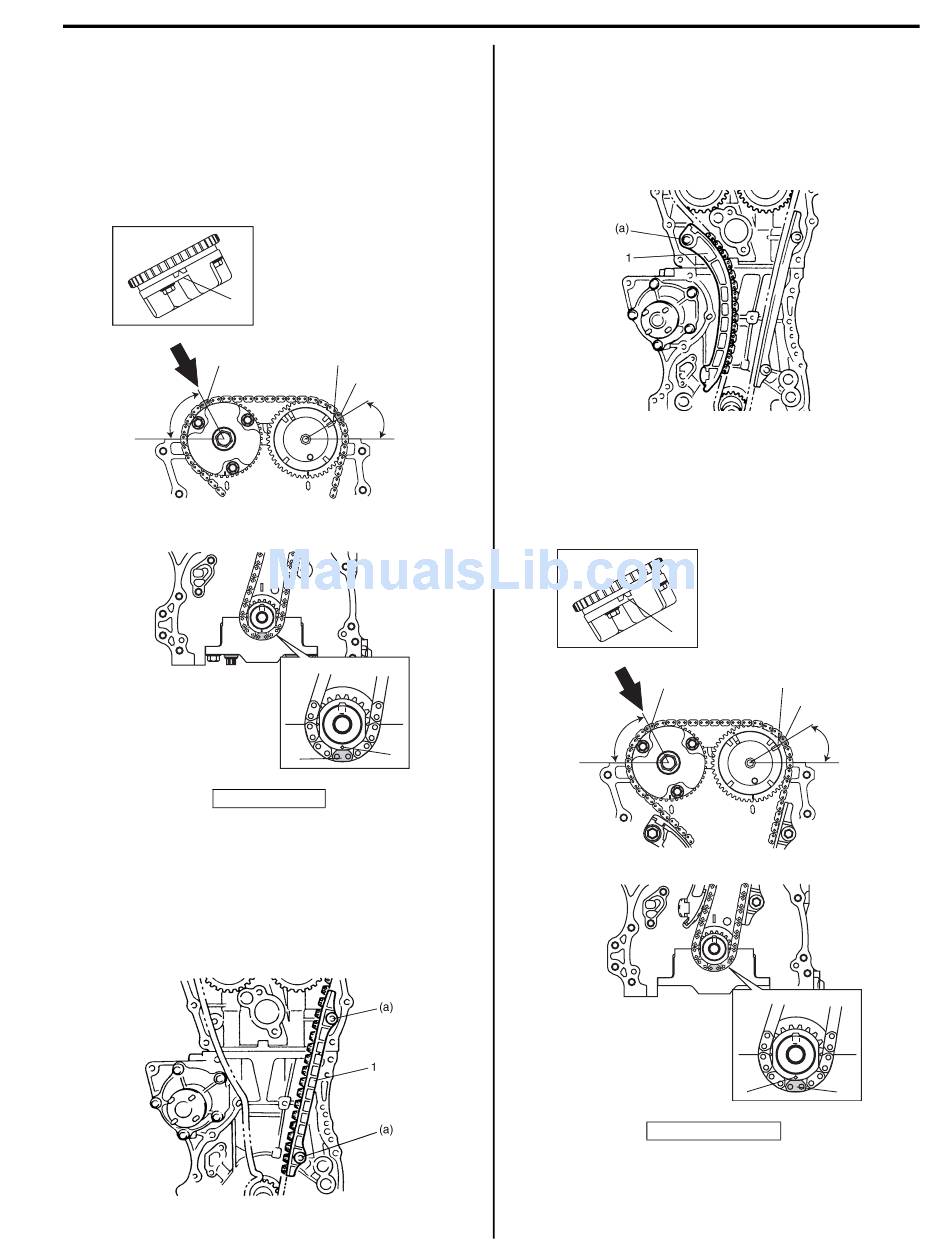

3) Install timing chain by aligning dark blue plate (1) of
timing chain and triangle mark (2) on camshaft
timing sprocket as shown in the figure.
4) Fit crankshaft timing sprocket to timing chain by
aligning gold plate (3) of timing chain and circle mark
(4) on crankshaft timing sprocket. Then install
crankshaft timing sprocket fitted with chain to
crankshaft.
[A]
2
A
1
Approx.
60˚
[A]: View A
5) Apply engine oil to sliding surface of timing chain
No.1 guide (1) and install it as shown in the figure.
Tighten guide bolts to specified torque.
Tightening torque
Timing chain No.1 guide bolt (a): 9 N·m (0.9 kgf-
m, 6.5 lb-ft)
2
1
Approx.
30˚
4
3
I3RH0B140034-03
I2RH0B140062-01
6) Apply engine oil to sliding surface of chain tensioner
(1) and install chain tensioner and spacer.
Tighten tensioner bolt to specified torque.
Tightening torque
Timing chain tensioner bolt (a): 25 N·m (2.5 kgf-
m, 18.0 lb-ft)
7) Check that match marks (1) on intake and exhaust
camshaft timing sprockets are in match with dark
blue plates (2) of timing chain and match mark (3) on
crankshaft timing sprocket are in match with gold
plate (4) of timing chain.
[A]
1
A
2
Approx.
60˚
[A]: View A
Engine Mechanical: 1D-27
I2RH0B140063-01
1
2
Approx.
30˚
3
4
I3RH0B140035-03
