▼ To Inspect the Retainers

The two retainers on the line card serve three purposes:
Align the line card for proper insertion into the chassis.
■
Allow final insertion of the line card into the chassis and simplify the physical
■
connection of the line card connectors to the midplane connectors.
Allow extraction of the line card from the chassis and simplify the physical
■
disconnection of the line card connectors from the midplane connectors.
The retainer's design is shown in
●
Ensure that the pieces of the retainer look finished, move smoothly, do not
bind, or do not feel loose or sloppy in any way.
See
FIGURE 9-2
76 Sun Datacenter Switch 3456 Installation Guide • December 2008
.

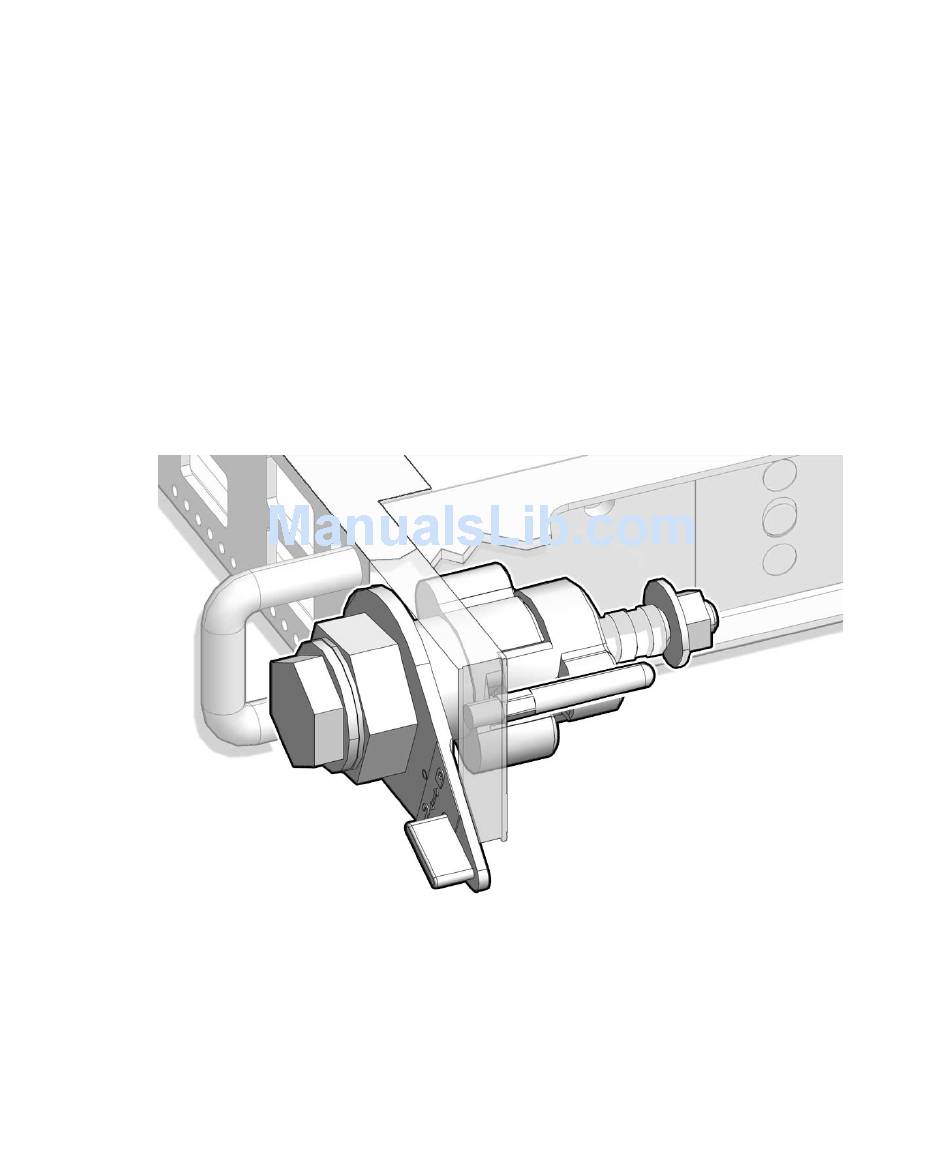

FIGURE 9-2
Retainer Design
.
FIGURE 9-2
