▼ To Inspect the Retainers

The two retainers on the fabric card serve three purposes:
Align the fabric card for proper insertion into the chassis.
■
Allow final insertion of the fabric card into the chassis and simplify the physical
■
connection of the fabric card connectors to the midplane connectors.
Allow extraction of the fabric card from the chassis and simplify the physical
■
disconnection of the fabric card connectors from the midplane connectors.
The retainer's design is shown in
●
Ensure that the pieces of the retainer look finished, move smoothly, do not
bind, or do not feel loose or sloppy in any way.
See
FIGURE 8-2
62 Sun Datacenter Switch 3456 Installation Guide • December 2008
.

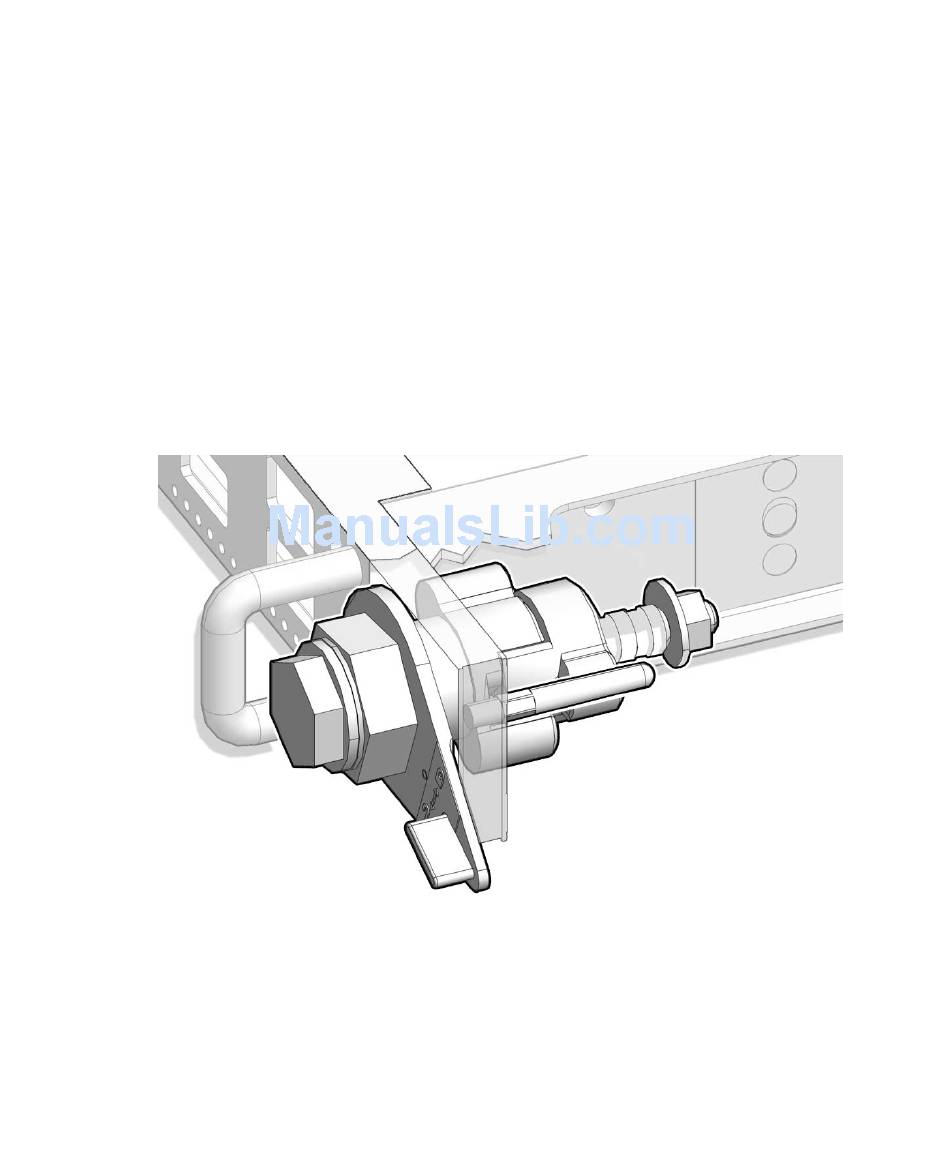

FIGURE 8-2
Retainer Design
.
FIGURE 8-2
