Inspecting Line Cards

Inspect the line cards that they are ready for installation.

▼ To Inspect the Line Card iTRAC Connectors

The large iTRAC connectors on line cards are the receptacles for the midplane
connector pins. These connectors are checked just as meticulously as the midplane
connector pins. However, you must verify that no connectors are damaged and no
holes are blocked.
You need the following tools:
Bright flashlight
■
Magnifying glass or loupe
■
Dental type metal pick
■
1. Unwrap the line card from its antistatic packaging.
2. Place the line card on a work surface with the iTRAC connectors facing you.

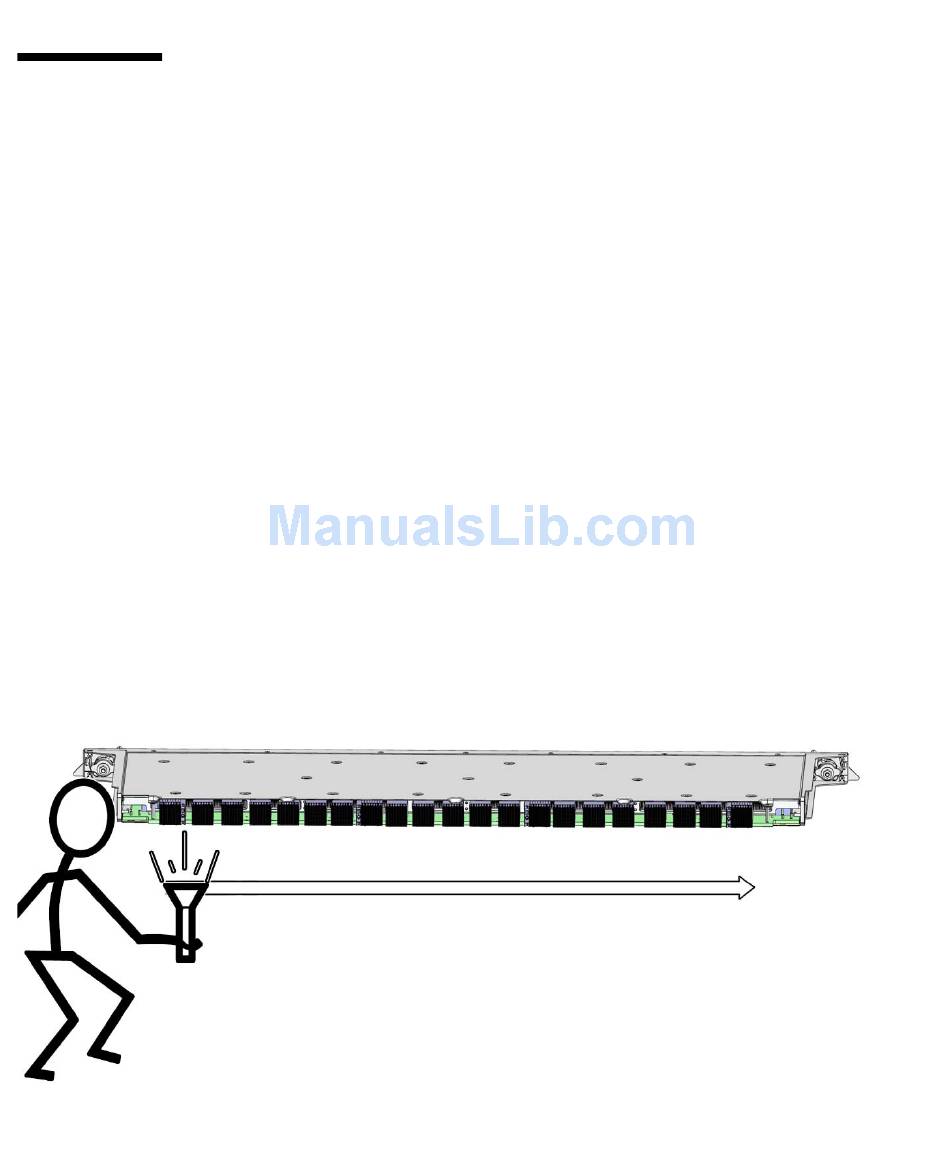

3. Using the flashlight positioned to the side and above you, look at the holes of
the left-end connector.
Look at the holes straight on. See
Inspecting Line Card Connectors
FIGURE 9-1
74 Sun Datacenter Switch 3456 Installation Guide • December 2008
.
FIGURE 9-1
