Line Card Connector Nomenclature

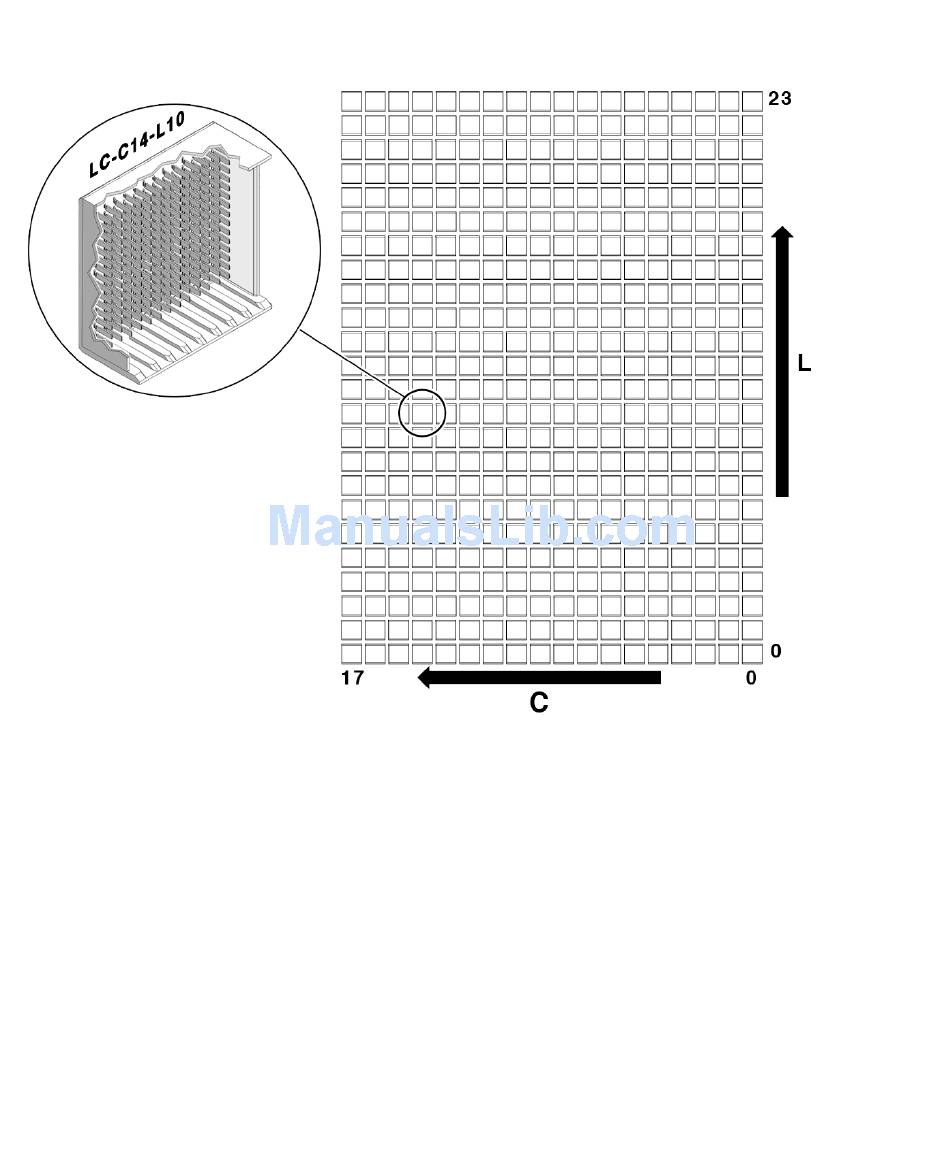

FIGURE 7-4
The connector number is located above each connector and is unique. For
example, the lower-left connector number is LC-C17-L0. The upper-right
connector number is LC-C0-L23. The connector number is decoded as follows:
■
■
■
The origin of this coordinate system is the lower right corner, LC-C0-L0. In
FIGURE 7-4
5. Continue right to the next connector and repeat from
6. After you have checked the far right connector, visually inspect any connectors
you noted previously.
52 Sun Datacenter Switch 3456 Installation Guide • December 2008
LC – Line card.
Cc – Column c, where c is 0 through 17.
Ld – Level d, where d is 0 through 23.
, the connector identified is LC-C14-L10.
Step 3.
