8. Flip the Molex tool over and use the tube in attempt to straighten the pin.
If the pin cannot be straightened satisfactorily, or might break if straightened,
replace it.
9. Remove the pin following
10. If the pin is too bent for the Molex tool, see
Needle-Nose Pliers" on page

▼ To Remove a Pin With Needle-Nose Pliers

Perform this procedure only when the Molex tool is incapable of removing the pin.
You need micro-tipped needle-nose pliers.
1. With one hand, grasp the pin with the very tip of the needle-nose pliers.
2. Squeeze the pliers sufficiently to grip the pin for extraction.
3. With the other hand, steady the pliers in a position for perpendicular
extraction.
See

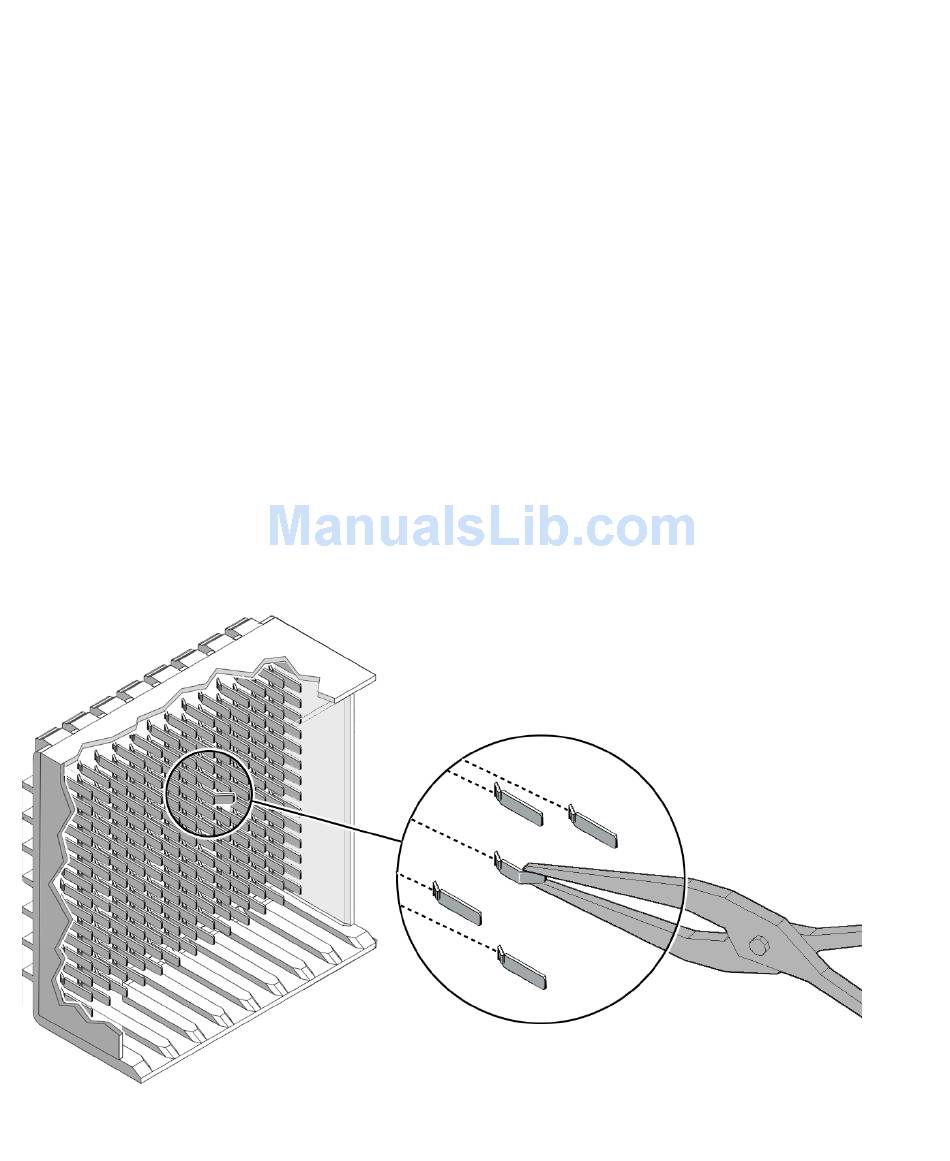

Using Pliers to Pull a Pin
FIGURE 7-7
56 Sun Datacenter Switch 3456 Installation Guide • December 2008
.
FIGURE 7-7
Step 2.
"To Remove a Pin With
56.
