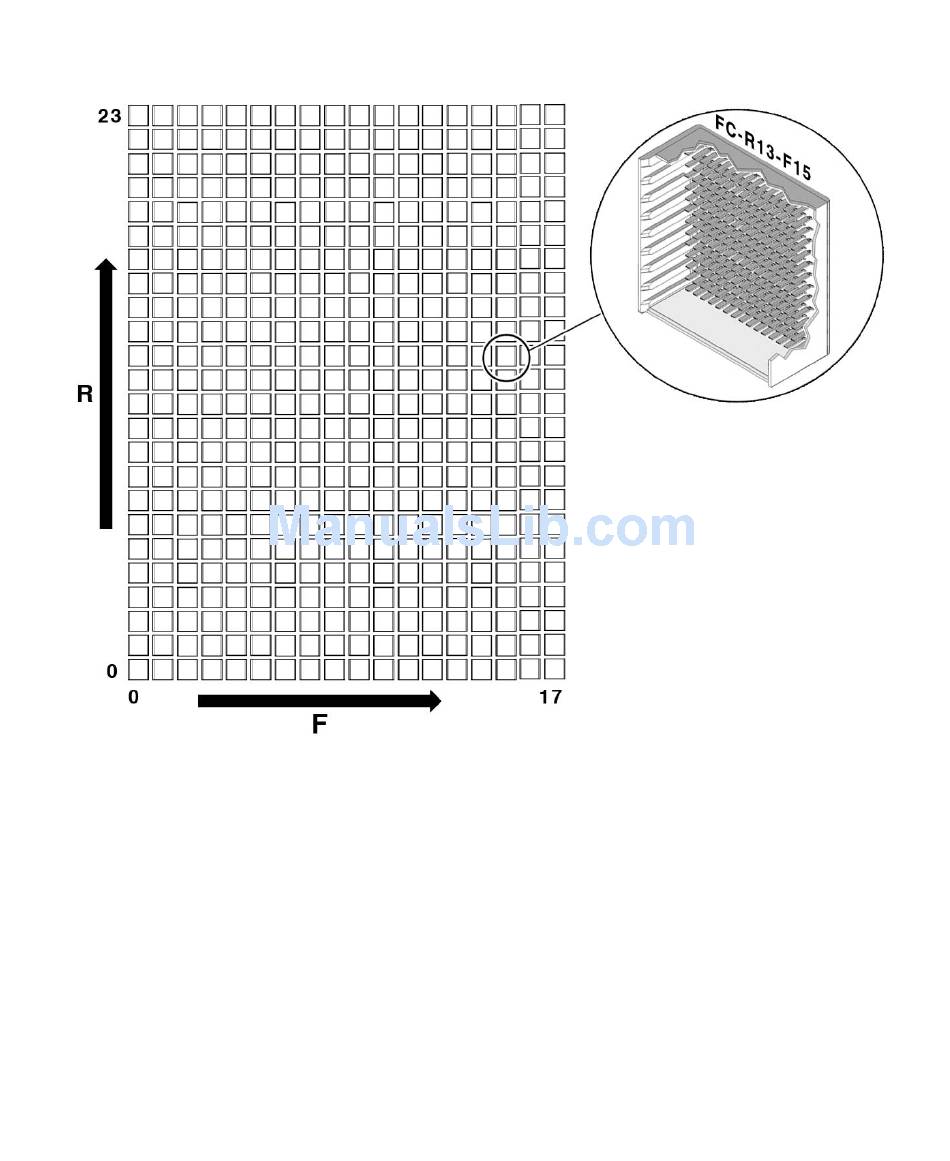

Fabric Card Connector Nomenclature
FIGURE 7-2
The connector number is located above each connector and is unique. For
example, the upper-left connector number is FC-R23-F0. The lower-right
connector number is FC-R0-F17. The connector number is decoded as follows:
■
■
■
The origin of this coordinate system is the lower-left corner, FC-R0-F0. In
FIGURE 7-2
5. Continue down to the next connector and repeat from
6. After you have checked the bottom connector, visually inspect any connectors
you noted previously.
FC – Fabric card.
Ra – Row a, where a is 0 through 23.
Fb – Frame b, where b is 0 through 17.
, the connector identified is FC-R13-F15.
Step
Chapter 7 Inspecting and Repairing Pins
3.
