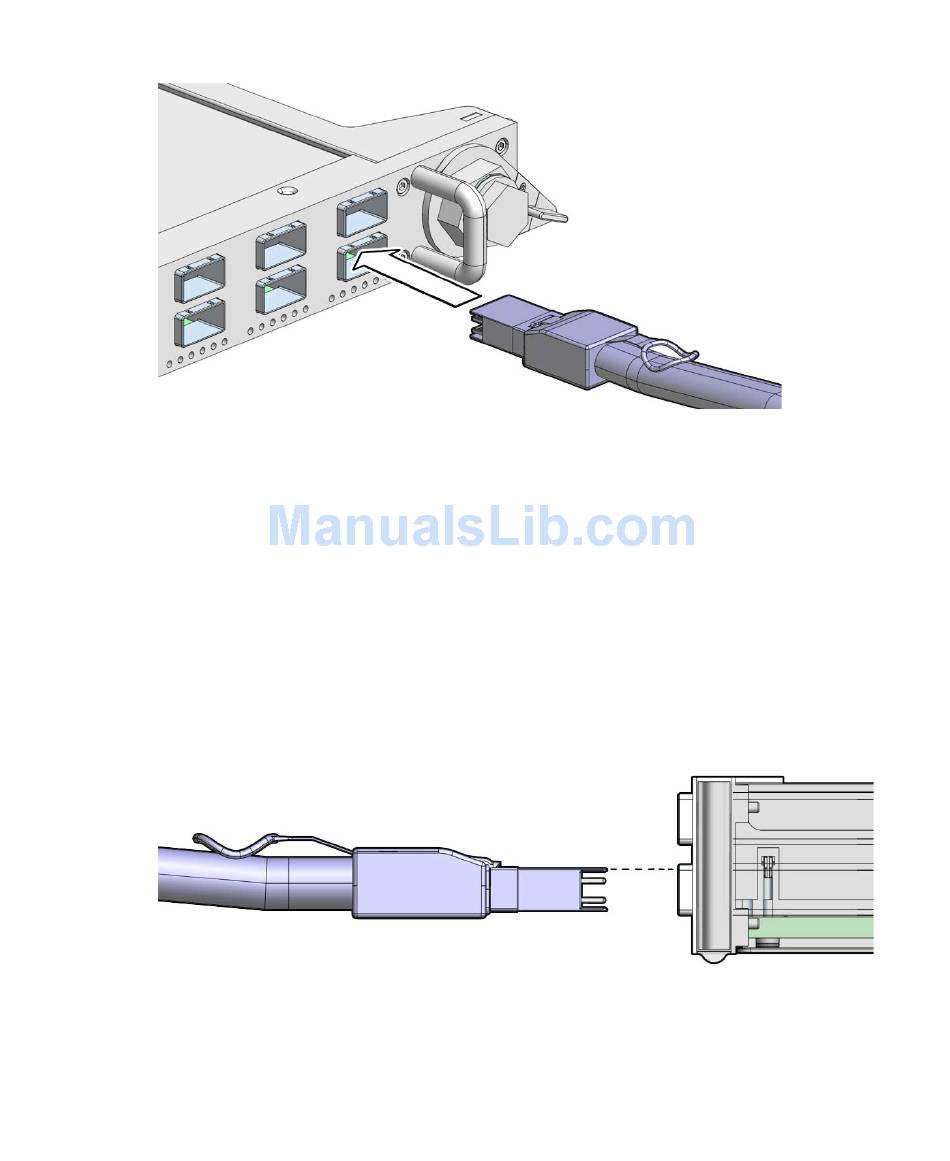

FIGURE 11-4
a. Visually inspect the cable connector to see whether the shell is not bent and
b. Ensure that the retraction strap is forward.
c. Orient the cable connector to the line card iPASS connector squarely and
FIGURE 11-5
d. Slowly move the connector in.
100 Sun Datacenter Switch 3456 Installation Guide • December 2008
Plugging in a IB Cable
is parallel to the inner boards.
If the shell is bent or damaged, get a different cable.
horizontally.
Ensure that the upper shell just touches the underside of the top of the
connector on the line card.
See .
FIGURE 11-5
Checking the IB Cable Connector
As you slide the connector in, the top of the shell should scrape against the
underside of the top of the iPASS connector on the line card.
