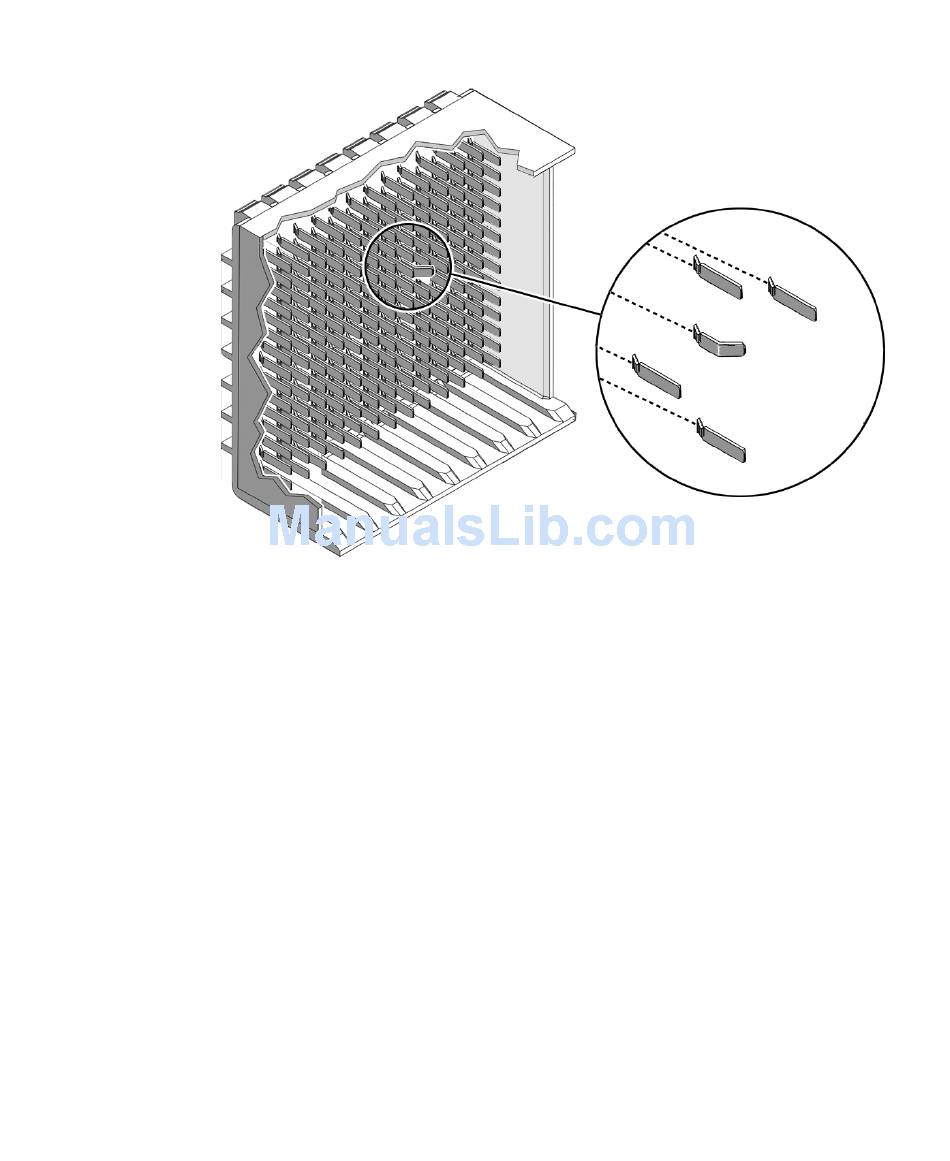

Locating the Bent Pin and Surrounding Pins
FIGURE 7-6
2. Use the Molex tool to remove the pin (if any) above the bent pin.
a. Slide the Molex tool completely over the pin.
b. Activate the lock to grasp the pin.
c. Press the trigger to pull the pin out.
d. Push the ejector back in to release the pin and reset the tool.
3. Set the pin aside.
4. Use the Molex tool repeating
pin.
5. Set the pin aside.
6. Repeat Step 2 to remove the pins to the left and right sides of the bent pin (if
any).
7. Set these pins aside.
The bent pin is now exposed.
Step 2 to remove the pin (if any) below the bent
