c. Repeat from
cable plates are removed.
Step 1
2. Repeat
▼ To Install Cable Trees
Note – Two people are required to install the cable trees. One person must hold the
weight of the tree for an extended time.
1. Identify the cable trees.
The cable trees are symmetrical and their orientation for installation can be
difficult to determine. When properly installed, the fluted branches of the tree
point forward, with the fluting on the underside of the branches. The top surface
of all branches is smooth. See

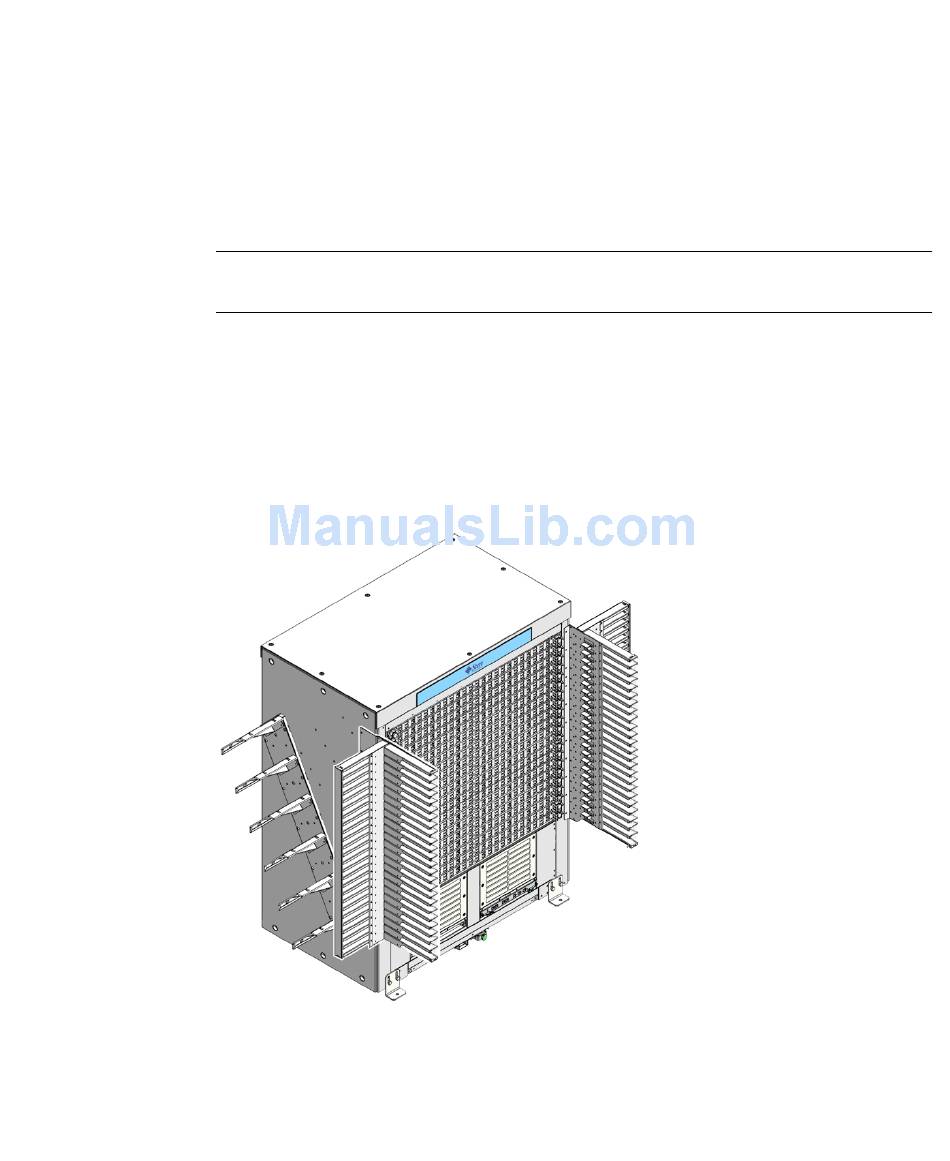

Cable Tree Placement
FIGURE 11-2
2. Set the cable trees upright at their respective corners of the switch chassis.
Step a
for the next lower cable plate and continue until all six
for the left side of the switch.
FIGURE 11-2
.
Chapter 11
Cabling the Switch
95
