7. Using the magnifying glass and the flashlight positioned above you, look at the
pins of the connector.
Look at the pins straight on. See
FIGURE 7-3
8. Look for any light reflection inconsistencies.
A bent pin reflects light differently, either brighter or darker than the surrounding
pins.
Note – Do not look at the individual pins, rather look at all of the connector's pins
as a whole. A bent pin will be apparent.
9. Identify the pin that needs repair or replacement and note this.
10. Look for any contaminants that might be present.
These contaminants might appear as light dots near the pins.
11. Move your head to the next suspect connector and inspect its pins, repeating
Step 7
12. Continue in this manner for all suspect connectors.
13. Repeat
50 Sun Datacenter Switch 3456 Installation Guide • December 2008
Inspecting the Pins (Fabric Card)
through Step 10.
Step 1 Step 12
to for fabric card slot 1 to fabric card slot 17.
.

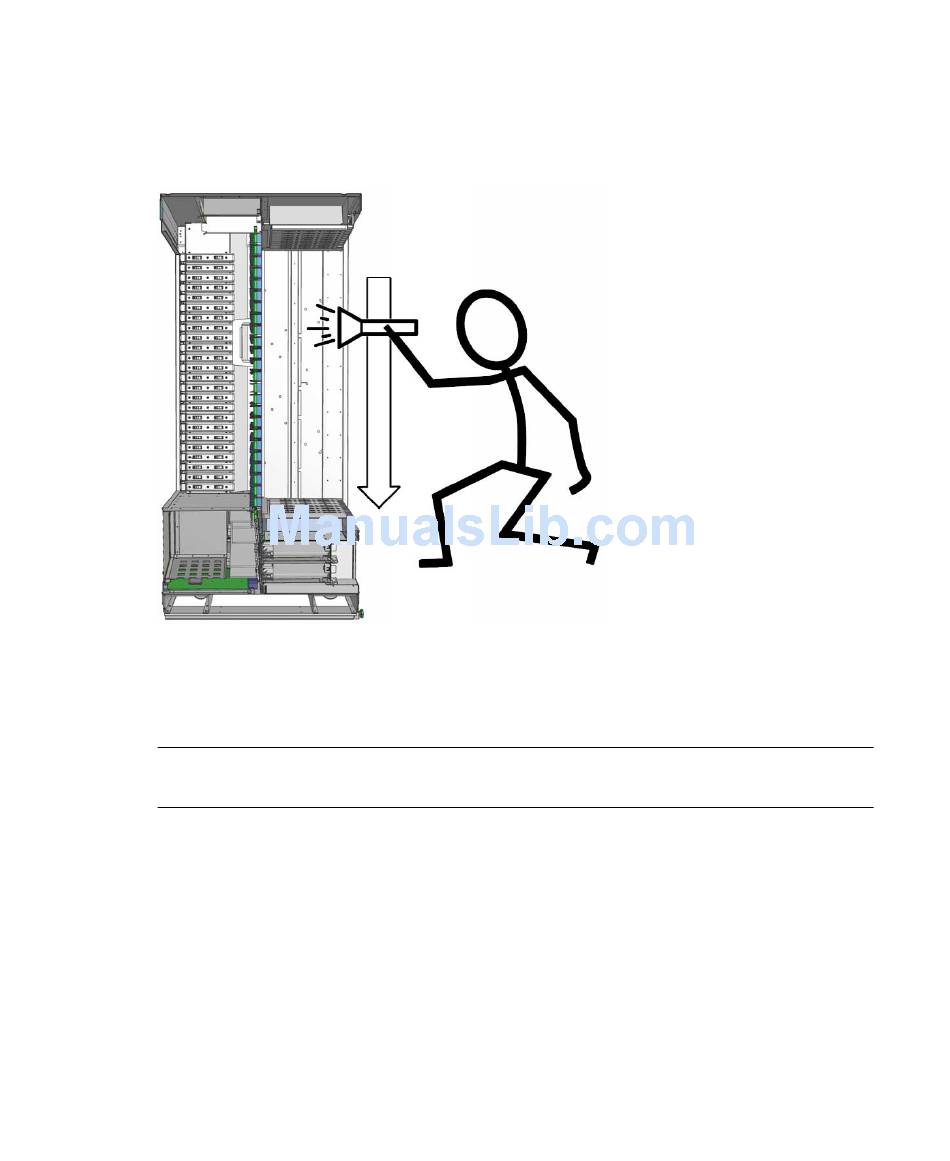

FIGURE 7-3
