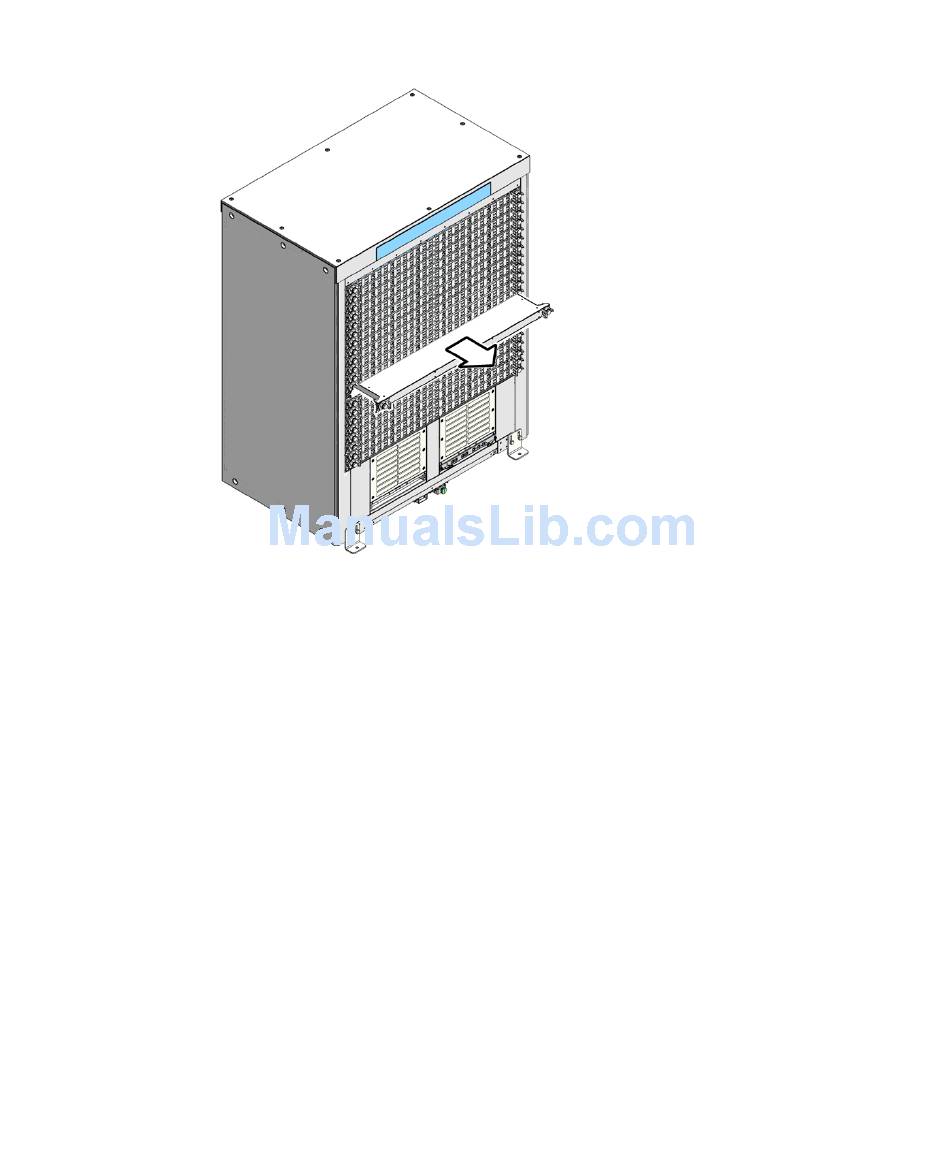

Removing the Filler Panel
FIGURE 6-4
4. Repeat from Step 1

▼ To Install the Line Card Filler Panels

If the Sun Datacenter Switch 3456 is to be configured with less than 24 line cards, the
vacant slots must have filler panels installed to maintain proper airflow and thermal
management.
1. Grasp the handles at each end of the filler panel and lift the panel to the vacant
slot.
2. Slide the filler panel half-way into the chassis.
3. Turn the levers counter-clockwise to the unlocked position.
See
FIGURE 6-5
for any other filler panels to be removed.
.
Chapter 6 Installing the Chassis 41
