If the cable stops or binds after about 1/4 in (5 mm) travel, back out and
■
repeat from Step
If the connector stops or binds with about 1/8 in (2 mm) still to go, back out
■
and repeat from
e. Continue to push the connector in until the hooks catch onto the top of the
connector on the line card.
4. Curve the cable to the right through the branches of the cable tree.
See .
FIGURE 11-6

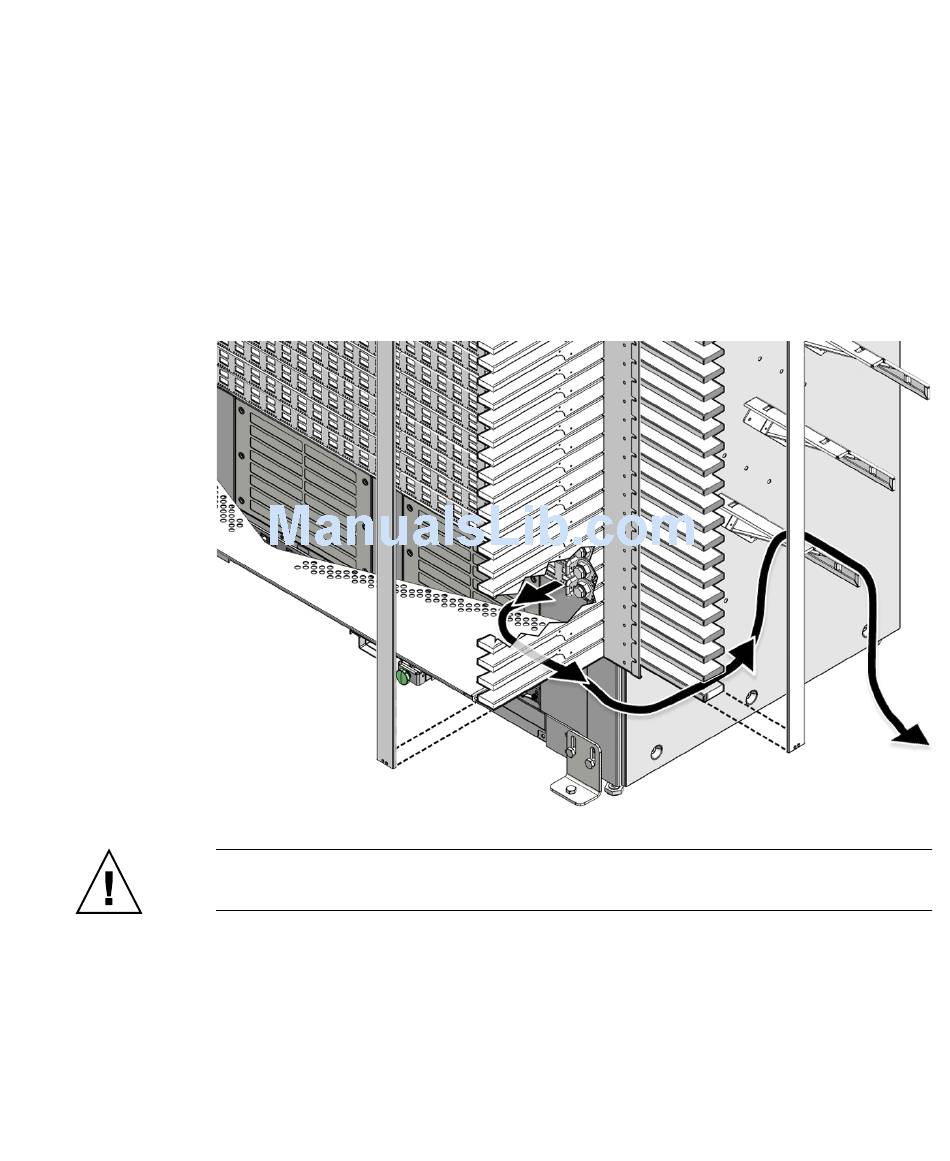

Threading the Cable Through the Cable Tree
FIGURE 11-6
Caution – Do not force a bend radius of less than 5 inches (127 mm). Any bend
tighter than this damages the inner fibers of the cable, rendering it useless.
5. Place the cable over the cable plate and move the cable against the chassis.
See .
FIGURE 11-6
6. Repeat Step 3 for the second cable at iPASS connector 0A.
7. Curve the cable to the left through the branches of the cable tree.
c.
Step c.
