Pulse Measurements Mode – Option 330
Pulse Measurement Settings
— Then
— Then choose from the following:
Trigger Level
Used when Trigger Type = Internal AND Auto Trigger = OFF (Manual).
— Press Sweep 3.
— Then Trigger.
— Then
— Then set the trigger level using the numeric keypad, the
rotary knob. A line appears on Tr 1 at the current trigger level setting. Data
acquisition occurs when the RF input signal crosses the line. This setting
can be used with either Positive or Negative edge triggering.
Trigger Settings Annotation

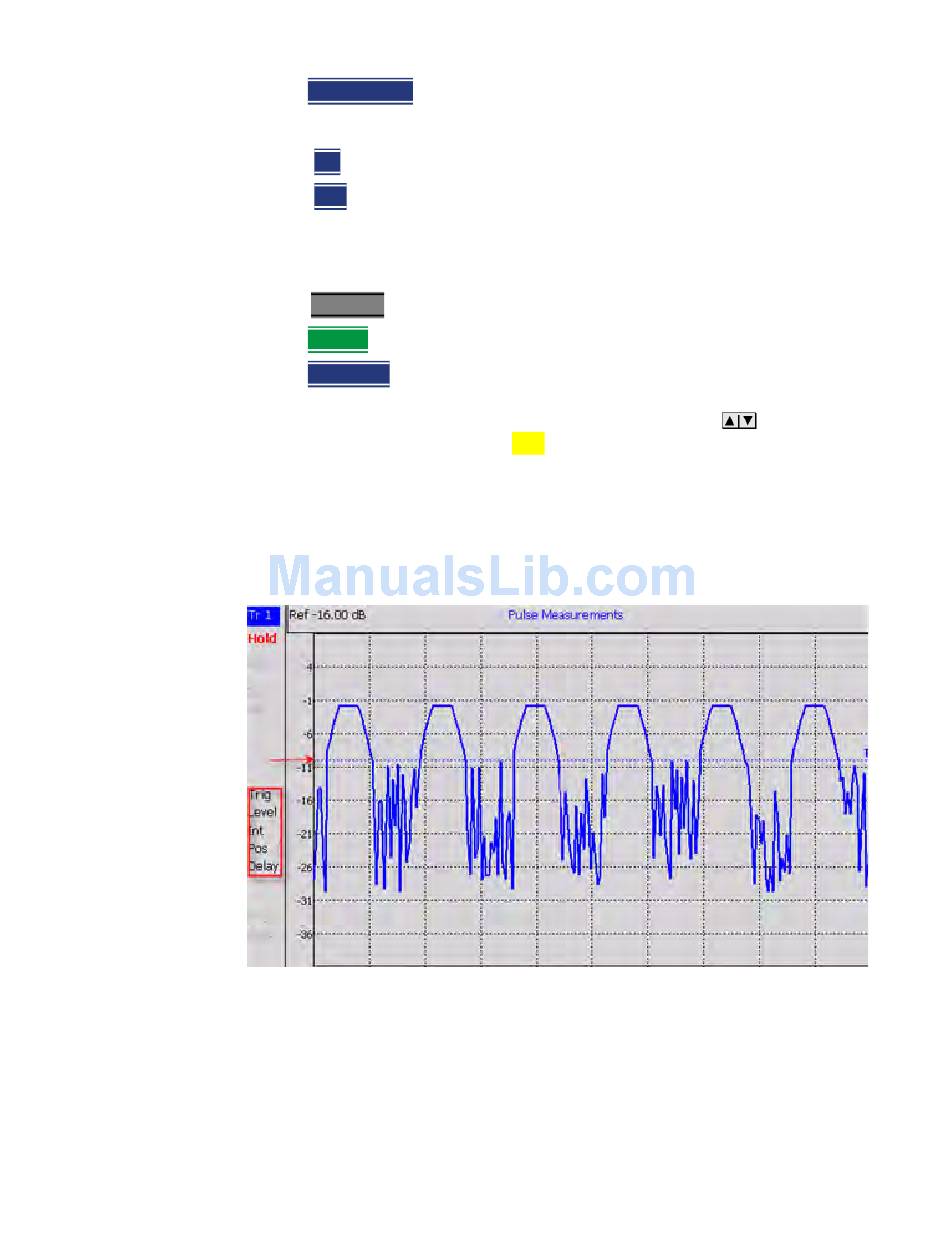

Trigger settings are annotated on the FieldFox screen as highlighted in
the following image:
In the previous graphic, the settings are: Trig Level = -10 dBm, Trig Type (Int),
Pos Slope (/), Delay
13-10
Auto Trigger.
— ON Trigger level is determined by the USB Power Sensor firmware.
— OFF The trigger level is set manually using the Trigger Level setting.
Trig Level.
arrows, or the
Keysight N9912-90001 User's Guide
red in
