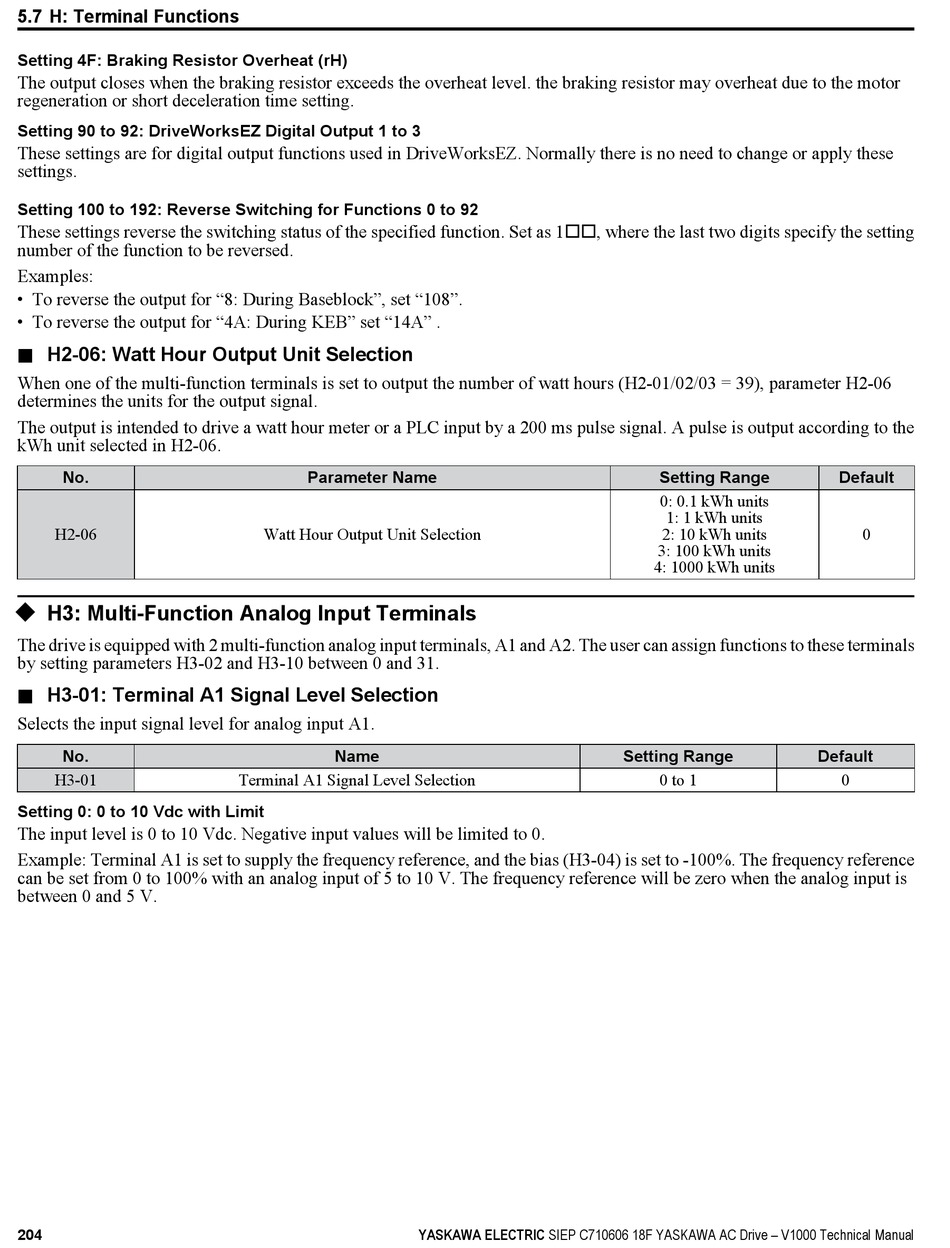

5.7 H: Terminal Functions
Setting 4F: Braking Resistor Overheat (rH)
The output closes when the braking resistor exceeds the overheat level. the braking resistor may overheat due to the motor
regeneration or short deceleration time setting.
Setting 90 to 92: DriveWorksEZ Digital Output 1 to 3
These settings are for digital output functions used in DriveWorksEZ. Normally there is no need to change or apply these
settings.
Setting 100 to 192: Reverse Switching for Functions 0 to 92
These settings reverse the switching status of the specified function. Set as 1oo, where the last two digits specify the setting
number of the function to be reversed.
Examples:
• To reverse the output for "8: During Baseblock", set "108".
• To reverse the output for "4A: During KEB" set "14A" .
n
H2-06: Watt Hour Output Unit Selection
When one of the multi-function terminals is set to output the number of watt hours (H2-01/02/03 = 39), parameter H2-06
determines the units for the output signal.
The output is intended to drive a watt hour meter or a PLC input by a 200 ms pulse signal. A pulse is output according to the
kWh unit selected in H2-06.
No.
H2-06
u

H3: Multi-Function Analog Input Terminals

The drive is equipped with 2 multi-function analog input terminals, A1 and A2. The user can assign functions to these terminals
by setting parameters H3-02 and H3-10 between 0 and 31.
n
H3-01: Terminal A1 Signal Level Selection
Selects the input signal level for analog input A1.
No.
H3-01
Setting 0: 0 to 10 Vdc with Limit
The input level is 0 to 10 Vdc. Negative input values will be limited to 0.
Example: Terminal A1 is set to supply the frequency reference, and the bias (H3-04) is set to -100%. The frequency reference
can be set from 0 to 100% with an analog input of 5 to 10 V. The frequency reference will be zero when the analog input is
between 0 and 5 V.
204
Parameter Name
Watt Hour Output Unit Selection
Name
Terminal A1 Signal Level Selection
YASKAWA ELECTRIC SIEP C710606 18F YASKAWA AC Drive – V1000 Technical Manual
Setting Range
0: 0.1 kWh units
1: 1 kWh units
2: 10 kWh units
3: 100 kWh units
4: 1000 kWh units
Setting Range
0 to 1
Default
0
Default
0
