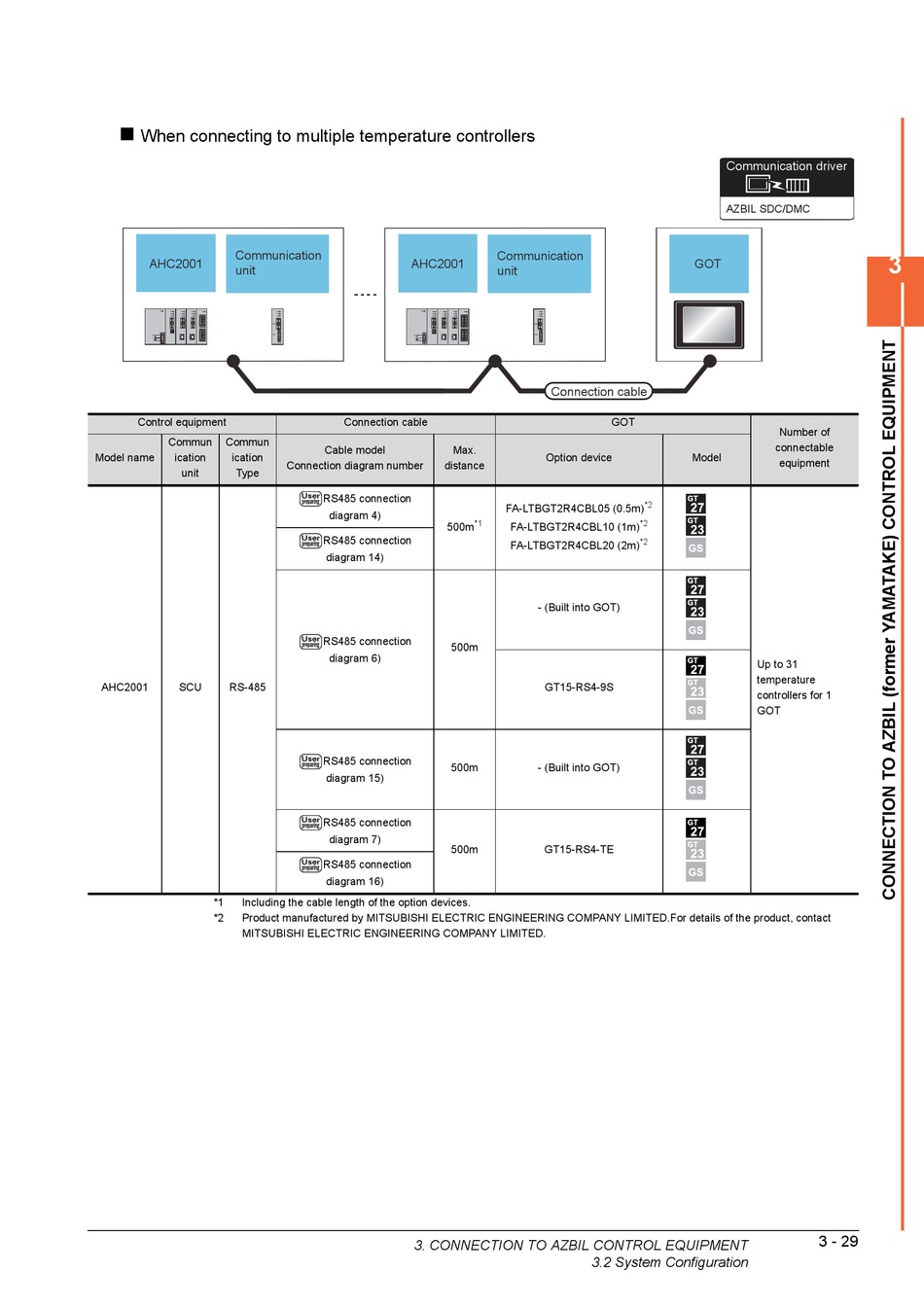

Mitsubishi Electric GOT2000 Connection Manual page 121


When connecting to multiple temperature controllers
Communication
AHC2001
unit
Control equipment
Commun Commun
Model name ication ication
unit Type
AHC2001 SCU RS-485
*1 Including the cable length of the option devices.
*2 Product manufactured by MITSUBISHI ELECTRIC ENGINEERING COMPANY LIMITED.For details of the product, contact
MITSUBISHI ELECTRIC ENGINEERING COMPANY LIMITED.
AHC2001
Connection cable
Cable model Max.
Connection diagram number distance
RS485 connection
diagram 4)
500m
RS485 connection
diagram 14)
RS485 connection
500m
diagram 6)
RS485 connection
500m
diagram 15)
RS485 connection
diagram 7)
500m
RS485 connection
diagram 16)
3. CONNECTION TO AZBIL CONTROL EQUIPMENT
Communication
unit
Connection cable
GOT
Option device
*2
FA-LTBGT2R4CBL05 (0.5m)
*1 *2
FA-LTBGT2R4CBL10 (1m)
*2
FA-LTBGT2R4CBL20 (2m)
- (Built into GOT)
GT15-RS4-9S
- (Built into GOT)
GT15-RS4-TE
3.2 System Configuration
Communication driver
AZBIL SDC/DMC
GOT
Number of
connectable
Model
equipment
Up to 31
temperature
controllers for 1
GOT
3 - 29
3
