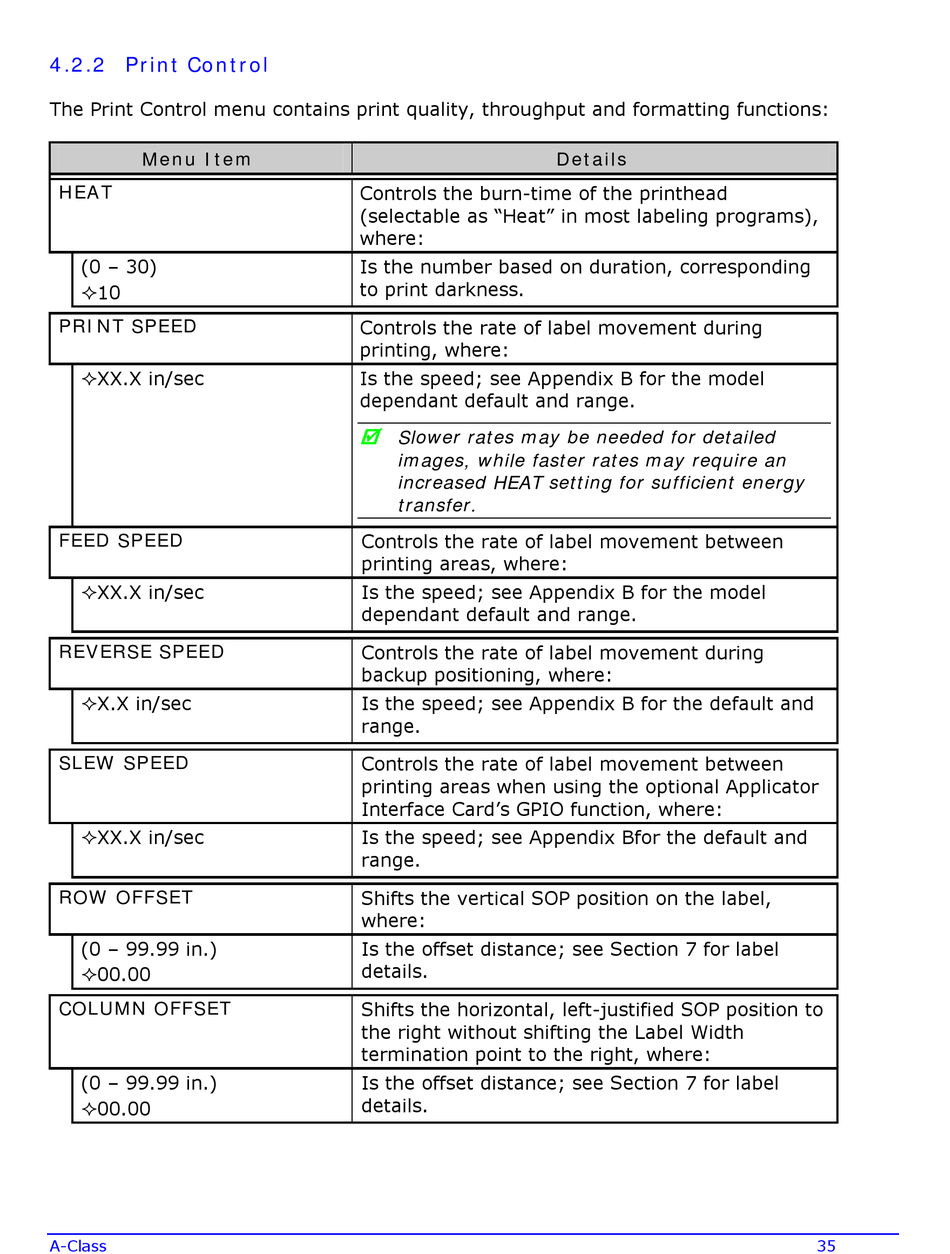

4.2.2 Print Control

The Print Control menu contains print quality, throughput and formatting functions:
Menu Item
HEAT
(0 – 30)
10
PRINT SPEED
XX.X in/sec
FEED SPEED
XX.X in/sec
REVERSE SPEED
X.X in/sec
SLEW SPEED
XX.X in/sec
ROW OFFSET
(0 – 99.99 in.)
00.00
COLUMN OFFSET
(0 – 99.99 in.)
00.00
A-Class
Controls the burn-time of the printhead
(selectable as "Heat" in most labeling programs),
where:
Is the number based on duration, corresponding
to print darkness.
Controls the rate of label movement during
printing, where:
Is the speed; see Appendix B for the model
dependant default and range.
 Slower rates may be needed for detailed
images, while faster rates may require an
increased HEAT setting for sufficient energy
transfer.
Controls the rate of label movement between
printing areas, where:
Is the speed; see Appendix B for the model
dependant default and range.
Controls the rate of label movement during
backup positioning, where:
Is the speed; see Appendix B for the default and
range.
Controls the rate of label movement between
printing areas when using the optional Applicator
Interface Card's GPIO function, where:
Is the speed; see Appendix Bfor the default and
range.
Shifts the vertical SOP position on the label,
where:
Is the offset distance; see Section 7 for label
details.
Shifts the horizontal, left-justified SOP position to
the right without shifting the Label Width
termination point to the right, where:
Is the offset distance; see Section 7 for label
details.
Details
