3.3.2 Left Hand Models

Load ribbon as follows:

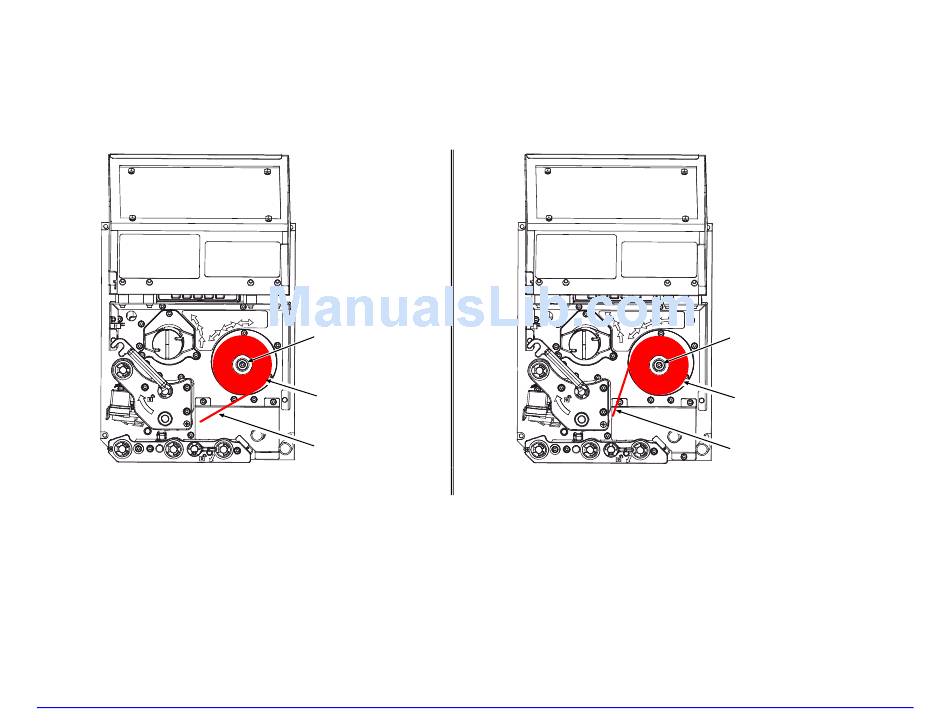

1. Orient the unwind position of the Ribbon according to the coated side (CSI or CSO) and then slide the Ribbon Roll completely onto
the Ribbon Supply Hub, as shown below:
CSO Ribbon
2. With the Head Lift Lever raised, route the Ribbon under the Lower Idler, over the Ribbon Shield and Upper Idler, and then
counterclockwise around to the Ribbon Take-Up Hub.
3. Rotate the Ribbon Take-Up Hub counterclockwise several times to secure the Ribbon.
4. Lower and lock the Head Lift Lever then close the access cover.
A-Class
Ribbon
Supply Hub
CSO Ribbon
Roll
Ribbon
Ribbon
Supply Hub
CSI Ribbon
Roll
Ribbon
CSI Ribbon
25
