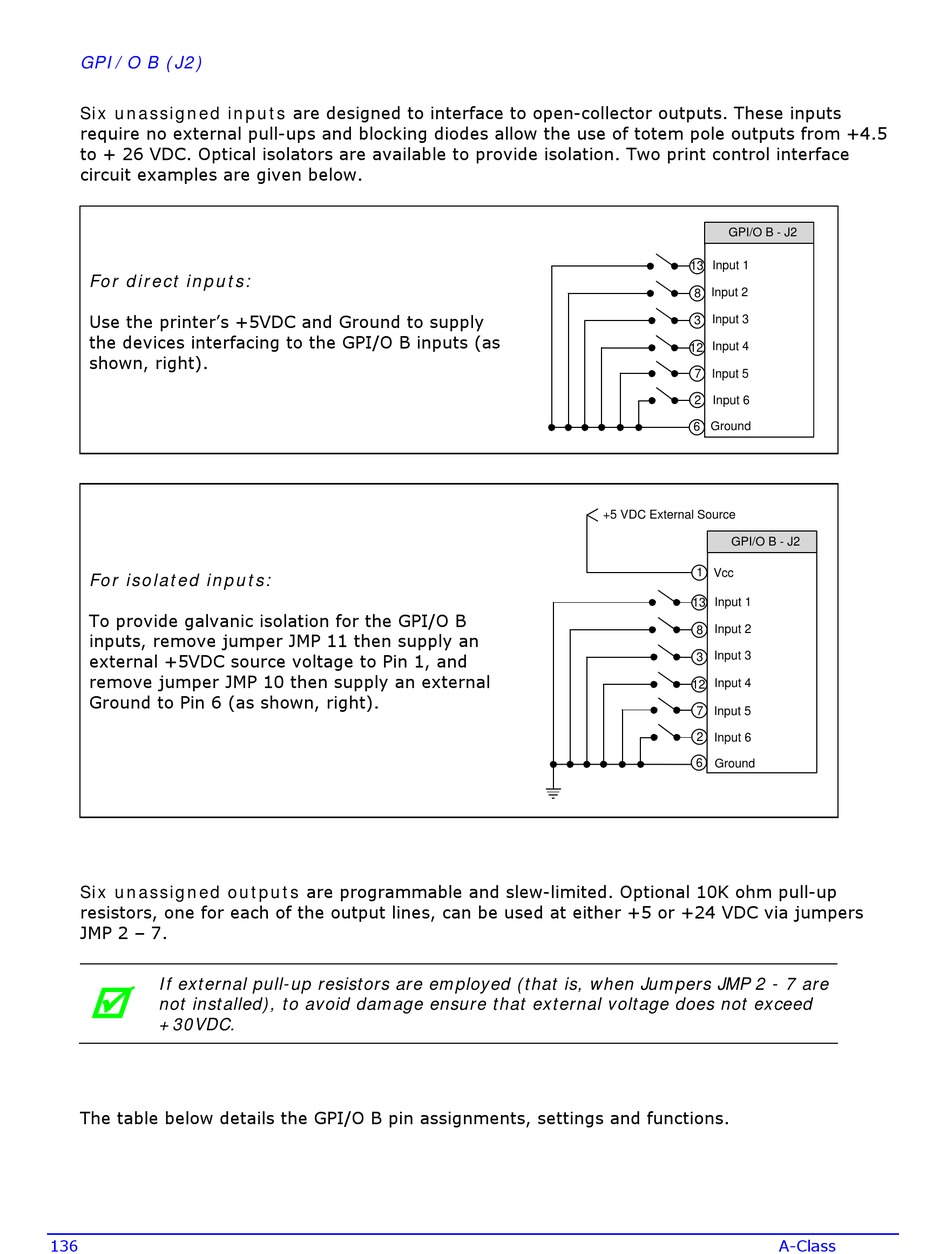

GPI/O B (J2)
Six unassigned inputs are designed to interface to open-collector outputs. These inputs
require no external pull-ups and blocking diodes allow the use of totem pole outputs from +4.5
to + 26 VDC. Optical isolators are available to provide isolation. Two print control interface
circuit examples are given below.
For direct inputs:
Use the printer's +5VDC and Ground to supply
the devices interfacing to the GPI/O B inputs (as
shown, right).
For isolated inputs:
To provide galvanic isolation for the GPI/O B
inputs, remove jumper JMP 11 then supply an
external +5VDC source voltage to Pin 1, and
remove jumper JMP 10 then supply an external
Ground to Pin 6 (as shown, right).
Six unassigned outputs are programmable and slew-limited. Optional 10K ohm pull-up
resistors, one for each of the output lines, can be used at either +5 or +24 VDC via jumpers
JMP 2 – 7.
If external pull-up resistors are employed (that is, when Jumpers JMP 2 - 7 are

not installed), to avoid damage ensure that external voltage does not exceed
+30VDC.
The table below details the GPI/O B pin assignments, settings and functions.
136
GPI/O B - J2
13 Input 1
Input 2
8
Input 3
3
Input 4
12
7 Input 5
2 Input 6
Ground
6
+5 VDC External Source
GPI/O B - J2
1 Vcc
Input 1
13
Input 2
8
Input 3
3
Input 4
12
7 Input 5
2 Input 6
6 Ground
