Removing Ribbon - Datamax a-class mark ii Operator's Manual

Ribbon
Take-Up Hub
Head
Lift Lever
Upper Idler
Ribbon Shield
CSO Ribbon

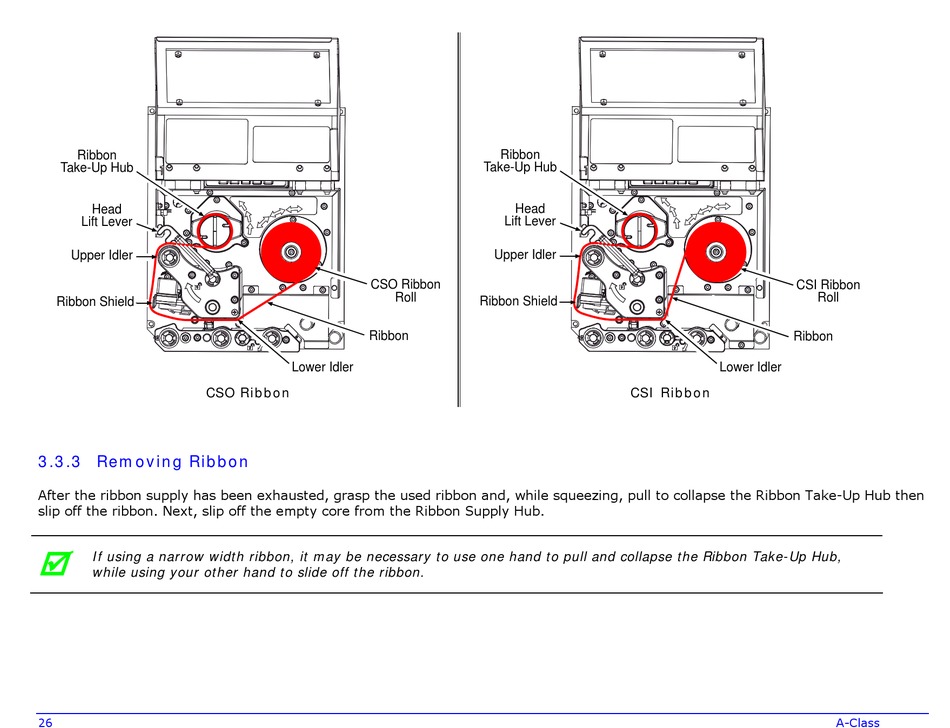

3.3.3 Removing Ribbon

After the ribbon supply has been exhausted, grasp the used ribbon and, while squeezing, pull to collapse the Ribbon Take-Up Hub then
slip off the ribbon. Next, slip off the empty core from the Ribbon Supply Hub.

If using a narrow width ribbon, it may be necessary to use one hand to pull and collapse the Ribbon Take-Up Hub,
while using your other hand to slide off the ribbon.
