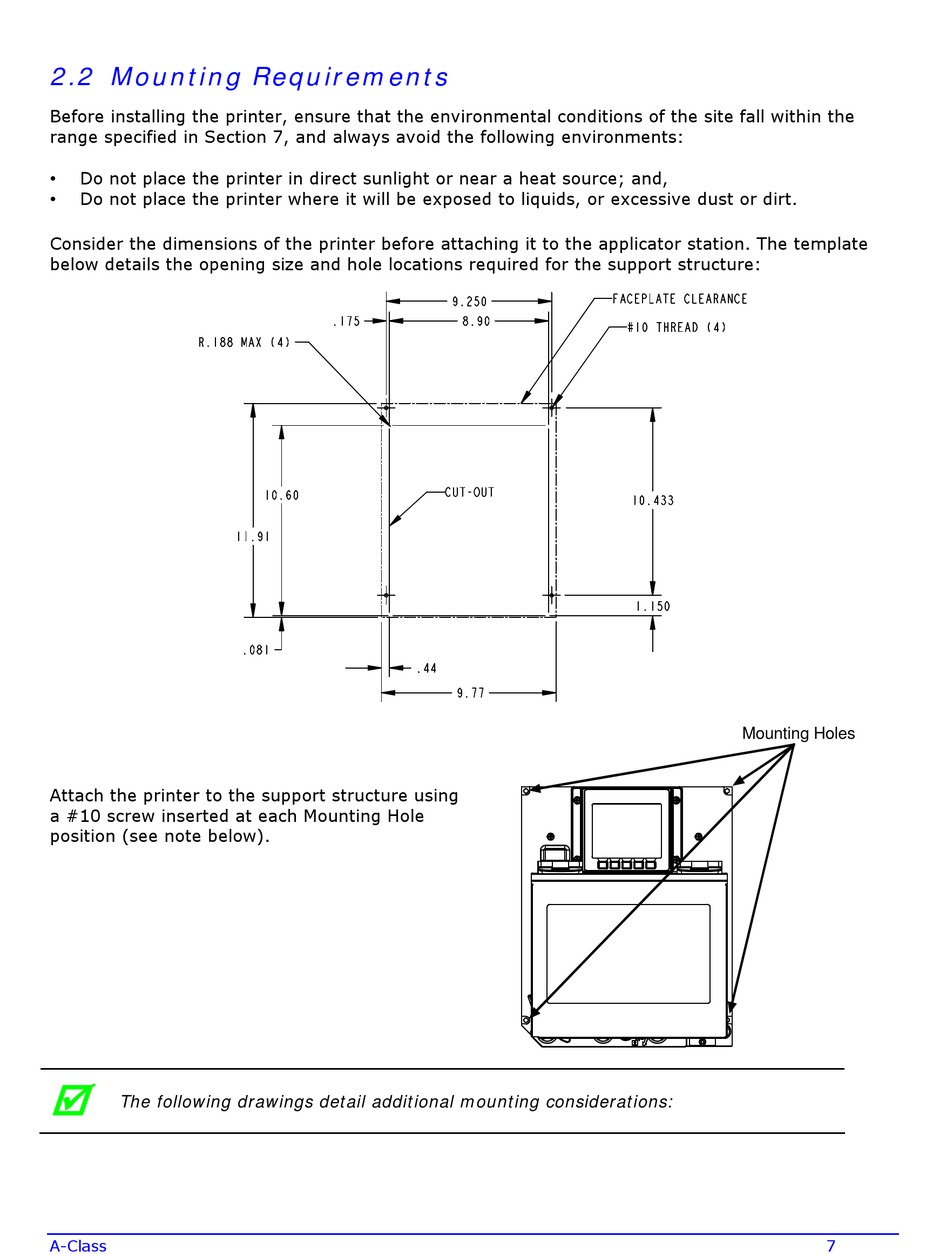

2.2 Mounting Requirements

Before installing the printer, ensure that the environmental conditions of the site fall within the
range specified in Section 7, and always avoid the following environments:
Do not place the printer in direct sunlight or near a heat source; and,
•
Do not place the printer where it will be exposed to liquids, or excessive dust or dirt.
•
Consider the dimensions of the printer before attaching it to the applicator station. The template
below details the opening size and hole locations required for the support structure:
Attach the printer to the support structure using
a #10 screw inserted at each Mounting Hole
position (see note below).

The following drawings detail additional mounting considerations:
A-Class
Mounting Holes
7
