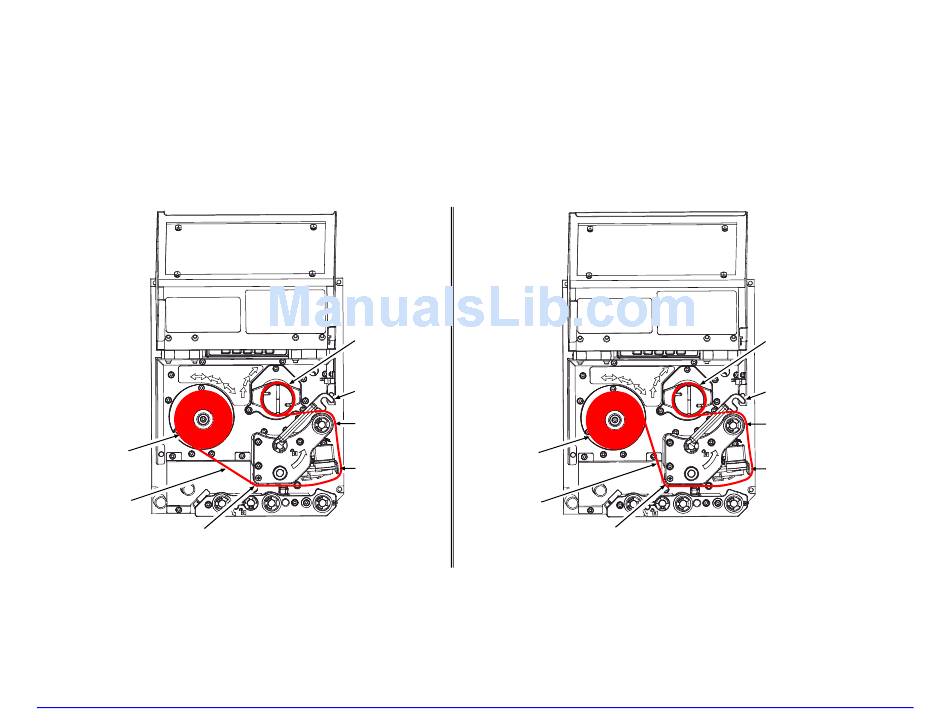

2. With the Head Lift Lever raised, route the Ribbon under the Lower Idler, over the Ribbon Shield and Upper Idler, and then
clockwise around to the Ribbon Take-Up Hub.
3. Rotate the Ribbon Take-Up Hub clockwise several times to secure the Ribbon.
4. Lower and lock the Head Lift Lever then close the access cover.
CSO Ribbon
Roll
Ribbon
Lower Idler
CSO Ribbon
24
Ribbon
Take-Up Hub
Head
Lift Lever
Upper Idler
CSI Ribbon
Roll
Ribbon Shield
Ribbon
Lower Idler
CSI Ribbon
Ribbon
Take-Up Hub
Head
Lift Lever
Upper Idler
Ribbon Shield
