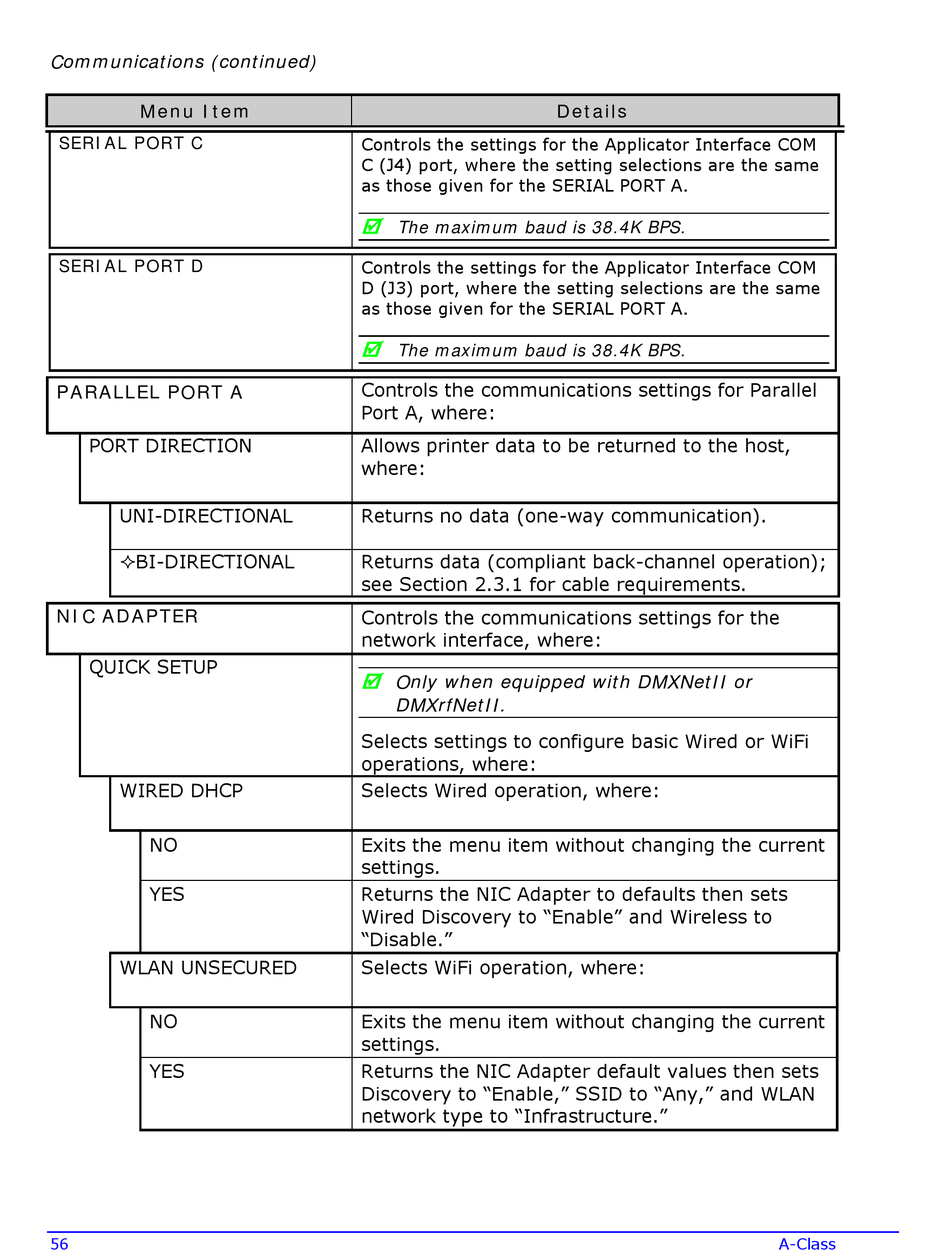

Datamax a-class mark ii Operator's Manual page 66

Communications (continued)
Menu Item
SERIAL PORT C
SERIAL PORT D
PARALLEL PORT A
PORT DIRECTION
UNI-DIRECTIONAL
BI-DIRECTIONAL
NIC ADAPTER
QUICK SETUP
WIRED DHCP
NO
YES
WLAN UNSECURED
NO
YES
56
Controls the settings for the Applicator Interface COM
C (J4) port, where the setting selections are the same
as those given for the SERIAL PORT A.

The maximum baud is 38.4K BPS.
Controls the settings for the Applicator Interface COM
D (J3) port, where the setting selections are the same
as those given for the SERIAL PORT A.

The maximum baud is 38.4K BPS.
Controls the communications settings for Parallel
Port A, where:
Allows printer data to be returned to the host,
where:
Returns no data (one-way communication).
Returns data (compliant back-channel operation);
see Section 2.3.1 for cable requirements.
Controls the communications settings for the
network interface, where:

Only when equipped with DMXNetII or
DMXrfNetII.
Selects settings to configure basic Wired or WiFi
operations, where:
Selects Wired operation, where:
Exits the menu item without changing the current
settings.
Returns the NIC Adapter to defaults then sets
Wired Discovery to "Enable" and Wireless to
"Disable."
Selects WiFi operation, where:
Exits the menu item without changing the current
settings.
Returns the NIC Adapter default values then sets
Discovery to "Enable," SSID to "Any," and WLAN
network type to "Infrastructure."
